Chamberlain RSL12VDC - Page 38

37
APPENDIX
STEP 6 continued...
SOLAR PANEL(S)

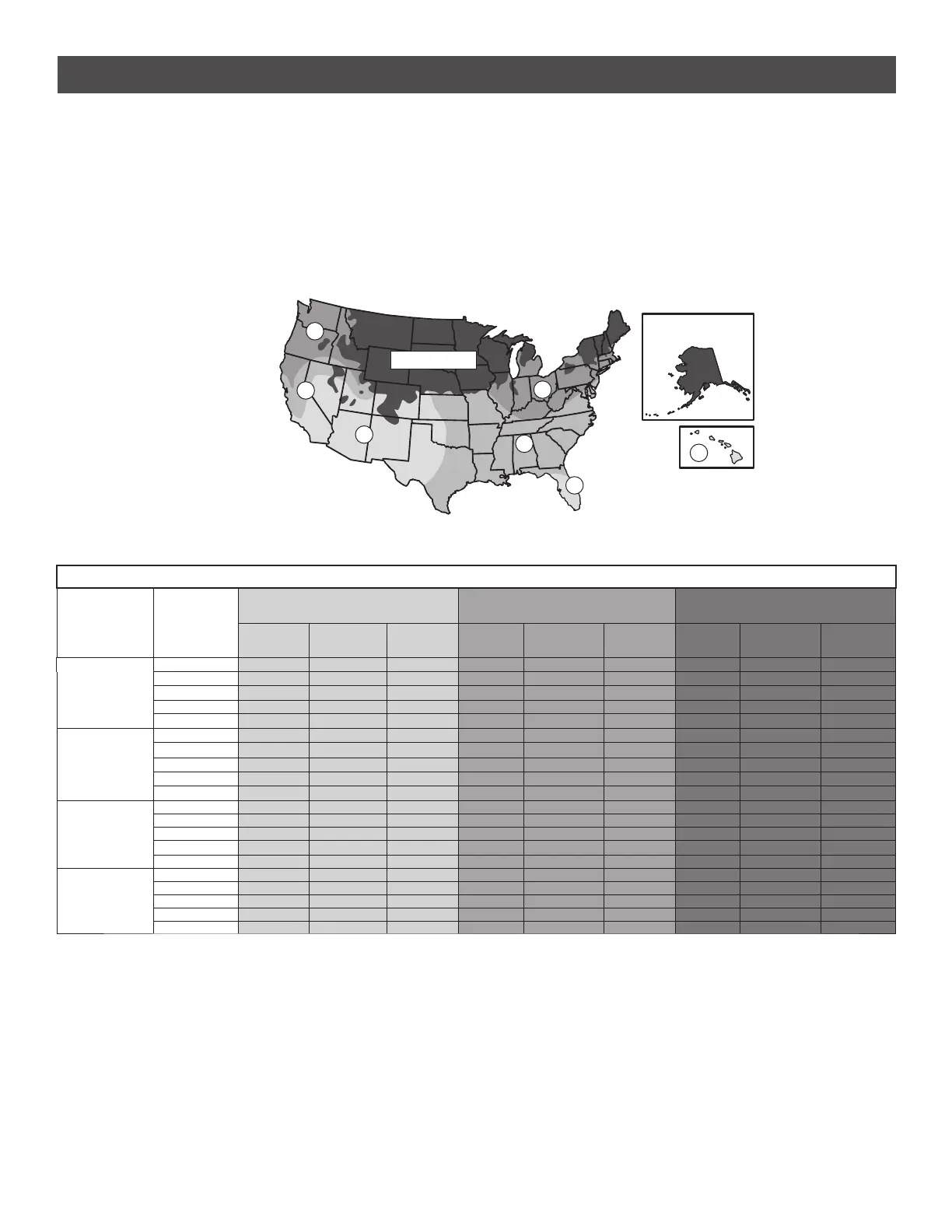

SOLAR USAGE GUIDE
NOT AVAILABLE
NOT AVAILABLE
1
1
1
2
3
3
2
SOLAR ZONES
All numbers are estimates. Actual results may vary.
SOLAR GATE CYCLES PER DAY
BATTERY
CURRENT DRAW
(mA)
ZONE 1
(6 Hrs sunlight/day)
ZONE 2
(4 Hrs Sunlight/day)
ZONE 3
(2 Hrs Sunlight/day)
7AH battery Two 7AH
batteries
33AH battery 7AH battery Two 7AH
batteries
33AH battery 7AH battery Two 7AH
batteries
33AH battery
5W SOLAR PANEL
6 15 16 16 n/a n/a n/a n/a n/a n/a
25 10 11 11 n/a n/a n/a n/a n/a n/a
30 n/a n/a 10 n/a n/a n/a n/a n/a n/a
40 n/a n/a n/a n/a n/a n/a n/a n/a n/a
60 n/a n/a n/a n/a n/a n/a n/a n/a n/a
10W SOLAR PANEL
6 33 36 38 19 22 23 n/a n/a n/a
25 27 31 33 15 17 18 n/a n/a n/a
30 26 29 31 13 15 17 n/a n/a n/a
50 21 24 26 n/a 11 12 n/a n/a n/a
100 n/a 11 13 n/a n/a n/a n/a n/a n/a
20W SOLAR PANEL
6 50 50 5037 47 5015 19 22
25 50 50 50 32 41 47 11 15 17
30 50 50 50 30 40 45 n/a 13 16
100 33 48 50 12 20 25 n/a n/a n/a
200 n/a 20 27 n/a n/a n/a n/a n/a n/a
30W SOLAR PANEL
6 50 50 5046 50 5019 29 35
25 50 50 50 40 50 50 14 24 30
30 50 50 50 39 50 50 13 23 28
100 47 50 50 20 41 50 n/a n/a 10
200 19 50 50 n/a 14 24 n/a n/a n/a
