25
All control wiring used to connect external devices to Class 2 circuits of the operator must be (QPTZ) Power-Limited Circuit Cables, Type CL2, CL2P,
CL2R, or CL2X or other cable with equivalent or better electrical, mechanical, and flammability ratings.

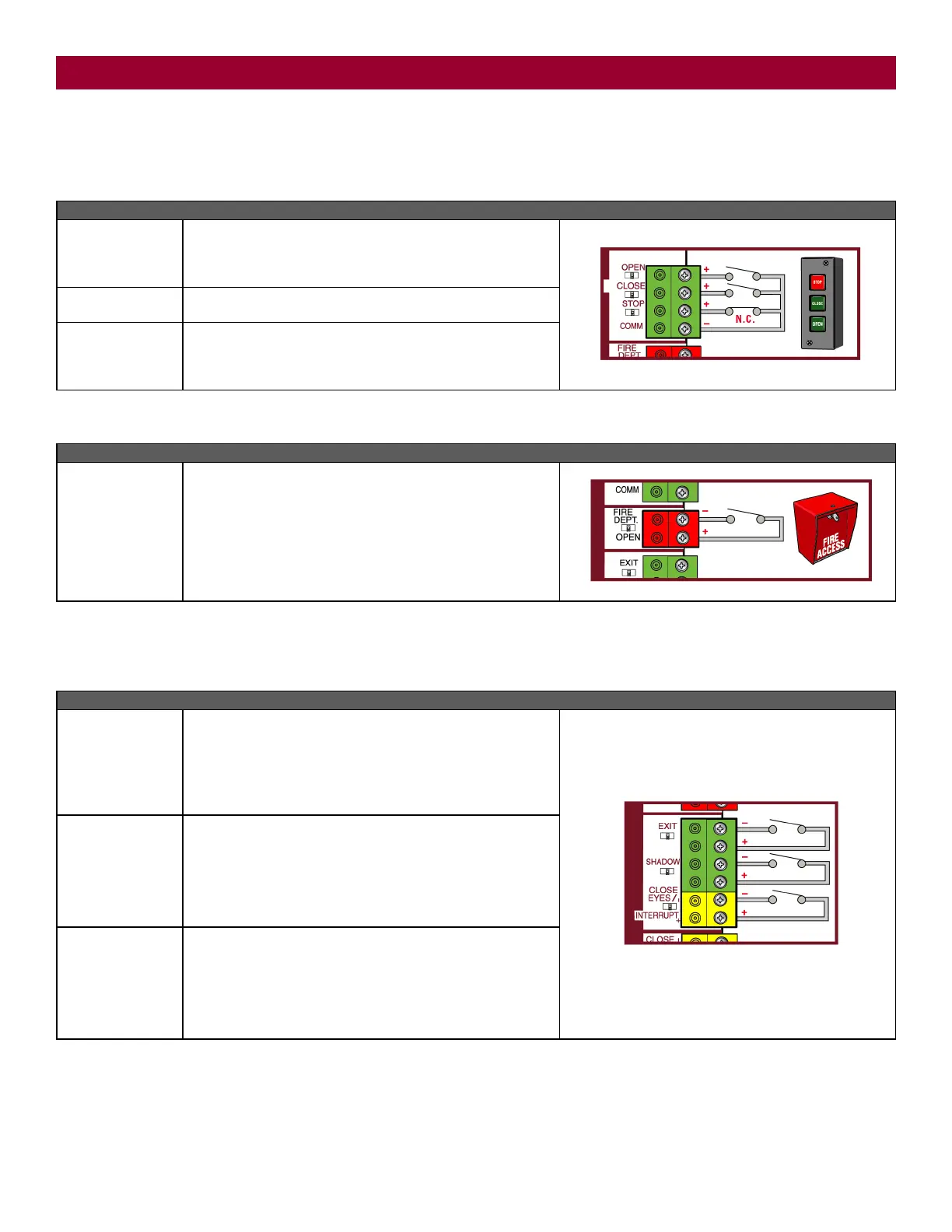

Three Button Control Station
TERMINALS FUNCTION WIRING EXAMPLE
OPEN and COMM Opens a closed gate. Hard open (maintained switch overrides
external safeties and resets alarm condition). If maintained, pauses
Timer-to-Close at OPEN limit. Opens a closing gate and holds open
an open gate (within line-of-sight).
CLOSE and COMM Closes an open gate. Hard close (maintained switch overrides
external safeties and resets alarm condition within line-of-sight)
STOP and COMM Stops a moving gate. Hard stop (maintained switch overrides Open
and Close commands and resets alarm condition). If maintained,
cancels Timer-to-Close at OPEN limit. Overrides Open and Close
commands (within line-of-sight).
Fire Department
TERMINALS FUNCTION WIRING EXAMPLE
FIRE DEPT (-) and
OPEN (+)
FIRE DEPT and OPEN terminals act as a hard open. Maintained
input overrides (ignores) external safeties (photoelectric sensor and
edge), pauses Timer-to-Close. Momentary input logic as single
button control and safeties remain active, re-enables Timer-to-
Close.
Loops
The Loop terminals are used for connecting loops and various control devices such as telephone entry keypads, vehicle probes, etc. Connect the accessory
to the terminals based on how the accessory should function.
TERMINALS FUNCTION WIRING EXAMPLE
EXIT and COM This input is a soft open command (maintained switch does not
override external safeties and does not reset alarm condition). Used
for exit probe, telephone entry, external exit loop detector, or any
device that would command the gate to open.
l Opens a closing gate and holds open an open gate, if
maintained, pauses Timer-to-Close at OPEN limit.
SHADOW and COM This input is used for external shadow loop detector when loop is
positioned under the swing of the gate.
l Holds open gate at open limit
l Only active when the gate is at the OPEN limit, disregarded at all
other times
l Pauses Timer-to-Close at OPEN limit
INTERRUPT and
COM
This input is used for photoelectric sensors and external interrupt
loop detector when loop is on the outside of the gate.
l Holds open gate at open limit
l Stops and reverses a closing gate to open limit
l Pauses Timer-to-Close at OPEN limit, activates quick close and
anti-tailgate features when enabled on the expansion board
WIRE ACCESSORIES TO CONTROL BOARD
To Next Page
