26

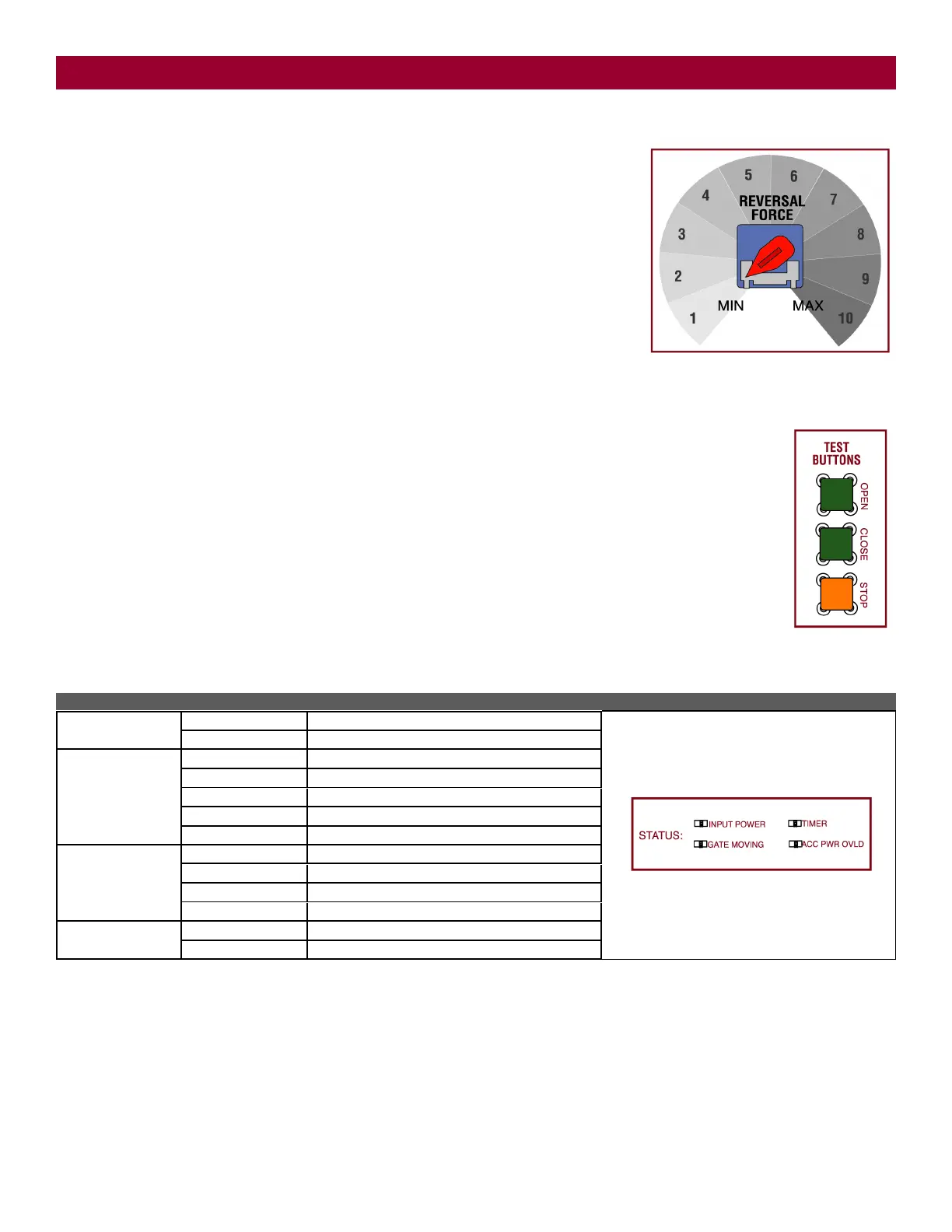

Reversal Force Dial
The REVERSAL FORCE dial adjusts the force. See the Adjustment section.
Settings 1-3: Fixed force settings (the force will not adjust due to gate wear or temperature
changes)
Settings 4-10: Automatically increase the force due to gate wear or temperature changes
Test Buttons
Used to operate the gate (OPEN, STOP and CLOSE). Also used to view the code history (refer to the Troubleshooting section).
Status LEDs
LED STATE DEFINITION
INPUT POWER
OFF OFF state
ON AC power available
TIMER
OFF The timer is disabled
ON The timer is enabled
1 blink/second The timer is running
2 blinks/second The timer is paused
8 blinks/second The timer is cancelled
GATE MOVING
OFF The gate is stopped
ON The gate is opening or closing
1 blink/second E1 (single entrapment)
8 blinks/second E2 (double entrapment)
ACC PWR OVLD
OFF Accessory power is okay
ON Accessory overload protector opened
CONTROL BOARD OVERVIEW
