Loops

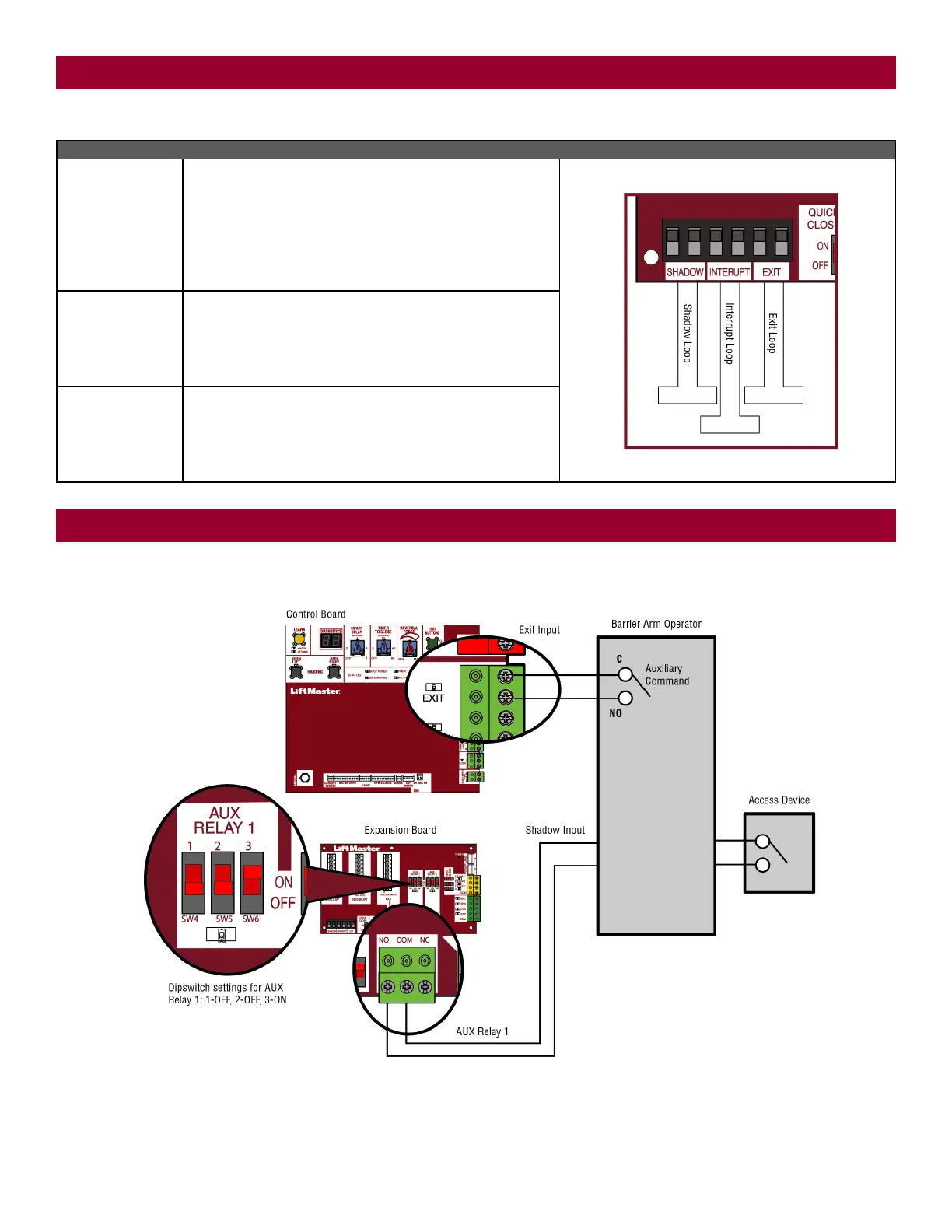

TERMINALS FUNCTION WIRING EXAMPLE
EXIT Loop wire connection for plug-in loop detector when loop is inside
secured area near gate.
l Open command - opens a closed gate
l Soft open (maintained switch does not override external safeties
and does not reset alarm condition)
l If maintained, pauses Timer-to-Close at OPEN limit
l Opens a closing gate and holds open an open gate
SHADOW Loop wire connection for plug-in loop detector when loop is
positioned under the gate.
l Holds open gate at open limit
l Disregarded during gate motion
l Pauses Timer-to-Close at Open Limit
INTERRUPT Loop wire connection for plug-in loop detector when loop is on the
outside of the gate.
l Holds open gate at open limit
l Stops and reverses a closing gate
l Pauses Timer-to-Close at Open Limit
ADDITIONAL WIRING
SAMS Wiring With Relays Not Energized
WIRE ACCESSORIES TO EXPANSION BOARD
To Next Page
