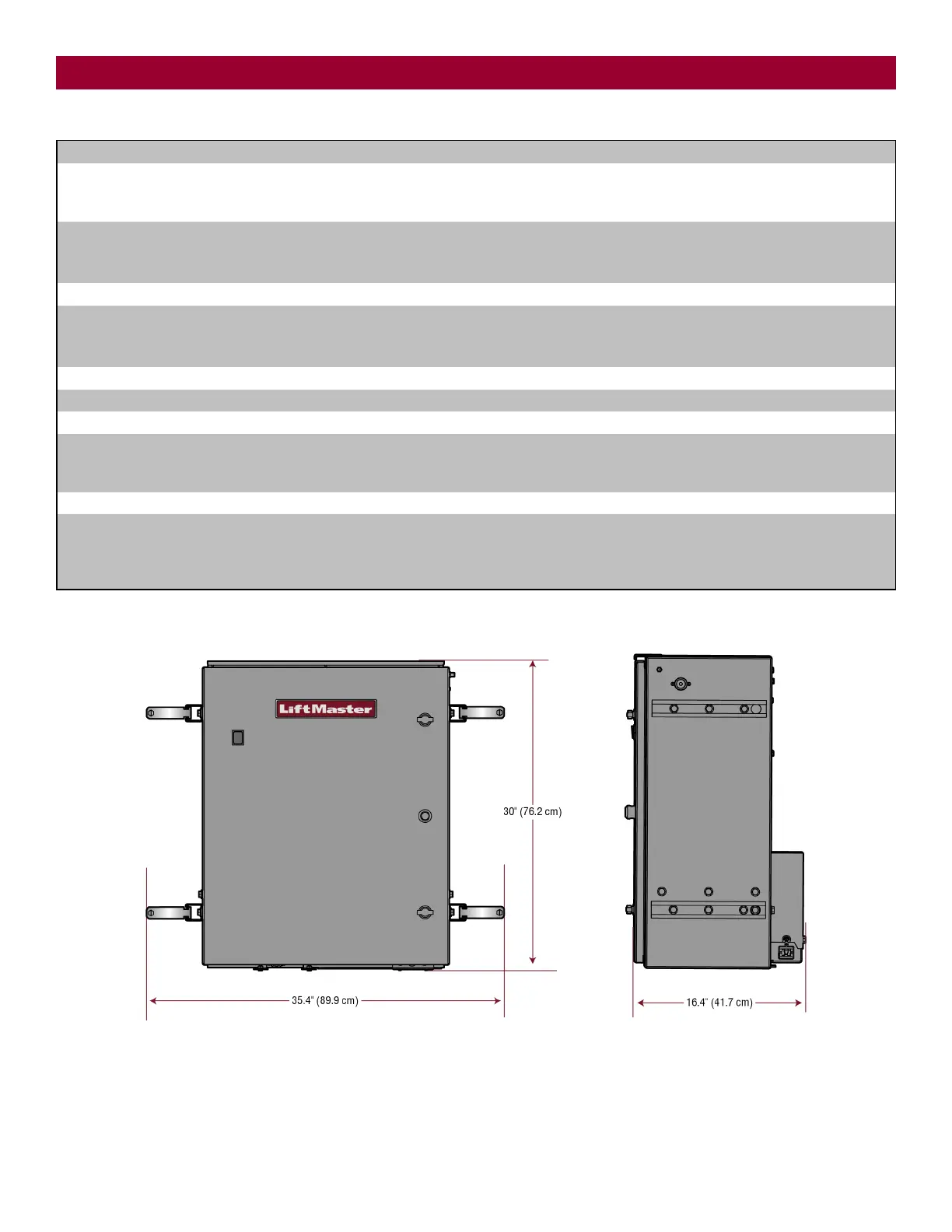

Operator Specifications
Usage Classification
Class I, II, III, & IV
Accessory Power Main Control Board: 24 Vdc, 500 mA max.
Terminal Strip: 24 Vdc, 2.2 A max. for 120/208-240 Vac, Single Phase and 208-240/480
Vac, Three Phase 24 Vac, 1.3 A max. for 575 Vac, Three Phase
Maximum Gate Weight 1 HP (1 Phase and 3 Phase): 1700 lbs.
1-1/2 HP (1 Phase): 2100 lbs.
2 HP (3 Phase): 2500 lbs.
Minimum Gate Travel Distance
4 feet (1.2 m)
Maximum Gate Travel Distance 1 HP (1 Phase and 3 Phase): Cantilever - 35 feet, OH Roller - 70 feet, V-Track - 50 feet
1-1/2 HP (1 Phase): Cantilever - 40 feet, OH Roller - 80 feet, V-Track - 55 feet
2 HP (3 Phase): Cantilever - 45 feet, OH Roller - 90 feet, V-Track - 60 feet
Maximum Gate Travel Speed
1 foot/second
Maximum Daily Cycle Rate
Continuous
Maximum Duty Cycle
Continuous
Operating Temperature
Without Heater: -20°C to 60°C (-4°F to 140°F)
With optional heater model HTRNB or model HTR460 (460V installations only): -40°C to
60°C (-40°F to 140°F)
Expansion Board
Provided
External Entrapment Protection Device Inputs (non-contact
and/or contact)
Main board - up to 2 close entrapment protection devices and 1 open entrapment
protection device.
Expansion board - up to 3 entrapment protection devices configurable to either close or
open and up to 4 edge sensors using wireless edge sensor kit model LMWEKITU .
