Main AC Supply
HP Phase Vac Full Load Amps
1/2
Single 120 Vac 11.2 Amps (17.2 Amps including Accessory Outlets)
208-240 Vac 5.6 Amps
Three
208-240 Vac 3.1 Amps
480 Vac 1.8 Amps
575 Vac 1.4 Amps
1
Single 120 Vac 16 Amps (22 Amps including Accessory Outlets)
208-240 Vac 8 Amps
Three
208-240 Vac 6 Amps
480 Vac 3 Amps
575 Vac 1.8 Amps
1-1/2 Single
120 Vac 20 Amps (26 Amps including Accessory Outlets)
208-240 Vac 10 Amps
Accessory Outlets are rated for 120 Vac, 6 Amps maximum. NOTE: The outlet is only available on models with 120 Vac input. The 120 Vac outlet is
automatically disabled when the operator is configured for any voltage other then 120 Vac.

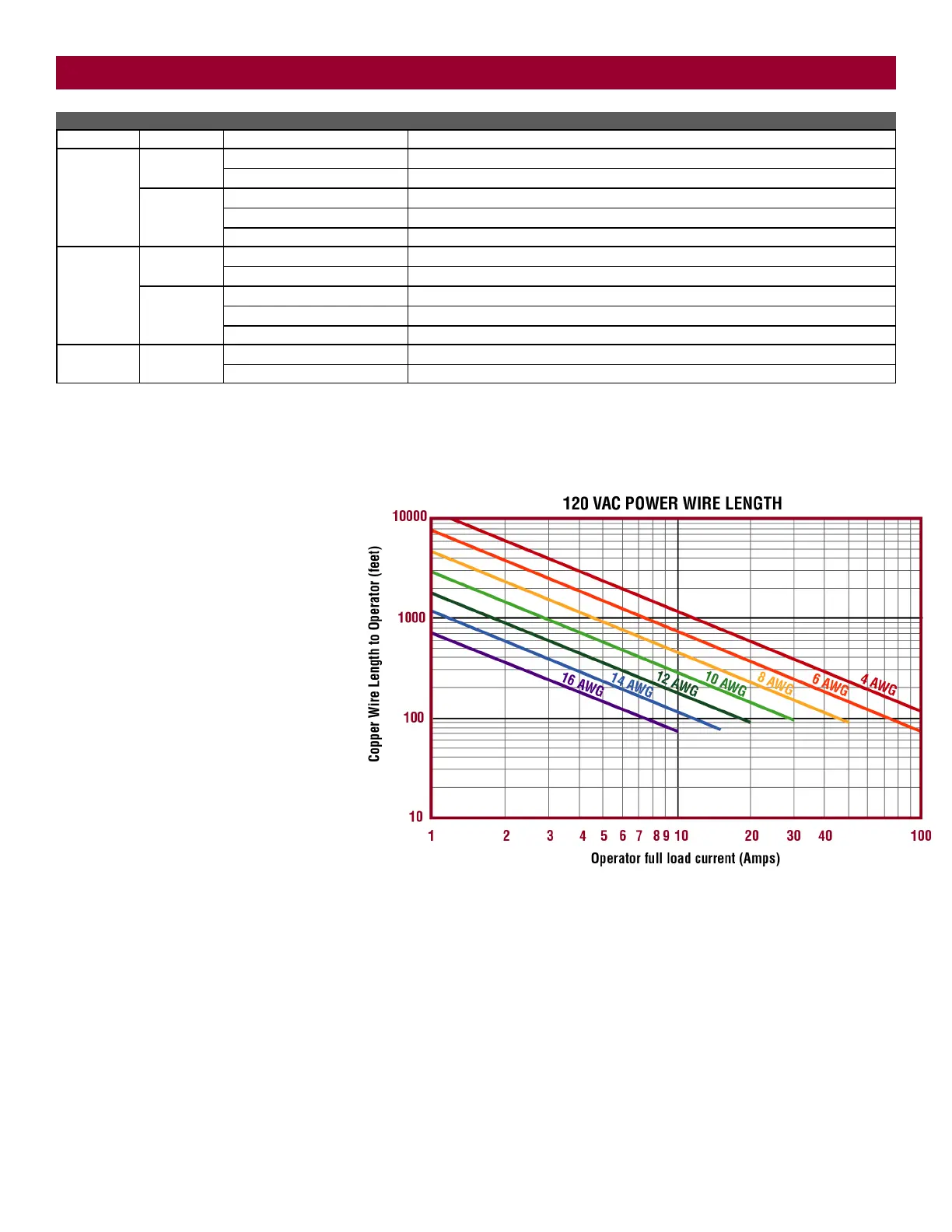

For 240 Vac multiply length by 2
For 480 Vac multiply length by 4
For 575 Vac multiply length by 4.8
NOTE: Chart is based on 5% voltage drop
