Champion 44 PRO - Page 43

35
Curtain rods hang on built-in hooks. Hang one long curtain at the entrance of the front
feed section and another long curtain at the exit end of the front feed section, Fig. 86.
MAKE SURE THE SHORT FLAPS FACE THE LOAD END.
1
SET
UP

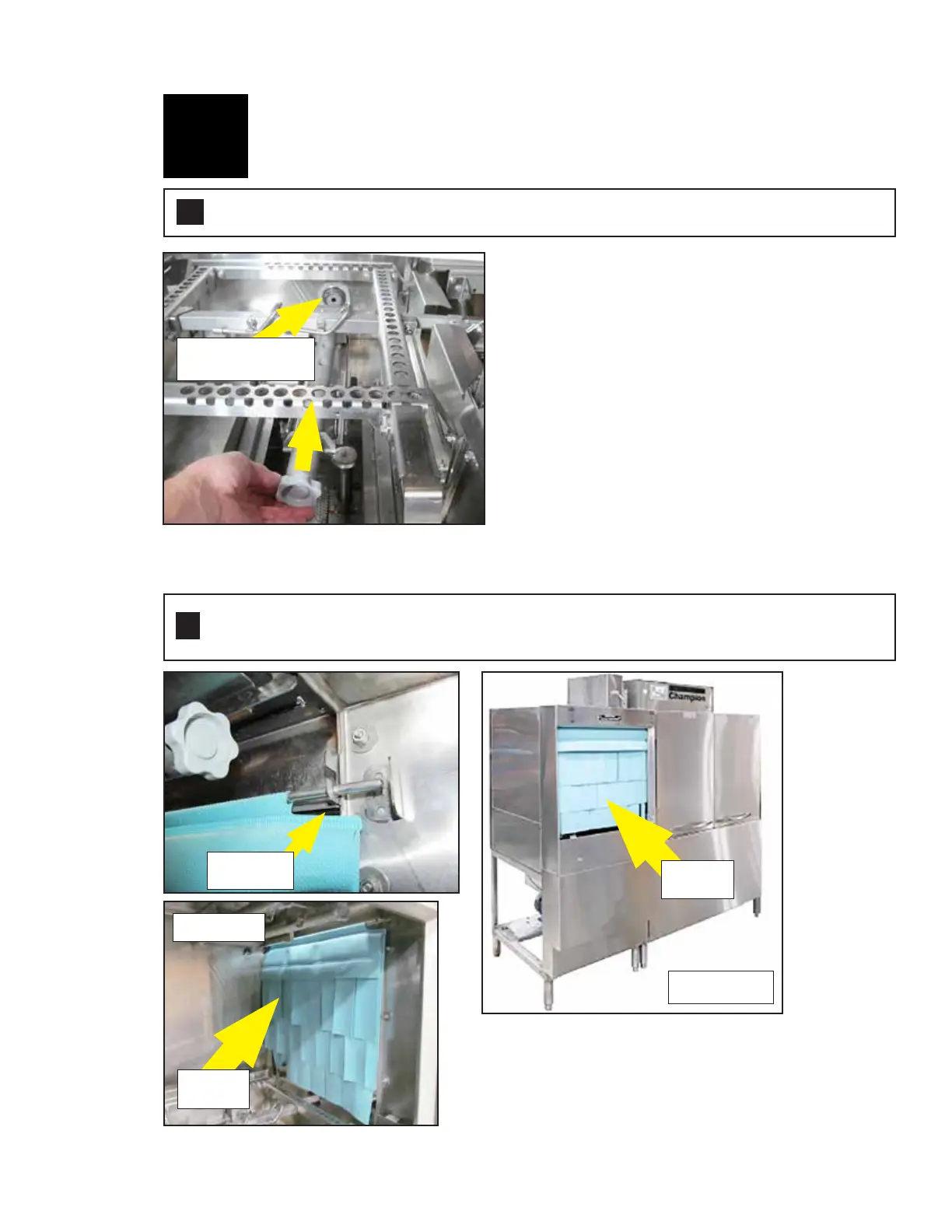

INSTALL LOWER SPRAY ARM —
Slide lower spray arm until it seats in the standpipe manifold. Push spray arm down to
lock in place, Fig. 85.
1
Fig. 85 - Install lower spray arm.
STANDPIPE
MANIFOLD
INSTALL CURTAINS —
SHORT
FLAPS
SHORT
FLAPS
CURTAIN
HOOK
INTERIOR
EXTERIOR
Fig. 86 -
Make sure short aps face the load end of machine.
Optional Front Feed - Setup
