Chandler Systems D15 - Page 33

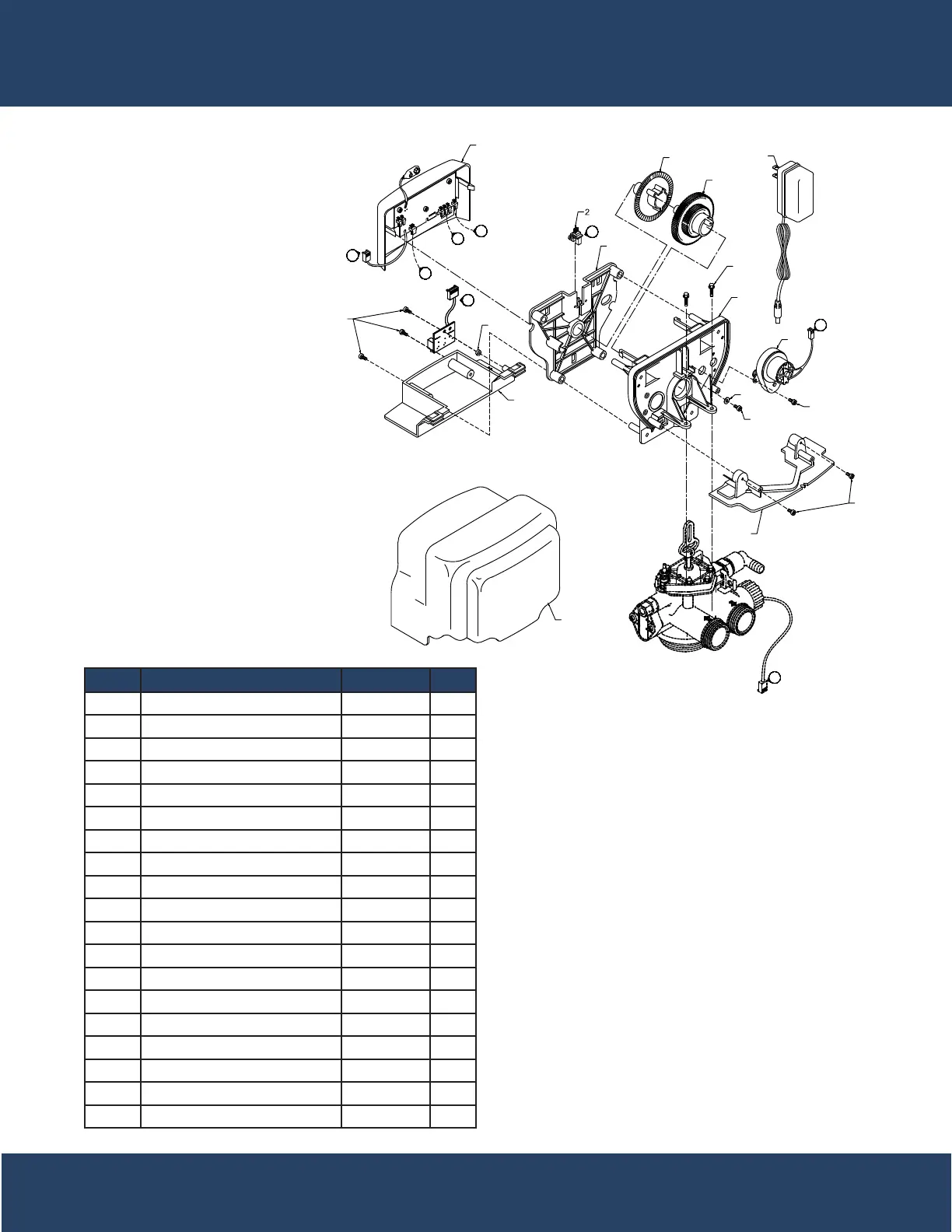

FILTER POWERHEAD
3
6
7
8
10
11
15
14
13
18
17
12
16
E
LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS
1
E
P
M
PP
M
9
F
4
5
F
REF DESCRIPTION PART NO. QTY
0 Power Head Assy. 21002X100 1
1 Filter Circuit Boad Assy. 21002X101 1
2 Encoder 20001X124 1
3 Front Plate 20001X004 1
4 Encoder Wheel 20001X007 1
5 Main Gear 21001X120 1
6 Power Supply 20001X125 1
7 Back Plate 20001X005 1
8 Lower Front Base For Cover 20111X002 1
9 Motor 20016X006 1
10 Lower Back Base for Cover 20111X003 1
11 Valve Cover 20111X000 1
12 Piston Screw 20001X003 1
13 Screw SC10 3
14 Screw SC9 2
15 6 X 1/2 Fenderwasher SST 20001X002 1
16 Washer Circuit Board 20111X014 1
17 Screw Motor SC2 1
21 Valve Hex Screw 20001X001 2
