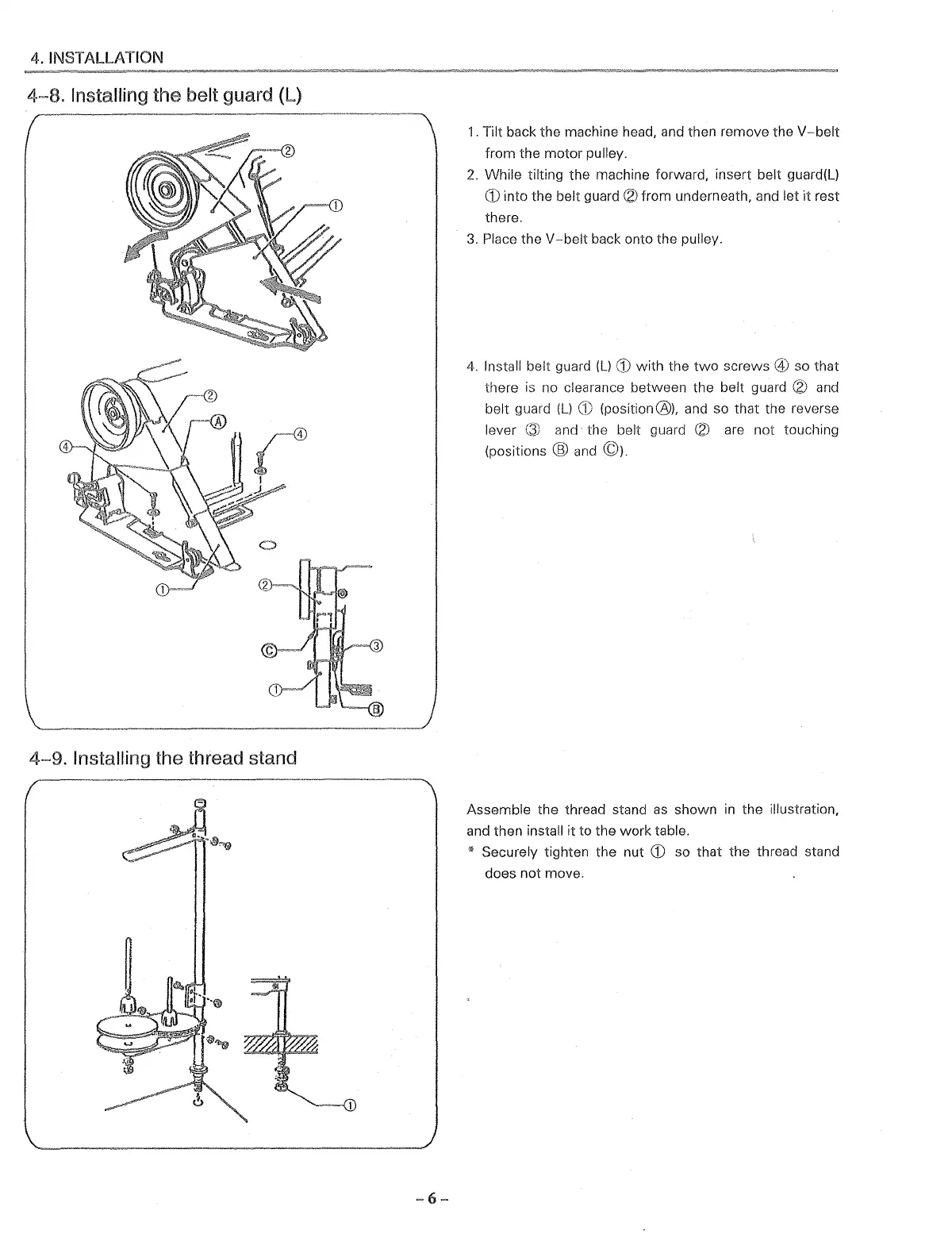

4. INSTALLATION
4~8.
Installing the belt guard (L)
4-9.
Installing the thread stand
1.
Tilt back the machine head, and then remove the
V-belt
from the
motor
pulley.
2.
While tilting the machine forward, insert belt guard(L)
G) into the belt guard
(2)
from underneath, and let
it
rest
there.
3.
Place the
V-belt
back onto the pulley.
4.
Install belt guard (L) G)
with
the
two
screws @ so that
there is no clearance between the
belt guard
(2)
and
belt guard (L)
G)
(position@), and so that the reverse
lever @ and the belt guard
(2)
are
not
touching
(positions
@ and ©).
Assemble the thread stand
as
shown
in
the illustration,
and then install
it
to the
work
table.
* Securely tighten the nut
CD
so
that
the thread stand
does not move.
