8.
STANDARD ADJUSTMENTS
3~4.

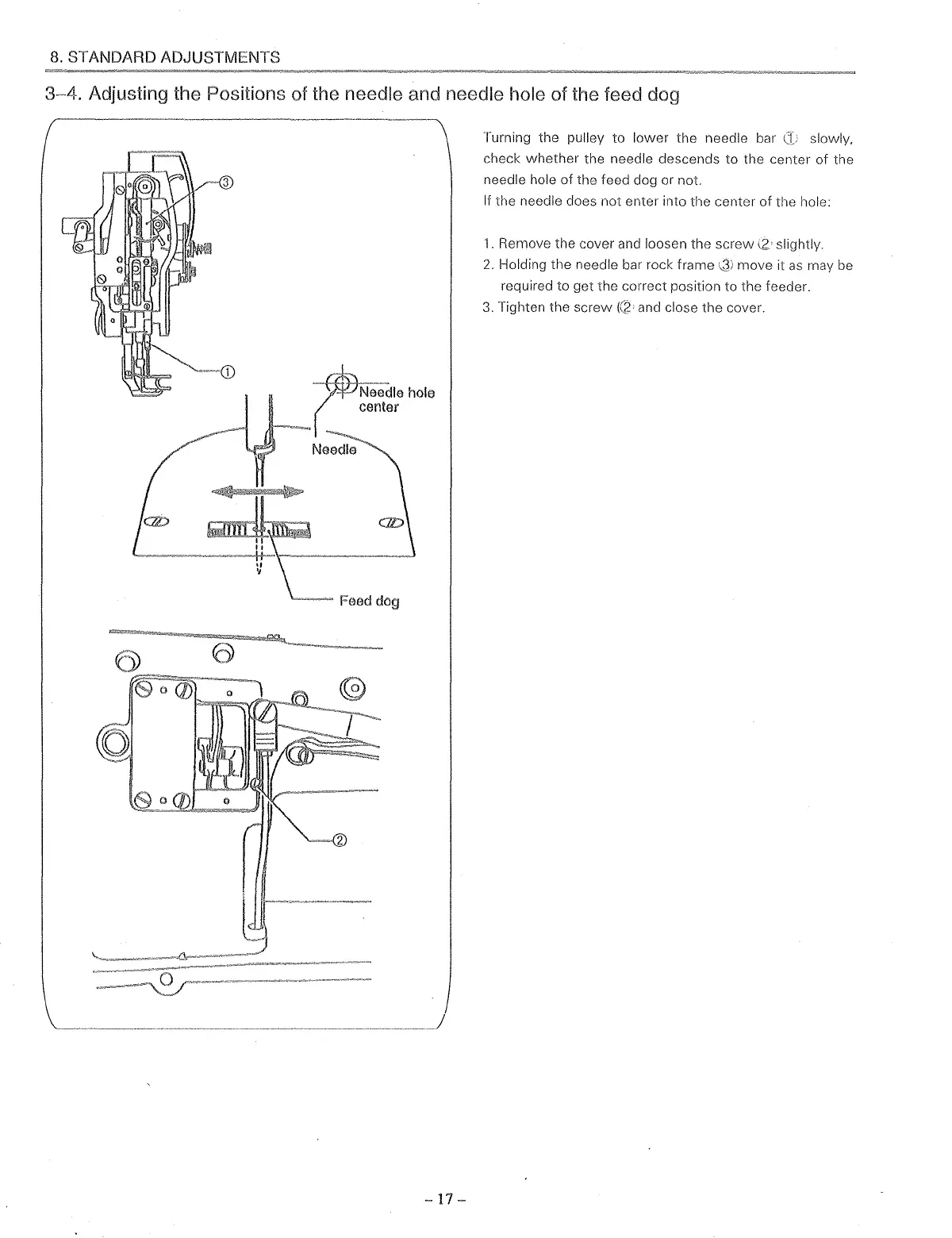

Adjusting the Positions of the needle and needle hole of the feed dog
eclle
hole
--
Needle
ter
-Feed
dog
-17-
Turning the pulley to lower the needle bar
slowly,
check whether the needle descends to the center of the
needle hole
of
the feed dog or not.
If the needle does not enter into the center
of
the hole:
1.
Remove the cover and loosen the screw
12.·
slightly.
2. Holding the needle bar rock frame
;Ji
move it
as
may
be
required to get the correct position to the feeder.
3.
Tighten the screw
((2
and close the cover.
