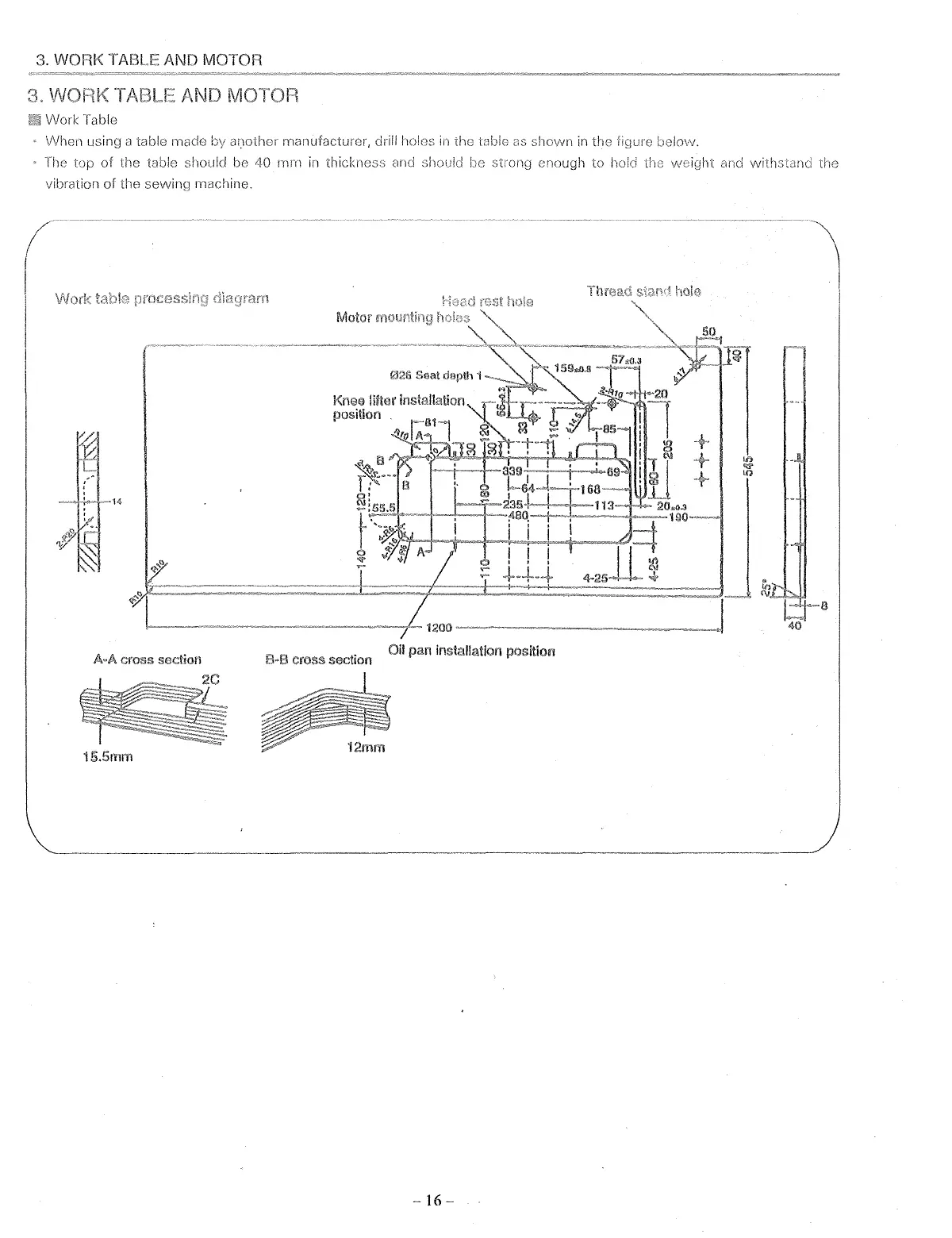

3.
WORK
TABLE
AND
fvlOTOR
3.
VVmk
Table
When
using
a
table
made
manufacturer,
drill
holes
in
the
table
21s
shown
in
the
below.
The
top
of
ihe
table
should
be
40
mn1
in
thickness
and
should
bG
strong
to
hold
the
and
withstand
the
vibration
of
the
sewing
machine.
Thread
.,
.,
.
Oil
pan
installation
position
"'""'
cross
section
15.5mm
-16-
From the library of: Superior Sewing Machine & Supply LLC
20
22
Table of Contents
Table of Contents
5
Main Parts Names
6
Specifications
6
Work Table and Motor
7
Installation
8
4-1: Installing the Rubber Hinge and the Corner Rubber
8
Installing the Oil Pan
8
3. Installing the Machine Head
8
Installing the Spool Pin
9
Installing the Knee Lifter Assembly
9
Installing the Belt
10
Installing the Bobbin Winder
10
Installing the Belt Guard
11
Installing the Thread Stand
11
Lubrication
12
Checking the Machine Pulley Rotating Direction
13
Preparation before Sewing
14
Installing the Needle
14
Removing the Bobbin Case
14
Winding the Lower Thread
15
Installing the Bobbin Case
15
Threading the Upper Thread
16
Adjusting the Stitch Length
16
Sewing
17
2. Backtacking
17
Thread Tension
18
Adjusting the Thread Tension
18
Adjusting the Presser Foot Pressure
18
Standard Adjustments
19
Adjusting the Thread Controller Spring
19
Adjusting the Height of the Feed Dog
20
Adjusting the Feed Dog Position (Longitudinal)
20
Adjusting the Positions of the Needle and Needle Hole of the Feed Dog
22
Adjusting the Timing the Needle with Feed
23
Adjusting the Height of the Needle Bar
23
Adjusting the Timing between the Needle and Hook
24
Adjusting the Clearance between Rotary Hook and Opener (Thread Release Finger)
25
9. Adjusting the Clearance between Feed Forked Connection and Feed Fork Collar
26
10. Adjusting the Height of the Presser Feet
26
S-·11. Adjusting the Presser Foot Movement Amount
27
Adjusting the Timing of the Vibrating Presser Foot
28
Adjusting the L0D Regulator
29
Safety Clutch Mechanism
30
Other manuals for Chandler 406RB-1
Instructions & Parts Book
50 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
