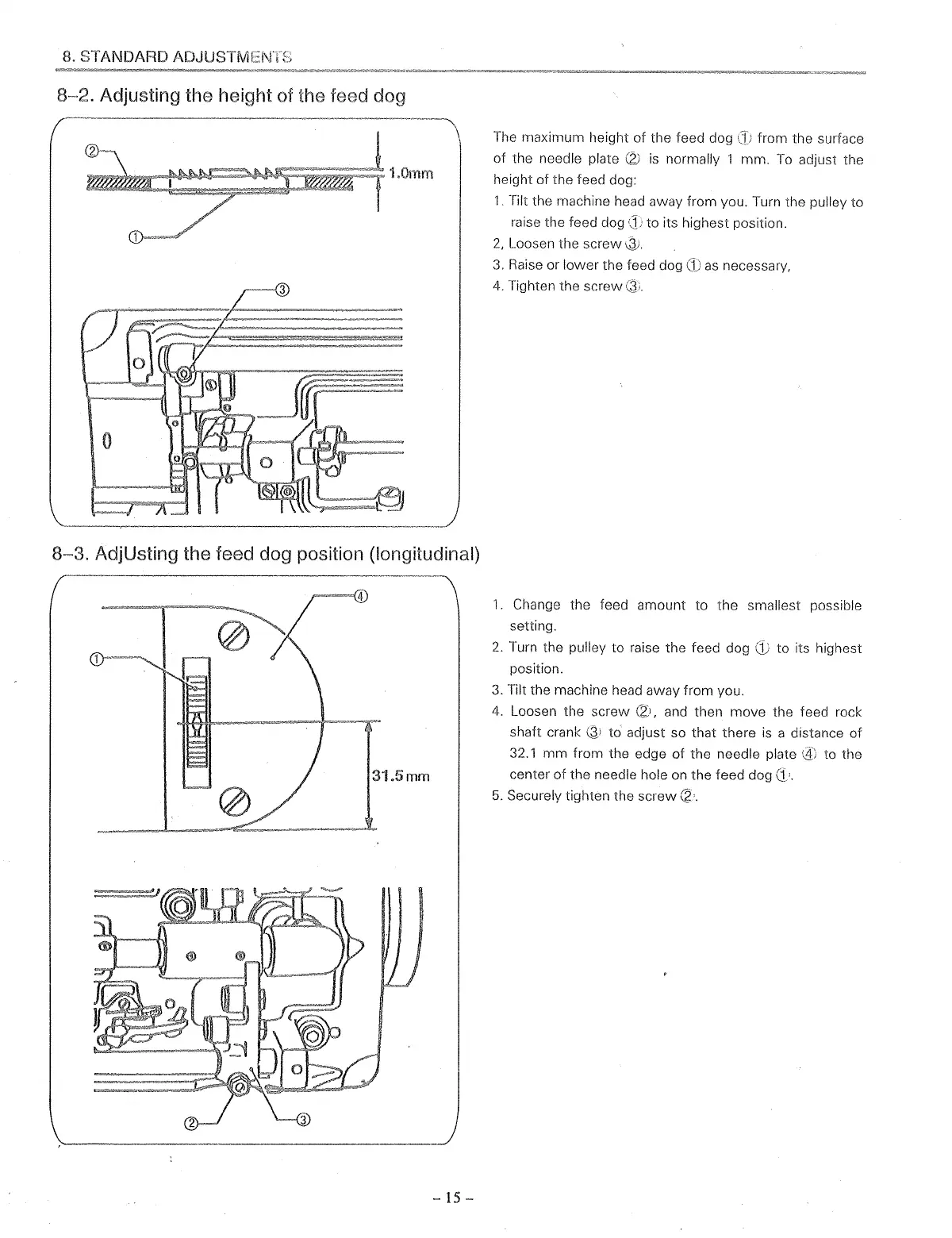

8. STANDARD
ADJUSTMENT~;
8~2.
Adjusting the height of the feed dog
8~3.
AdjUsting the feed dog position (longitudinal)
31.5mm
-
15-
The maximum height
of
the feed dog from the surface
of
the needle plate
(2)
is
normally 1 mm.
To
adjust the
height
of
the feed dog:
1.
Tilt the machine head away from you. Turn the pulley to
raise the feed dog to its highest position.
2,
Loosen the
screw~.
3.
Raise or lower the feed dog
CD
as
necessary,
4.
Tighten the
screw
Q
..
1.
Change the feed amount to the smallest possible
setting.
2.
Turn the pulley to raise the feed dog
position.
3.
Tilt the machine head away from you.
to its highest
4.
Loosen the screw (2), and then move the feed rock
shaft crank
~'
to
adjust so that there
is
a distance
of
32.1
mm
from the edge
of
the needle plate to the
center
of
the needle hole on the feed dog
(1•.
5.
Securely tighten the
screw
CZ·.
