8.
STANDAHD ADJUSTMENTS
8--1

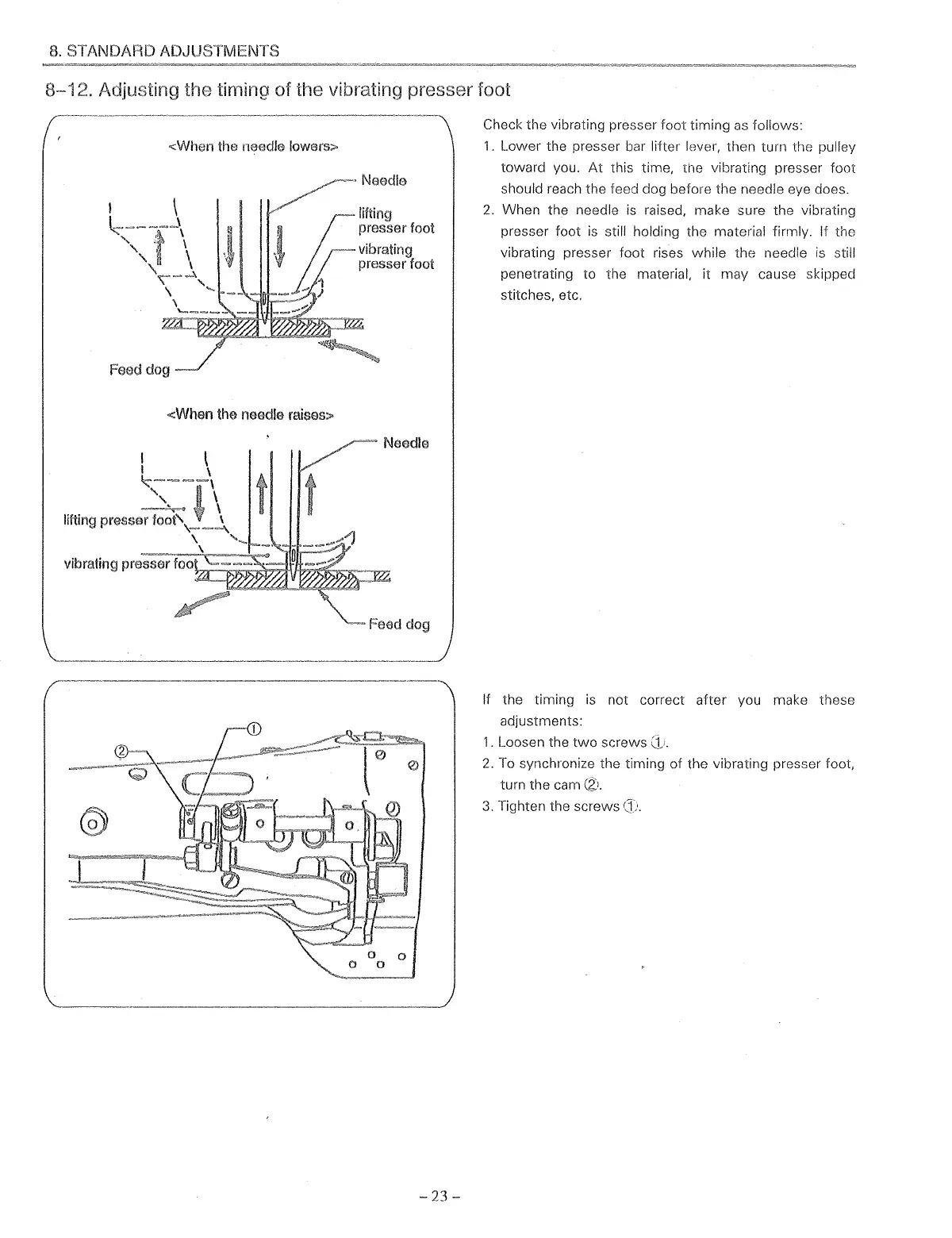

Adjusting the timing of the vibrating presser foot
<When the needle lowers>
Feed
dog
<When
the
needle
raises>
I l
I \
'-;-~~~~,
~~\
lifting presser
foot\--~
\ '-.._
\
Needle
Feed
dog
-23-
Check the vibrating presser
foot
timing
as
follows:
1.
Lower the presser bar lifter lever, then turn the pulley
toward you.
At
this time, tne vibrating presser foot
should reach the feed dog before the needle eye does.
2.
When the needle
is
raised, make sure the vibrating
presser foot
is
still holding the material firmly. If the
vibrating presser foot rises while
the needle
is
still
penetrating to the material, it may cause skipped
stitches, etc.
If the timing is not correct
after
you make these
adjustments:
1.
Loosen the
two
screws
G_.
..
2.
To synchronize the timing
of
the vibrating presser foot,
turn the cam
C:Z).
3.
Tighten the
screws():.
From the library of: Superior Sewing Machine & Supply LLC
