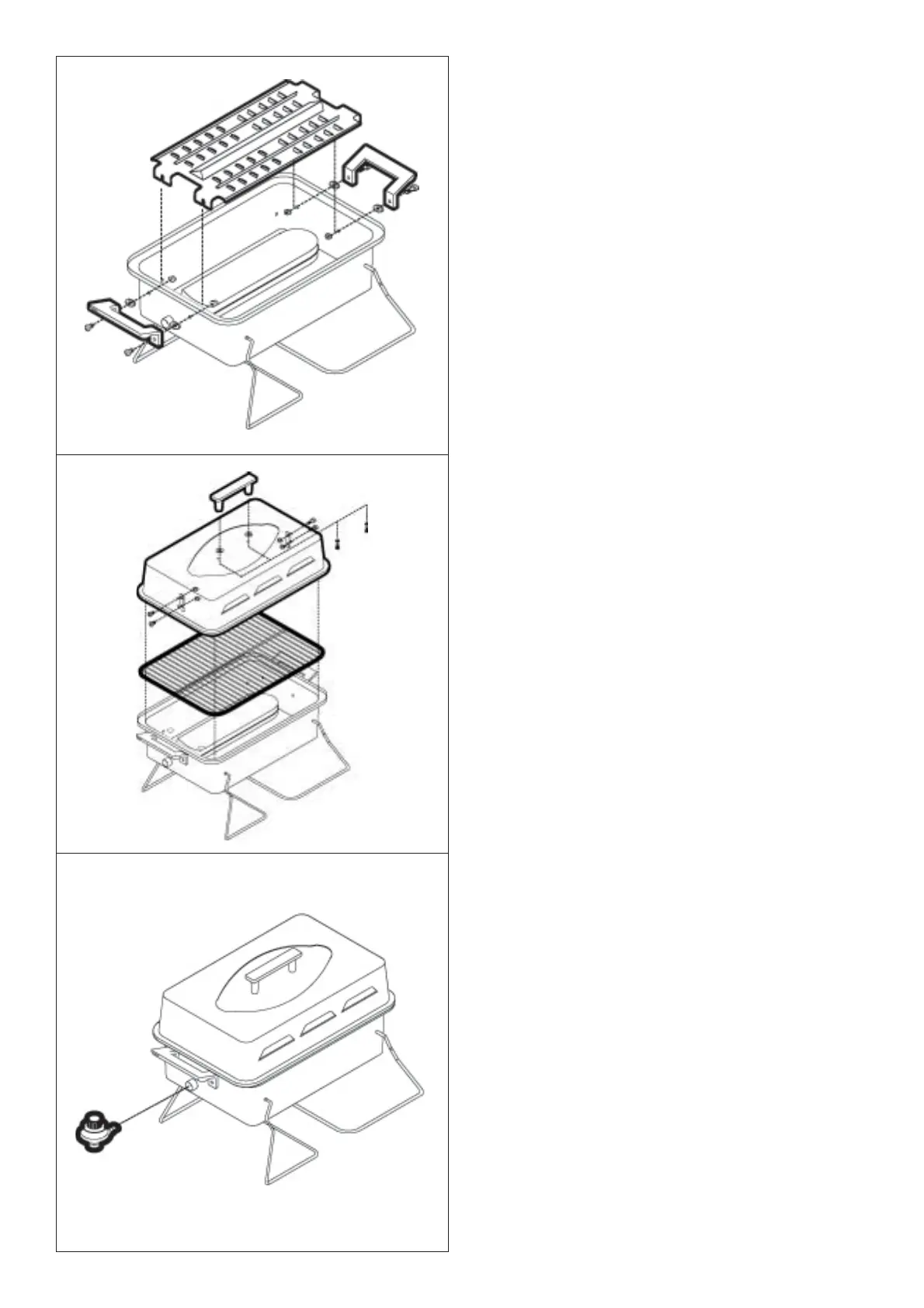

Loosely install handle brackets (9) with screws (15), spacers
(12) and nuts (14). Position heat plate (5) over screws so nuts
are on inside of plate flanges. Tighten screws.
3
From inside of lid, attach resin handle (1) using screws (13)
and washers (17). From inside of lid, install 2 hinge brackets
(3) using bolts (16), and nuts (14). Be sure slots in brackets
face the same direction.
4
Before assembly, inspect regulator for damage, dirt or debris
accumulation. Clean out if present.
With knob , insert regulator (10) into end of
burner.
Once regulator has burner, turn
regulator to lock in position with knob pointing up.
pointing down
Notch in regulator engage dimple in end of burner.
completely engaged
clockwise
must
5
