Assembly Instructions
Tools Needed
Pre-Assembly Checklist
• 5/16” open-ended wrench
• Slotted screwdriver
• Pliers
• Phillips® screwdriver
To ensure fast and easy assembly, follow the instructions
below in their proper sequence.
• Check all parts carefully and compare them to the parts list.
• Report any missing parts to the company from which you
purchased the product.

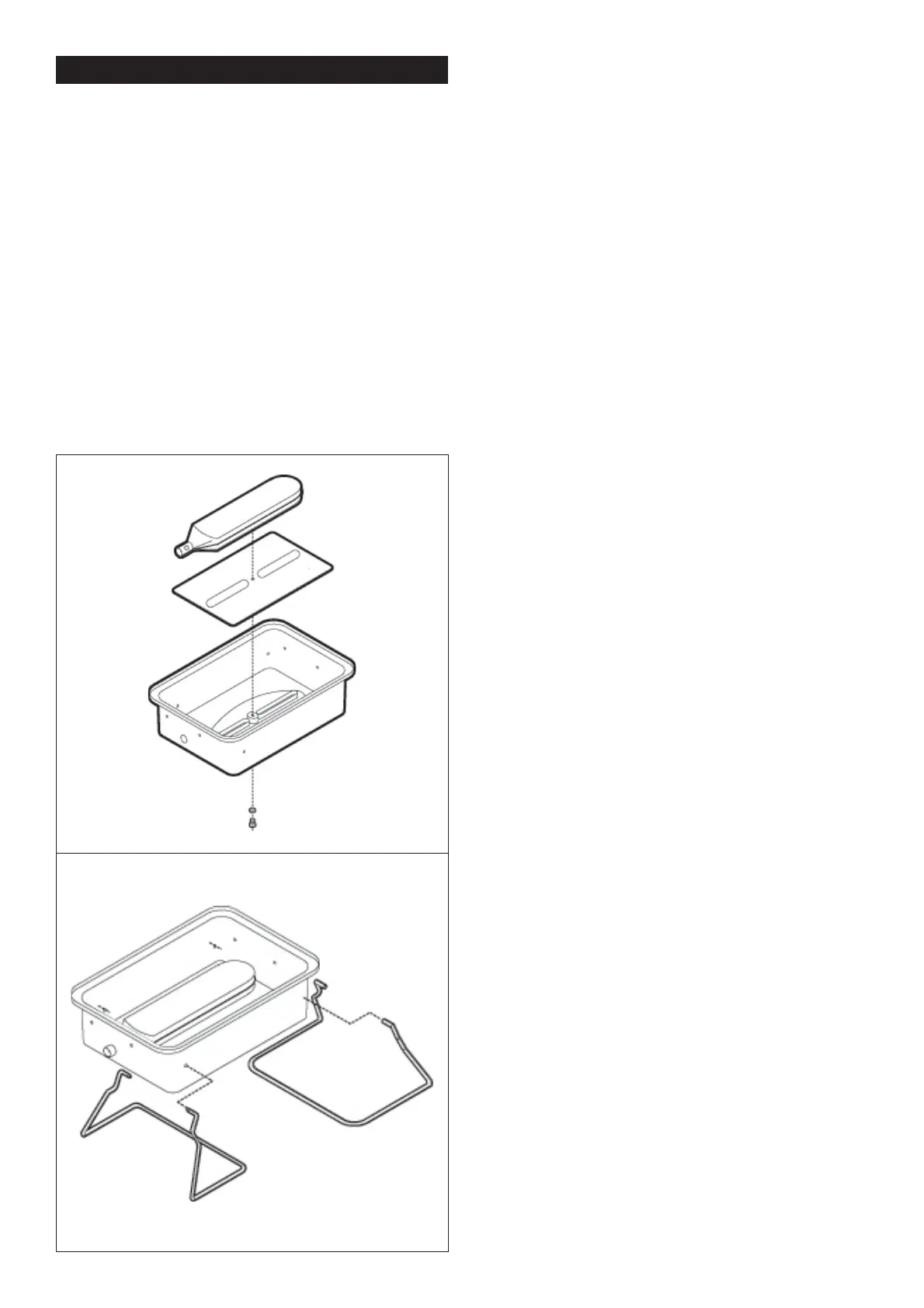

Place heat resistant shield (7) on bottom (8). Insert narrow
burner end through hole in base, push bottom stud (13)
through center hole.
1
Install legs (11) as shown through holes in base.
2
