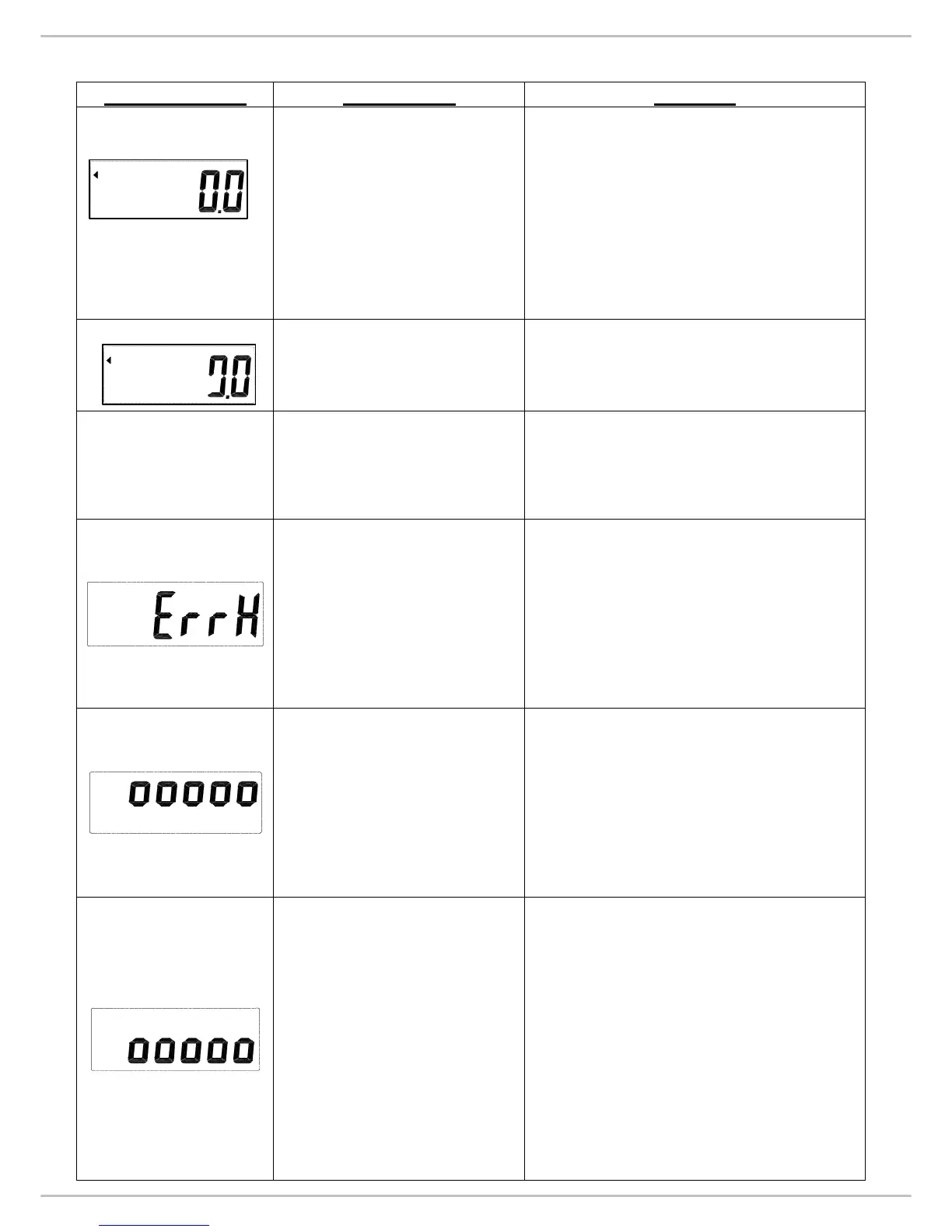

Error Message Description Solution
No weighing.
1. Check the load cell wires are
well and connected to the
correct points. (refer P.7)
2. Check resistan
(refer P.11)
3. If you change the load cell,
please re-calibrate the scale.
(refer P.17)
The scale shows non-
complete segments when
power on.
Check LCD pin. (refer P.8)
No Current.
1. Check parameters of RS232
interface and pin out. (refer P.19)
2. RS232 wire is disconnected.
(refer P.7)
Count error (too high)
1. Check the load cell wires are
well and connected to the
correct points. (refer P.7)
2. Check load cell for proper bridge
resistances. (refer P.11)
3. Replace load cell, then re-
calibration the scale. (refer
P.17)
Zero count is more than
calibration range (i.e.
10%) while power on.
1. Make sure that the scale
platform doesn’t have any kind
of weight on it.
2. Check the load cell wires are
well connected to the correct
points. (refer P.7)
Re-calibrate the scale. (refer
P.17)
Zero count is less than
calibration range (i.e.
10%) while power on.
1. Make sure that there is no
blocking object (like
paper/plastic sheet or heavy
layer of dirt/dust) between
upper platform of the scale and
the platform on which load cell
is fitted.
2. Check the load cell wires are
well connected to the correct
points. (refer P.7)
3. Re-calibrate the scale. (refer
P.17)
