Fleet Station Placement, Dual Cable

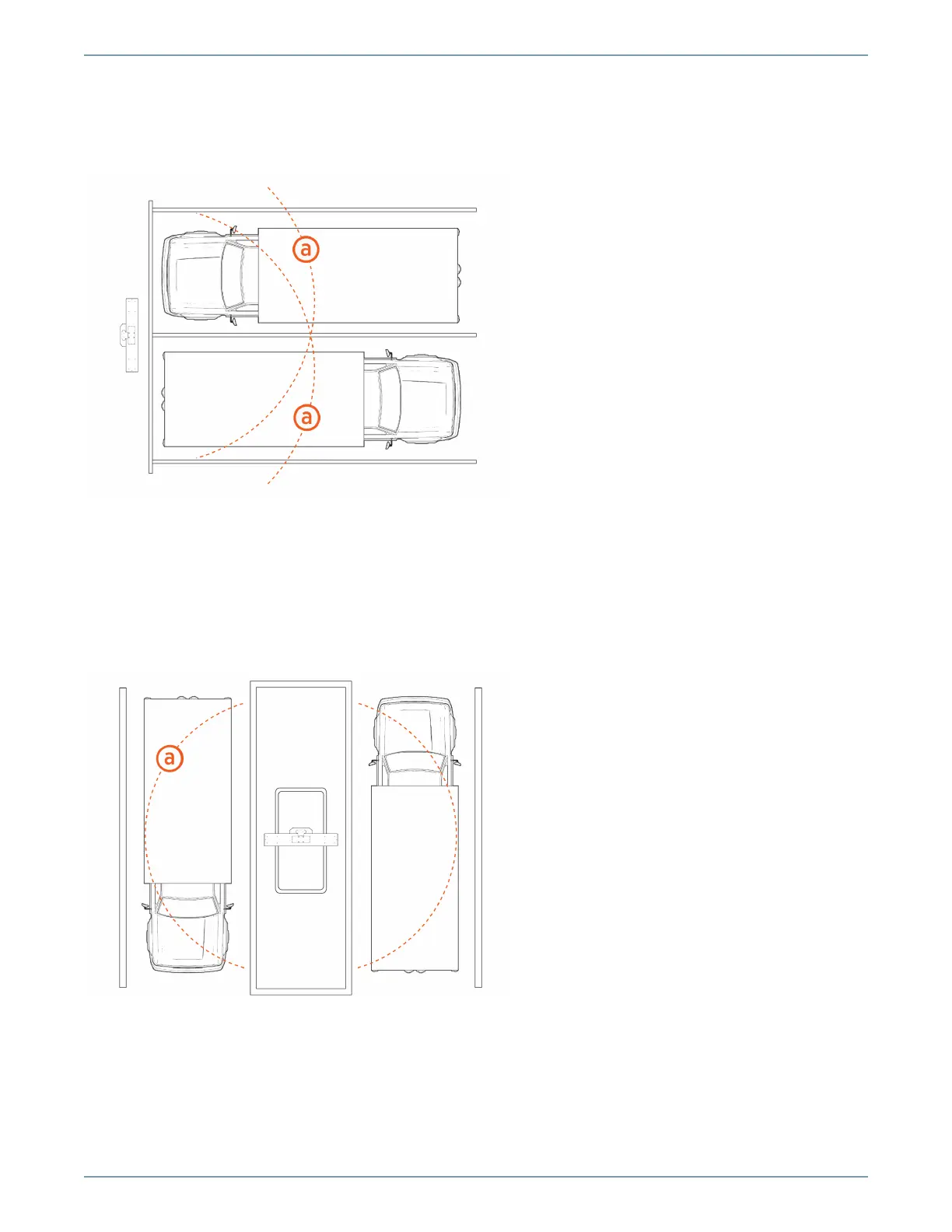

Center single stations with dual CCS1 cables between two parking spaces so that the cable runs down
either side of the parking space.
a. Cable reach radius: Approximately 5.49 m (18 ft), depending on longer cable management system
location
Note: Position single CCS1 cable stations at the top of parking spaces, as shown in the first commercial use
case above.
Island Station Placement With Longer Cable Management System
a. Cable reach radius: Approximately 5.49 m (18 ft), depending on longer cable management system
location
