ChargePoint Express 280 - Clearances

Clearances

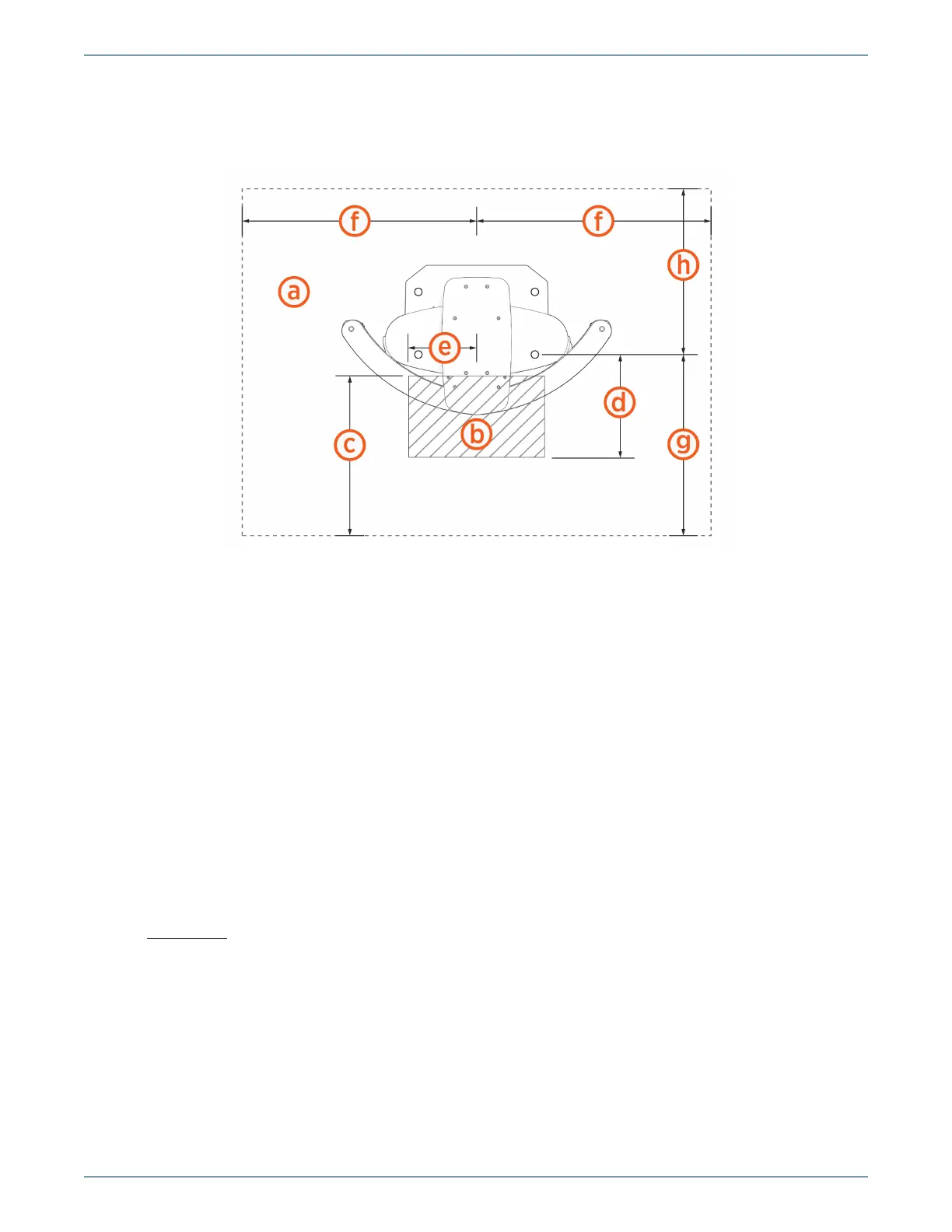

The Express 280 requires minimum functional and service clearances as shown below.
a. Service clearance of open space (not necessarily at system grade)
b. Power Module service clearance (at grade, measured from station front): 330.2 mm (1 ft 1 in)
c. Front service clearance (measured from station front): 609.6 mm (2 ft)
d. Power Module service clearance (measured from front anchor bolt): 383 mm (1 ft 3.1 in)
e. Power Module service clearance (measured from station center): 290 mm (11.4 in)
f. Side service clearance (measured from station center): 1072 mm (3 ft 6 in)
g. Front service clearance (measured from front anchor bolt): 510 mm (1 ft 8.1 in)
h. Rear service clearance (measured from front anchor bolt): 663 mm (2 ft 2.1 in)
Allow 26mm (1in) clearance above the station if installing a Cable Management Kit (CMK).
Note: Listed side clearances are the minimum required for operation and service. For paired charging
stations, the bend radius of the DC cable and conduit might require spacing them further apart.
Note: Rear clearance must be at grade level +/- 25 mm (1 in).
Refer to Ventilation and check local and regional code for any additional clearance requirements.
