RT115 Tier 3 - BACKHOE ATTACHMENT 133
BACKHOE CONTROL DESCRIPTIONS
RT115 Tier 3 - BACKHOE ATTACHMENT 133
BACKHOE CONTROL DESCRIPTIONS

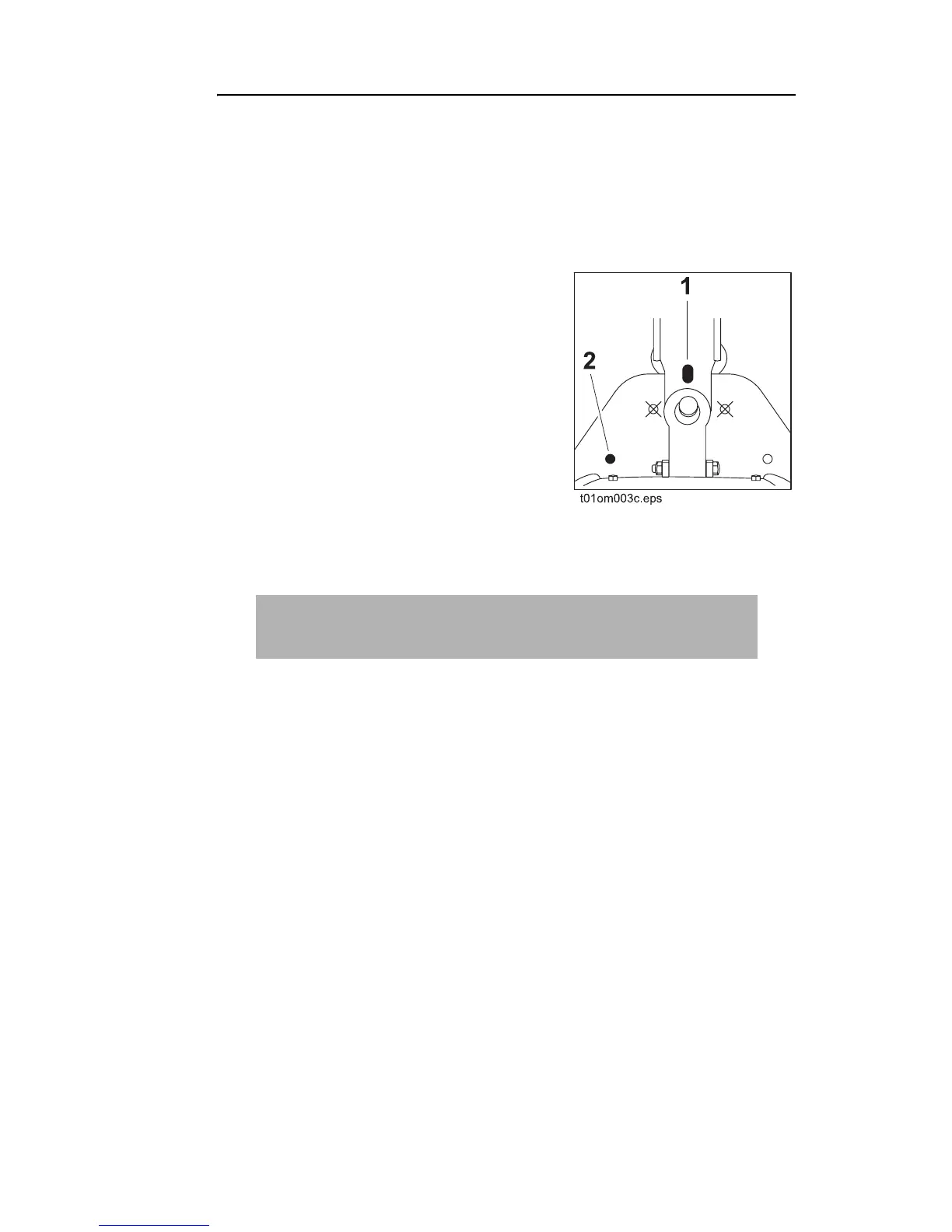

Swing Lock Pin
This pin locks boom from swinging right or left during transport.
To lock:
• First engage stow lock. See
“Stow Lock Control” later in this
chapter.
• Insert swing lock pin into hole (1).
To release:
• Remove swing lock pin and store
in hole (2).
• Release stow lock. See “Stow Lock Control” later in this
chapter.
IMPORTANT: Do not store in holes marked with an
“X.” Backhoe could swing into pin and destroy it.
Swing Lock Pin
This pin locks boom from swinging right or left during transport.
To lock:
• First engage stow lock. See
“Stow Lock Control” later in this
chapter.
• Insert swing lock pin into hole (1).
To release:
• Remove swing lock pin and store
in hole (2).
• Release stow lock. See “Stow Lock Control” later in this
chapter.
IMPORTANT: Do not store in holes marked with an
“X.” Backhoe could swing into pin and destroy it.
