RT115 Tier 3- BACKHOE ATTACHMENT

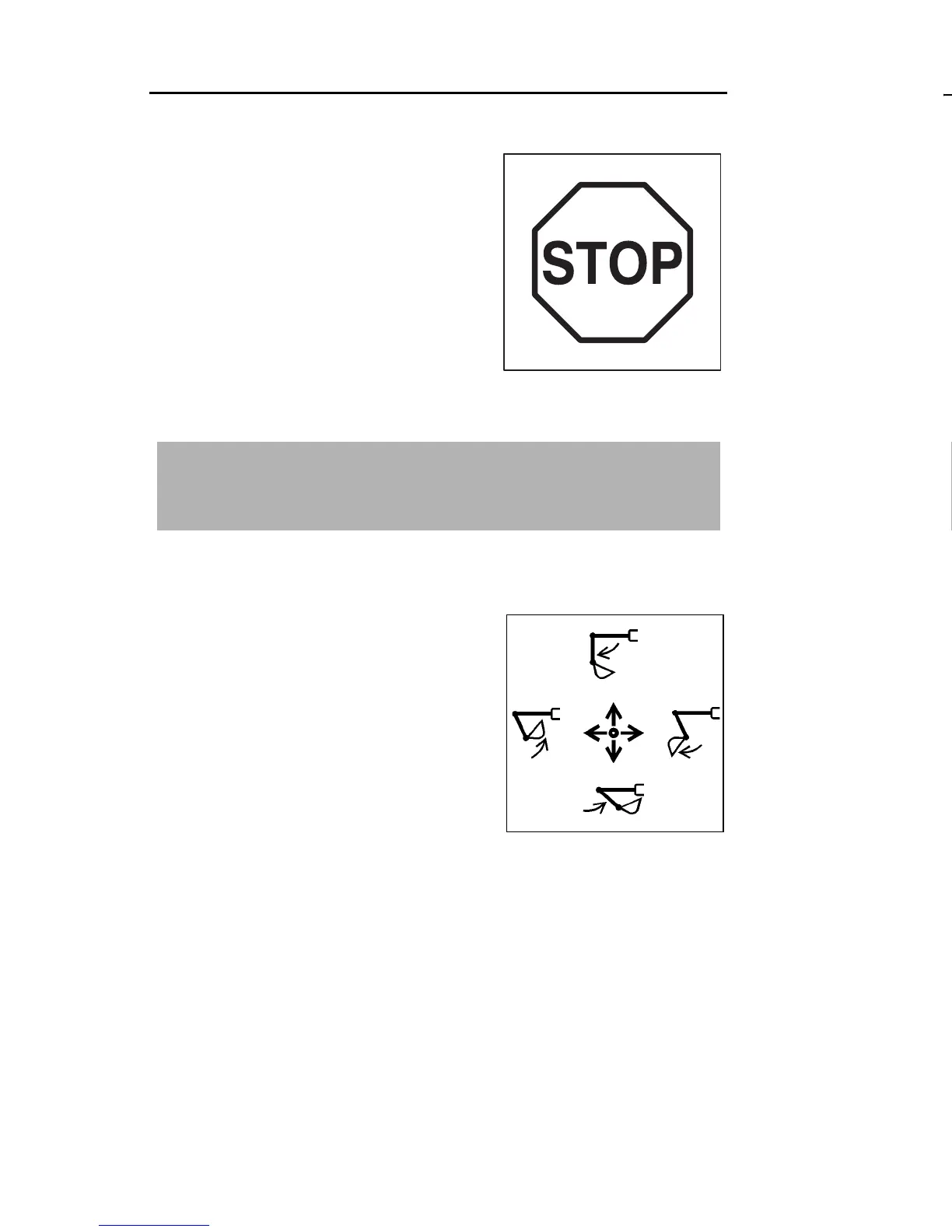

BACKHOE CONTROL DESCRIPTIONS
134 RT115 Tier 3 - BACKHOE ATTACHMENT
BACKHOE CONTROL DESCRIPTIONS
Remote Engine Stop Switch
This control stops machine
immediately. Return to idle before
using stop switch except in
emergency.
Bucket/Dipper Stick Control
This control opens or closes
bucket and moves dipper in or out.
• Move right to open bucket
• Move left to close bucket.
• Pull to move dipper in.
• Push to move dipper out.
Control can perform more than one action at a time. Using them
together, operator can “feather,” or combine backhoe operations.
NOTICE: To prevent damage to turbocharger, do not shut
down engine at full throttle or under load. Should engine die,
immediately remove load and restart engine.
c00ic030a.eps
Remote Engine Stop Switch
This control stops machine
immediately. Return to idle before
using stop switch except in
emergency.
Bucket/Dipper Stick Control
This control opens or closes
bucket and moves dipper in or out.
• Move right to open bucket
• Move left to close bucket.
• Pull to move dipper in.
• Push to move dipper out.
Control can perform more than one action at a time. Using them
together, operator can “feather,” or combine backhoe operations.
NOTICE: To prevent damage to turbocharger, do not shut
down engine at full throttle or under load. Should engine die,
immediately remove load and restart engine.
