BACKHOE CONTROL DESCRIPTIONS
RT115 Tier 3 - BACKHOE ATTACHMENT 135
BACKHOE CONTROL DESCRIPTIONS

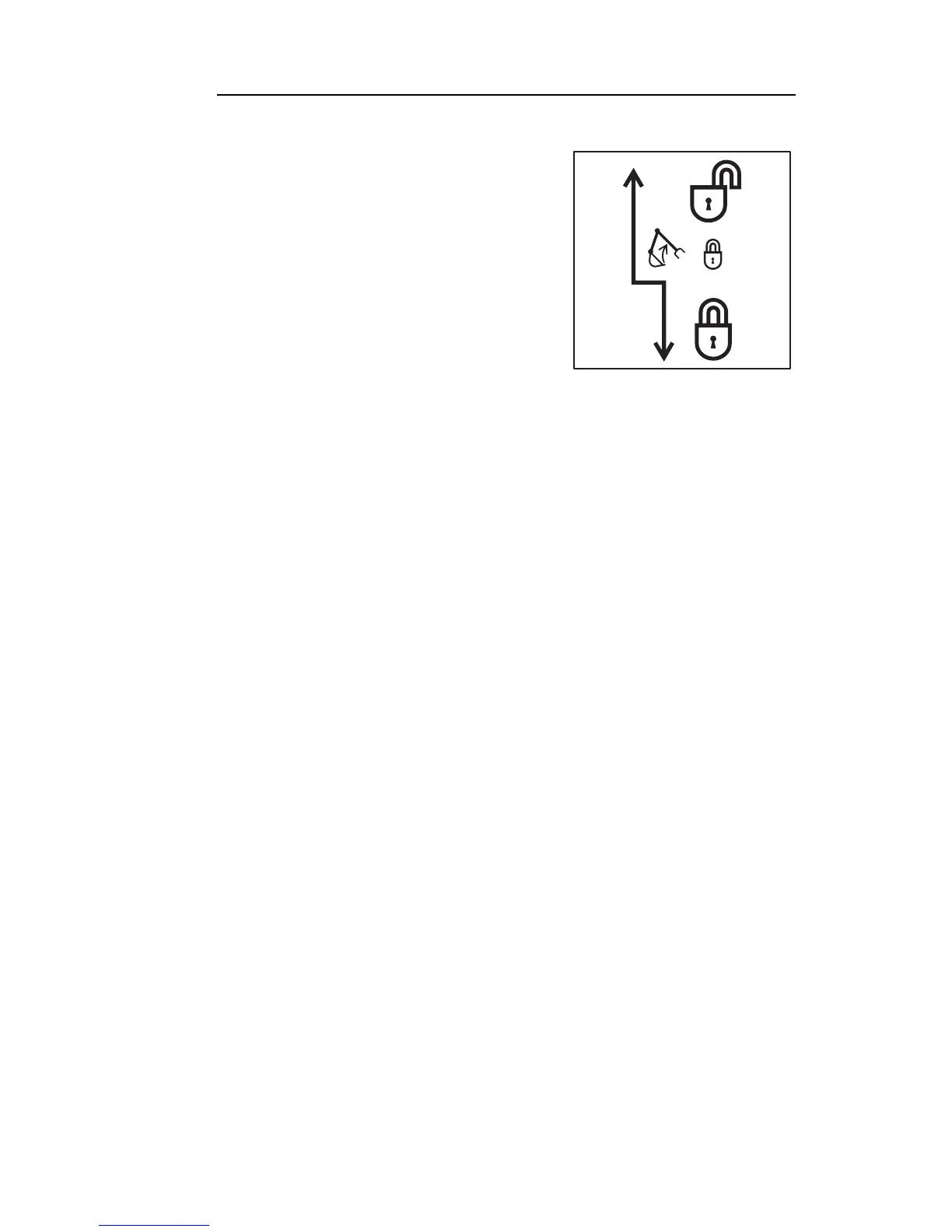

Stow Lock Control
This control locks boom during
transport.
To lock:
• Raise boom fully.
• Pull stow lock control handle
back.
• Lower boom slightly to to engage lock.
• Insert swing lock pin.
To release:
• Remove swing lock pin and store in pin holder located on left
stabilizer support.
• Lift boom slightly.
• Push stow lock control handle forward to release lock.
