note, no material detection still effective, i.e. if the current position is not get the
material, it will do it one more time, if still failed then pull the tape one time and try
two times, if pull tape two consecutive times (in 3 position, total try 6 times) all
failed, then the machine alarm and stop, we suggest open this function when
mount such as cylindrical component;
(13) Enable vision: Check indicate calibrate component with vision, note, enable
vision can improve precision when mount IC;
(14) Coord. set: Setting component coordinate use down camera or nozzle, see
details below.
9.1.1.2. Coordinate Setting
Screen shown as below.

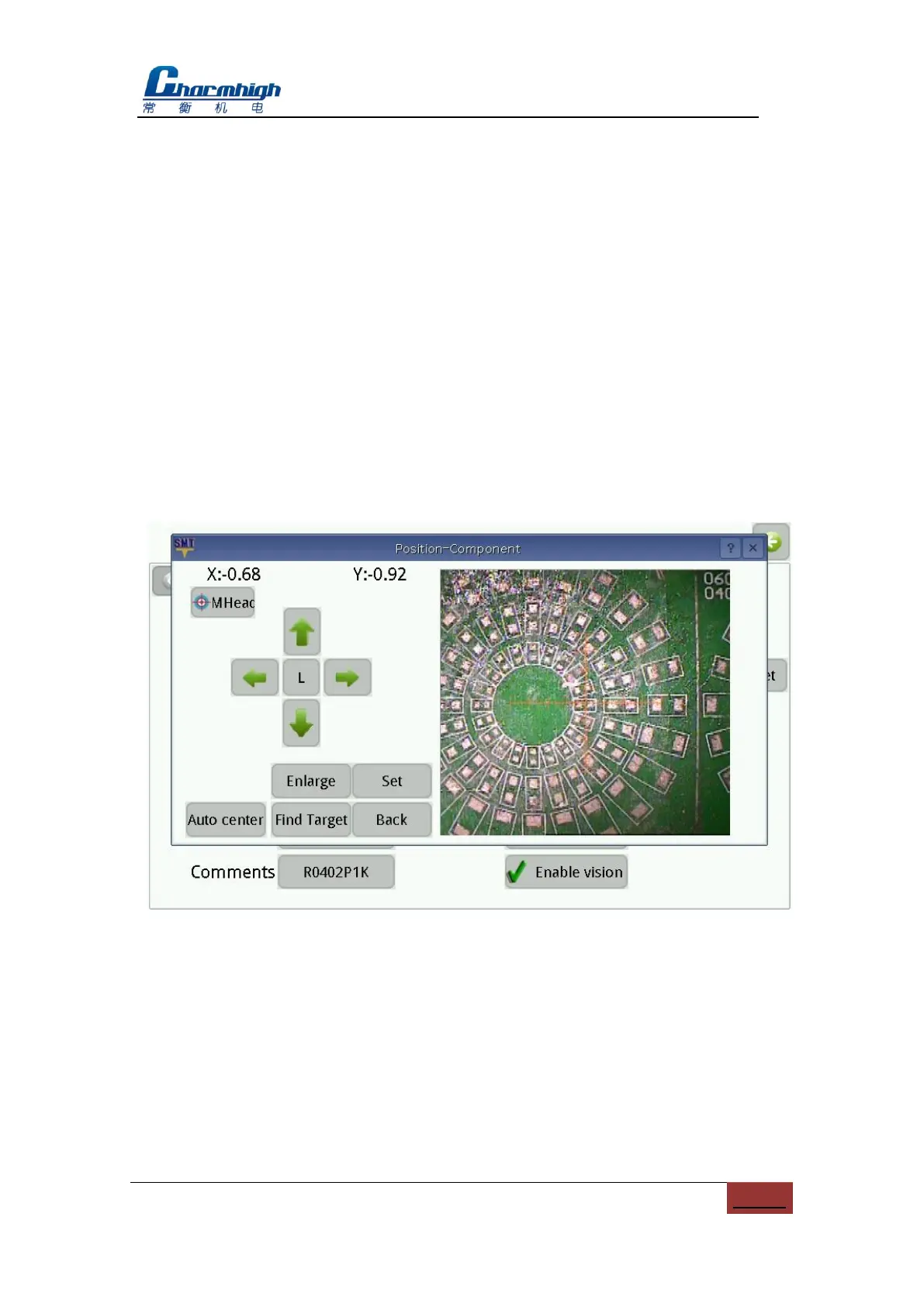

Figure.9-4
(1) Coordinate: Coordinate offset display in the upper left corner;
(2) MHead\Vision: Switchover coordinate set mode among nozzle and vision, the
figure below shows the screen that set coordinate by nozzle, in this mode user
need to check position by eye;
