5.1.1. MVE High Efficiency / Vapor Series
The MVE High Efficiency / Vapor Series freezers will maintain a vapor storage
temperature of either -150°C or -190°C with minimal LN2 evaporation while
accommodating a wide variety of inventory systems.

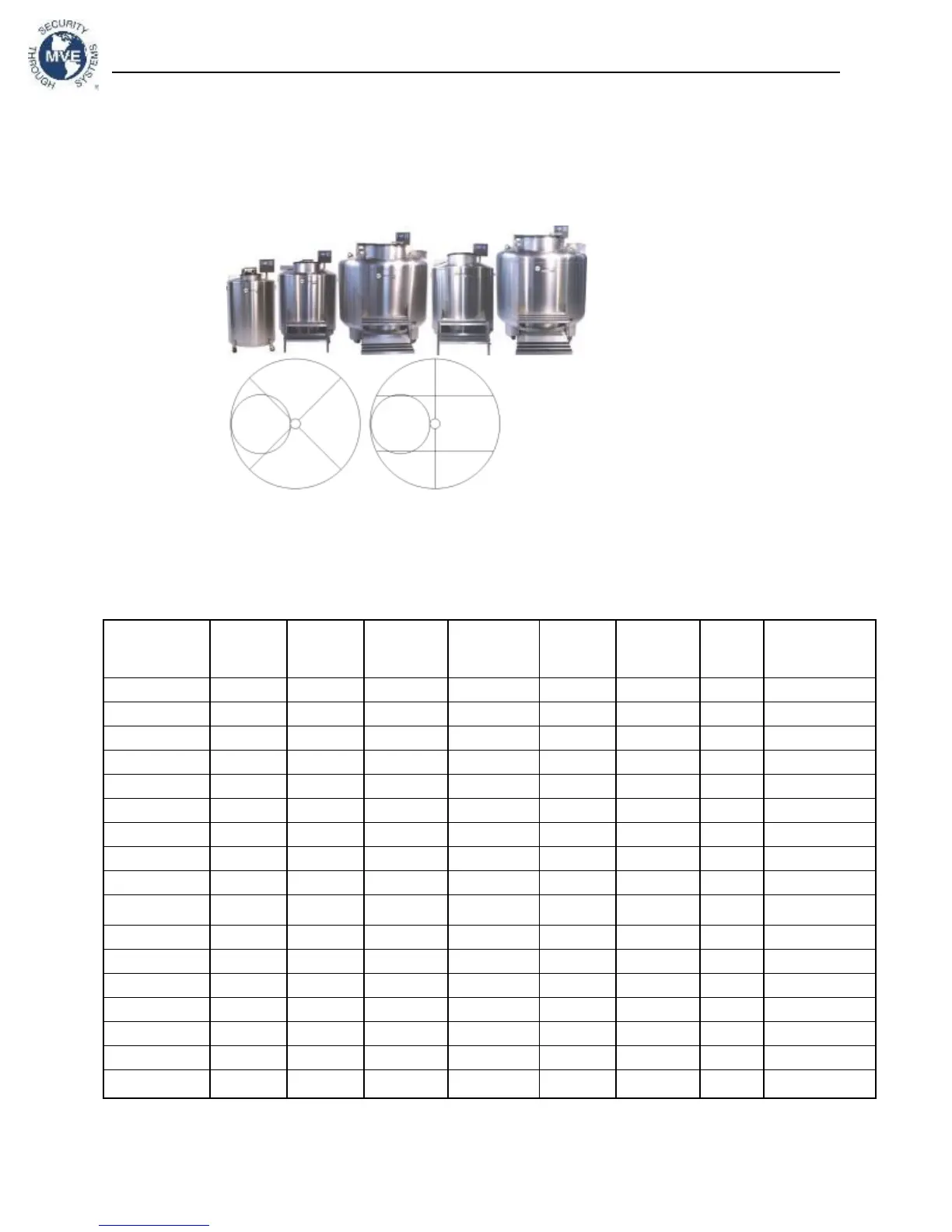

Figure 1: Top-view of HE Freezer showing offset neck and P and R turn-trays
Note: The values in the table for internal turn trays on the High Efficiency Freezers have a tolerance of +/- .25”
(6mm).
Freezer Model
Minimum
Door
Width
in. (mm)
Minimu
m
Ceiling
Height
in. (mm)
Liftover
Height
in. (mm)
Turn-tray
Platform
Height
In (mm)
Weight
Empty
lbs. (kg)
Weight
Liquid Full
lbs. (kg)
Qty of
Casters
Direct Load per
Caster (Full)
lbs. (kg)
MVE 815P-150
32 (813)
75.1 (1908)
47.3 (1202)
6 (152)
475 (215)
1134 (514)
4
284 (129)
MVE 815P-190
32 (813)
75.1 (1908)
47.3 (1202)
6 (152)
475 (215)
1134 (514)
4
284 (129)
MVE 818P-190
32 (813)
84.2 (2138)
51.6 (1310)
6 (152)
495 (225)
1168 (530)
4
292 (133)
MVE 819P-190
32 (813)
90.1 (2289)
55.3 (1405)
6 (152)
515 (234)
1340 (608)
4
335 (152)
MVE 1536P-150
42 (1066)
83.2 (2115)
37.1 (944)
9 (228)
690 (313)
2037 (924)
4
509 (231)
MVE 1536P-190
42 (1066)
83.2 (2115)
37.1 (944)
9 (228)
690 (313)
2037 (924)
4
509 (231)
MVE 1539P-190
42 (1066)
87.8 (2230)
39.2 (995)
9 (228)
720 (327)
2140 (971)
4
535 (243)
MVE 1879P-150
60 (1524)
88.8 (2256)
38.7 (983)
9.5 (242)
1585 (719)
4458 (2022)
4
1115 (506)
MVE 1879P-190
60 (1524)
90.3 (2294)
40.2 (1021)
9.5 (242)
1721 (781)
4830 (2191)
4
1146 (520)
MVE 1892P-190
60 (1524)
100 (2540)
45.2 (1146)
9.5 (228)
1721 (781)
4875 (2211)
4
1219 (553)
MVE 1539R-150
42 (1066)
83.2 (2115)
37.1 (944)
9 (228)
690 (313)
2037 (924)
4
509 (231)
MVE 1542R-150
42 (1066)
87.8 (2230)
39.2 (995)
8 (203)
720 (327)
2140 (971)
4
535 (243)
MVE 1542R-190
42 (1066)
87.8 (2230)
39.2 (995)
9 (228)
720 (327)
2140 (971)
4
535 (243)
MVE 1881R-150
60 (1524)
88.8 (2256)
38.7 (983)
9.5 (242)
1606 (728)
4479 (2032)
4
1120 (508)
MVE 1881R-190
60 (1524)
88.9 (2257)
38.8 (985)
9.5 (242)
1721 (781)
4830 (2192)
4
1208 (548)
MVE 1894R-150
60 (1524)
98.6 (2504)
43.8 (1112)
9.5 (242)
1721 (781)
4875 (2211)
4
1219 (553)
MVE 1894R-190
60 (1524)
98.6 (2504)
43.8 (1112)
9.5 (242)
1721 (781)
4875 (2211)
4
1219 (553)
