5.2 Plumbing Assembly
The plumbing assembly carries and regulates the flow of LN2 from the liquid supply through the
annular fill line, and into the freezer. There are three plumbing assembly configurations; one for
the HE/Stock Series, one for the HEco Series, and one for the MVE/Cabinet Series. Each one
of these configurations are comprised of three main circuits: fill circuit, purge circuit, and
optional gas bypass circuit.
Key
Part Number
Component
Spec Details
1
14224611S
Fill Solenoid Valve
24 VDC, R ≈ 70 Ω (single), 35 Ω (dual)
2
1810032
Pressure Relief Valve
50 PSI (3.45 bar)
3
11648945
Inline Filter
40-micron
4
1110052
Fill Transfer Hose Connections
½ in. ODT, 45° flare, ¼ in. MPT
5
13284954S
Purge (3-way) Solenoid Valve
24 VDC, R ≈ 140 Ω
6
10713400
Gas Bypass Temp Sensor
Pt-1000 RTD
7
14224611S
Gas Bypass Solenoid Valve
24 VDC, R ≈ 70 Ω
8
11499812
Gas Bypass Muffler
-
9
11885449
Gas Bypass Muffler Deflector
-

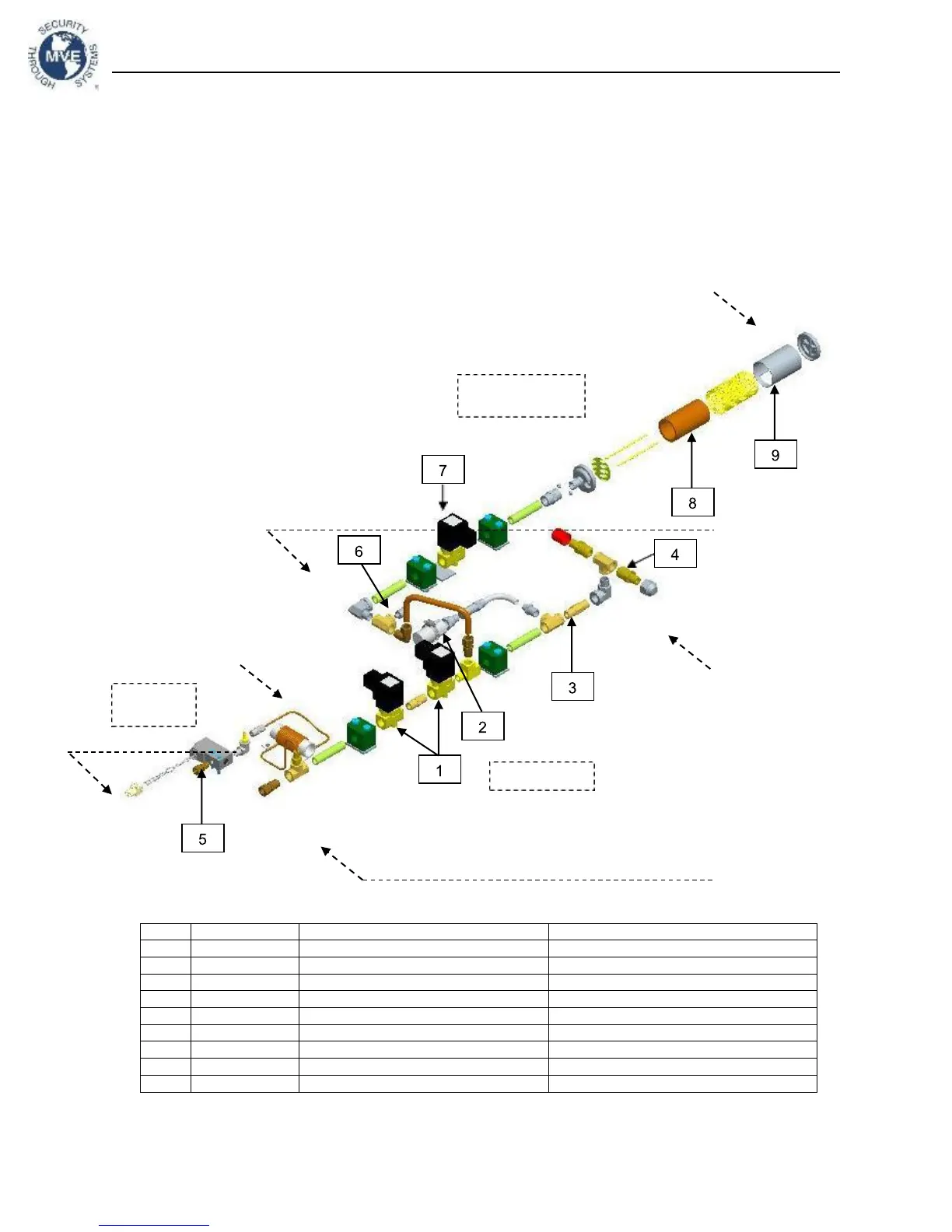

HE Series / CryoSystem 6000 Plumbing Assembly
Hot Gas Bypass
Circuit
Purge
Circuit
Fill Circuit
