CHART MVE 1839 - Page 18

MVE Biological Systems
TEC 3000 Operating and Maintenance Freezer Manual
13289499 Rev G • 16

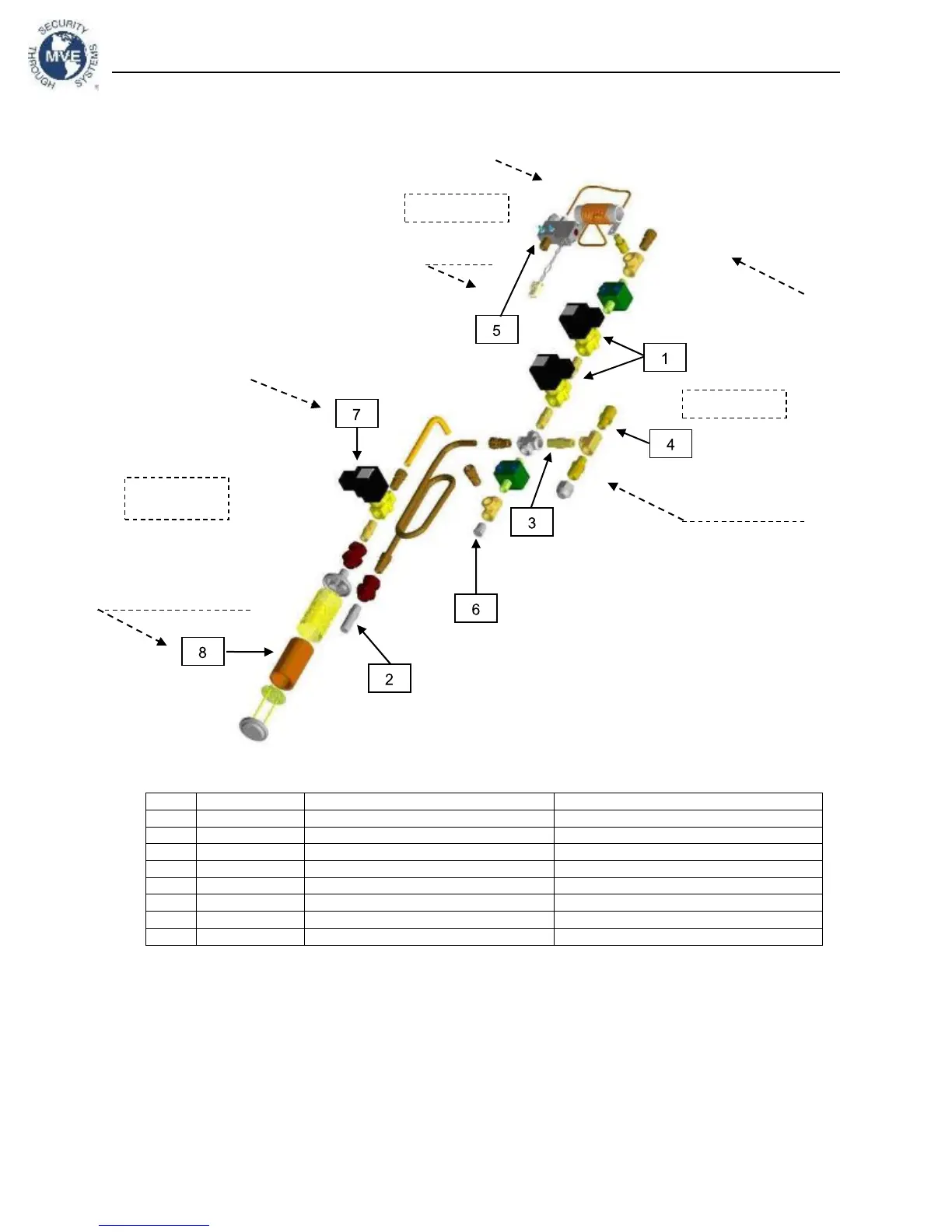

MVE Series Plumbing Assembly
Key
Part Number
Component
Spec Details
1
14224611S
Fill Solenoid Valve
24 VDC, R ≈ 70 Ω (single), 35 Ω (dual)
2
1810032
Pressure Relief Valve
50 PSI (3.45 bar)
3
11648945
Inline Filter
40-micron
4
1110052
Fill Transfer Hose Connections
½ in. ODT, 45° flare, ¼ in. MPT
5
13284954S
Purge (3-way) Solenoid Valve
24 VDC, R ≈ 140 Ω
6
10713400
Gas Bypass Temp Sensor
Pt-1000 RTD
7
14224611S
Gas Bypass Solenoid Valve
24 VDC, R ≈ 70 Ω
8
11499812
Gas Bypass Muffler
-
Purge Circuit
Fill Circuit
Hot Gas
Bypass Circuit
