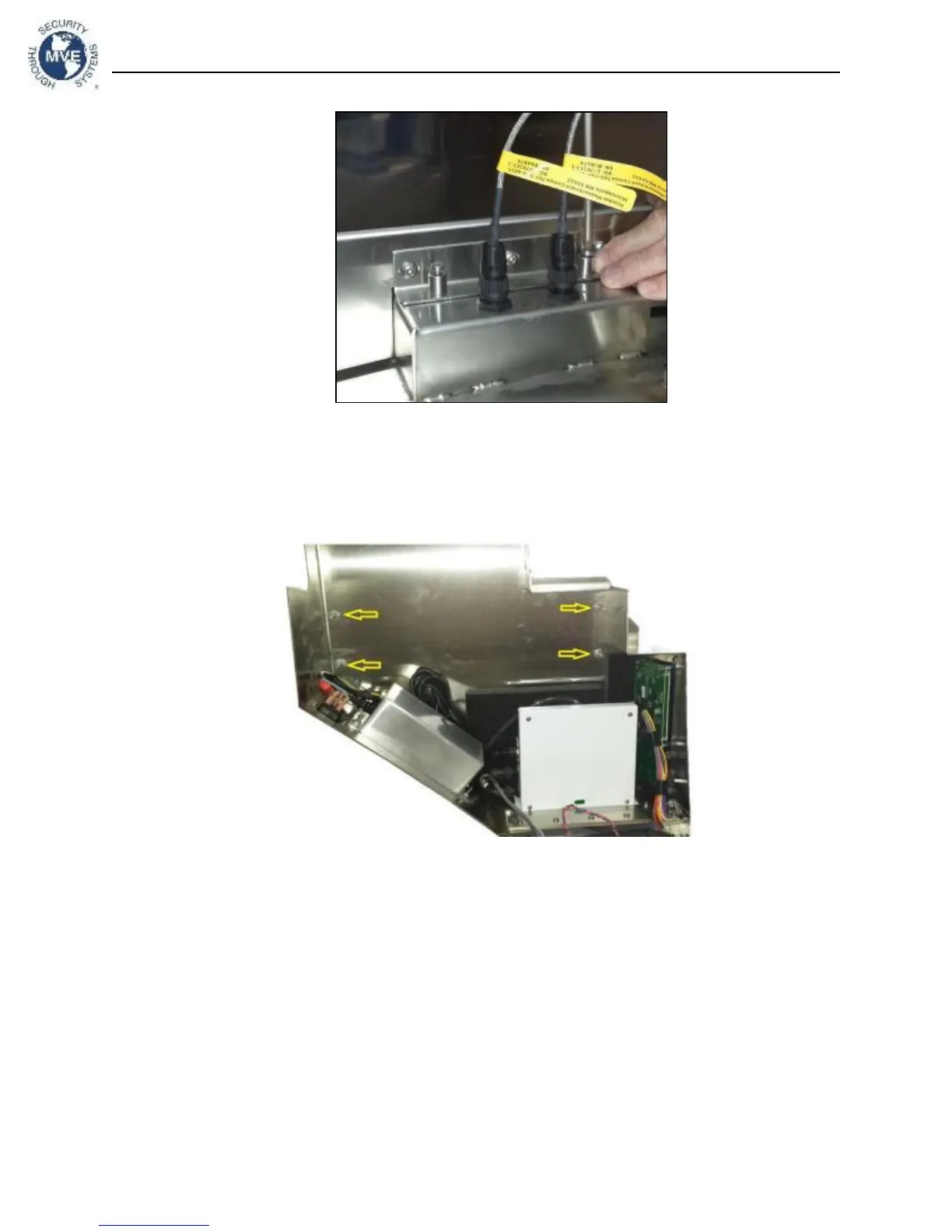

Figure 10 - Phillips Head Screws to Remove
Note: This picture is for reference only. This is the 1800 Series Freezer.
3.1.1.2.
Locate the mounting location for installing the battery backup. It will mount to the studs in
Figure 11 below.
Figure 11 - Location to mount the battery backup
3.1.1.3.
Remove nuts from studs.
3.1.1.4.
Place the battery backup on the studs with the washers between the battery backup and the
platform. Position the battery backup with the pigtail facing towards the front of the freezer. Note: The
battery backup is capable of being positioned with the pigtail facing forwards or backwards. It is
recommended that the pigtail faces forward so the batteries inside the housing remain in an upright
position.
3.1.1.5.
Fasten nuts to studs. This will secure the battery backup to the workstation on the freezer.
3.1.1.6.
Please see Section 3.4 to complete the installation.
3.2.
HEco 1500 Series
3.2.1.
The battery backup will be placed on the 4 studs already located on the freezer. These are
located on the side of the workstation platform.
