Setting Up Your Equipment

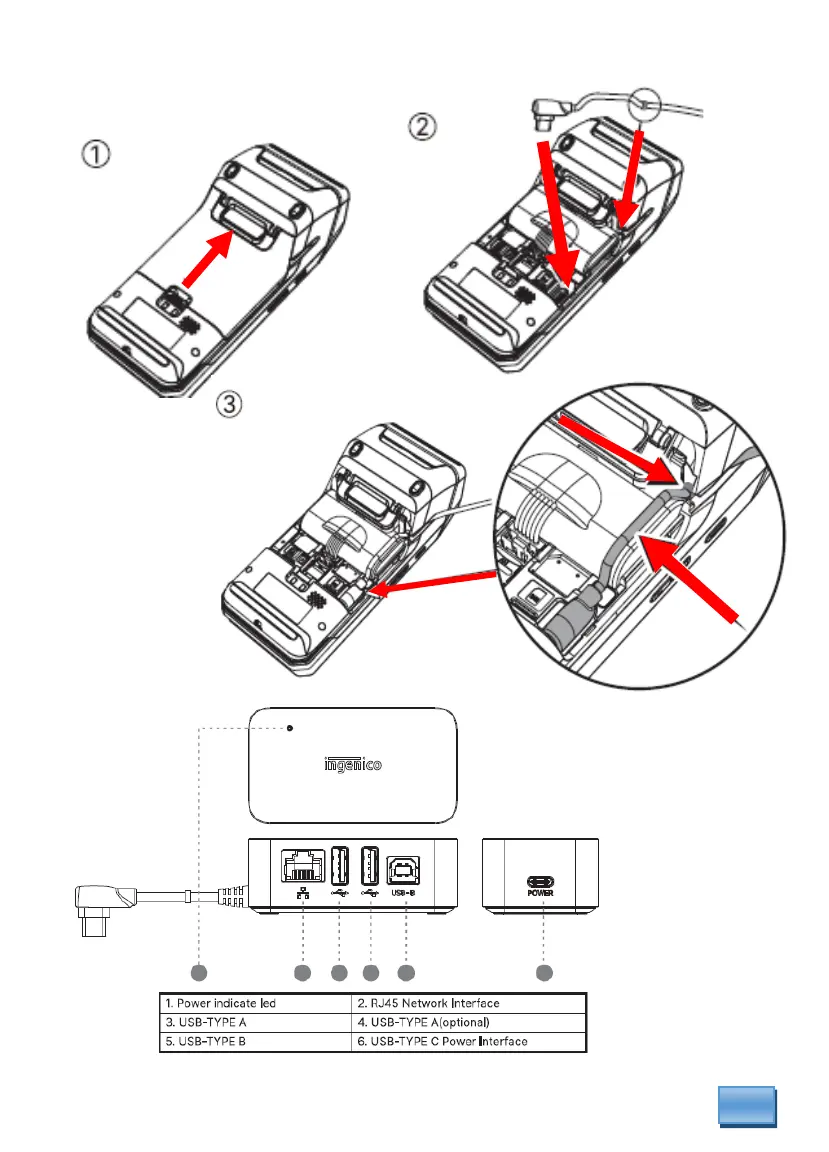

Connect Magic Box with DX4000
Ethernet – Connect the Ethernet
cable from the switch or other
internet access point to the ETH
port (2).
6
.... ·····•
D
1. Power indicate led
3. USB-TYPE A
5. USB-TYPE B
2. RJ45 Network Interface
4. USB-TYPE A(optional)
6. USB-TYPE C Power Interfcae
1 2
3
4
5
6
