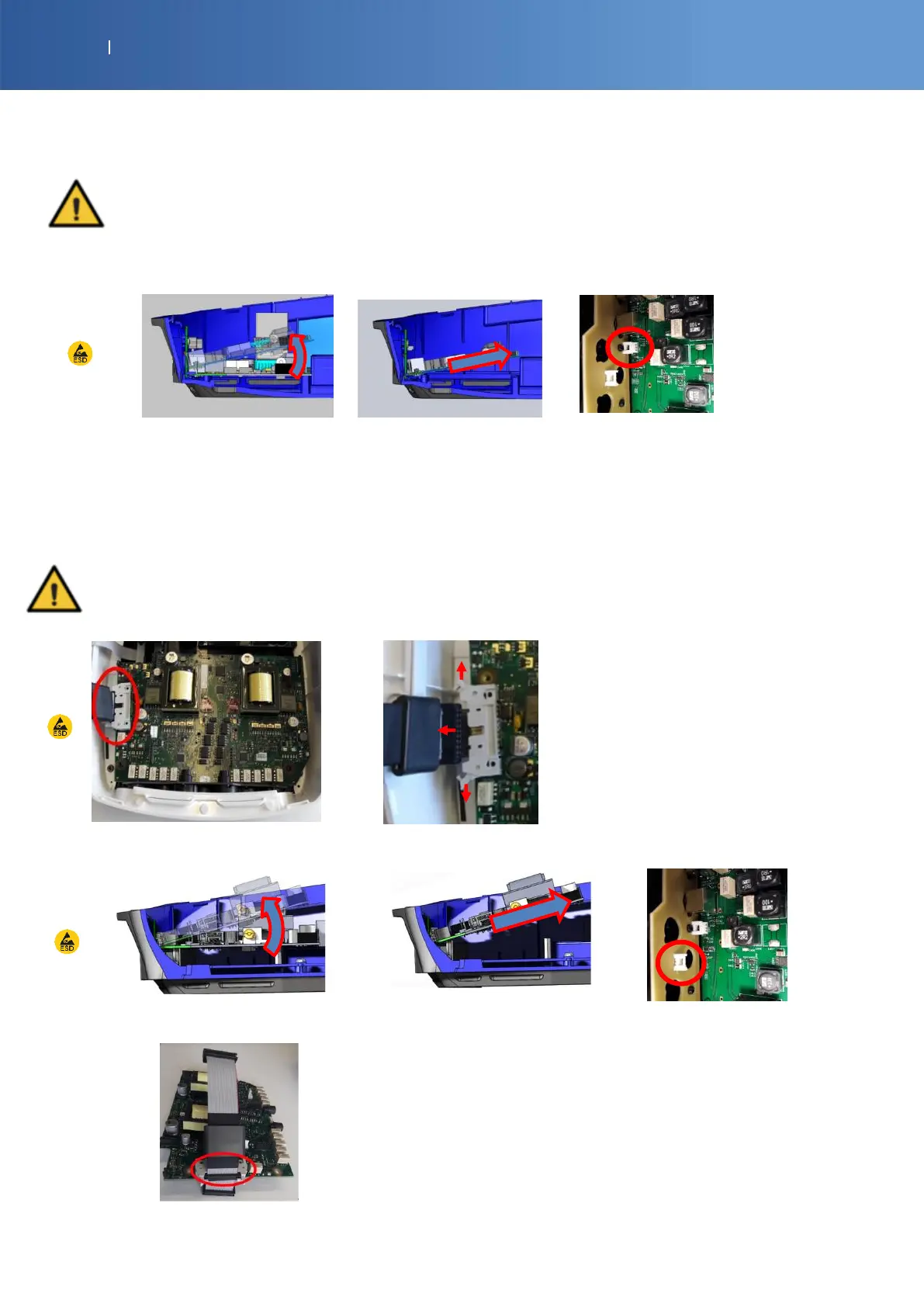

US LOWER SUB ASSEMBLY
G16-0030-SP MOB2 ULTRASOUND PCBA
14-1001-SP MOB2 US-STIM RIBBON CABLE
Handle the PCBA carefully. Beware of not scratching the connectors and the electronic components (on
the 2 sides of the PCB) around the screw holes.
Unscrew the board (4 x Torx T10)
Remove the board in 2 steps to disconnect properly the connector on the connector board
STIM LOWER SUB ASSEMBLY
G16-0020-SP MOB2 STIM PCBA
14-1001-SP MOB2 US-STIM RIBBON CABLE
G16-2011-SP MOB2 PCB METAL SPACER 18 MM M3 X 5
G16-2061-SP MOB2 PCBA WASHER 1.6 MM x4
Handle the PCBA carefully. Beware of not scratching the connectors and the electronic components (on the 2
sides of the PCB) around the screw holes.
Unscrew the board (4 x Torx T10)
Remove the board in 2 steps to disconnect properly the connector on the connector board
Connect the middle connector of the ribbon cable to the STIM PCBA
If you remove a metal spacer, Don’t forget the washers before to screw it.
