| Intelect
®
Mobile 2 - Service Manual 55

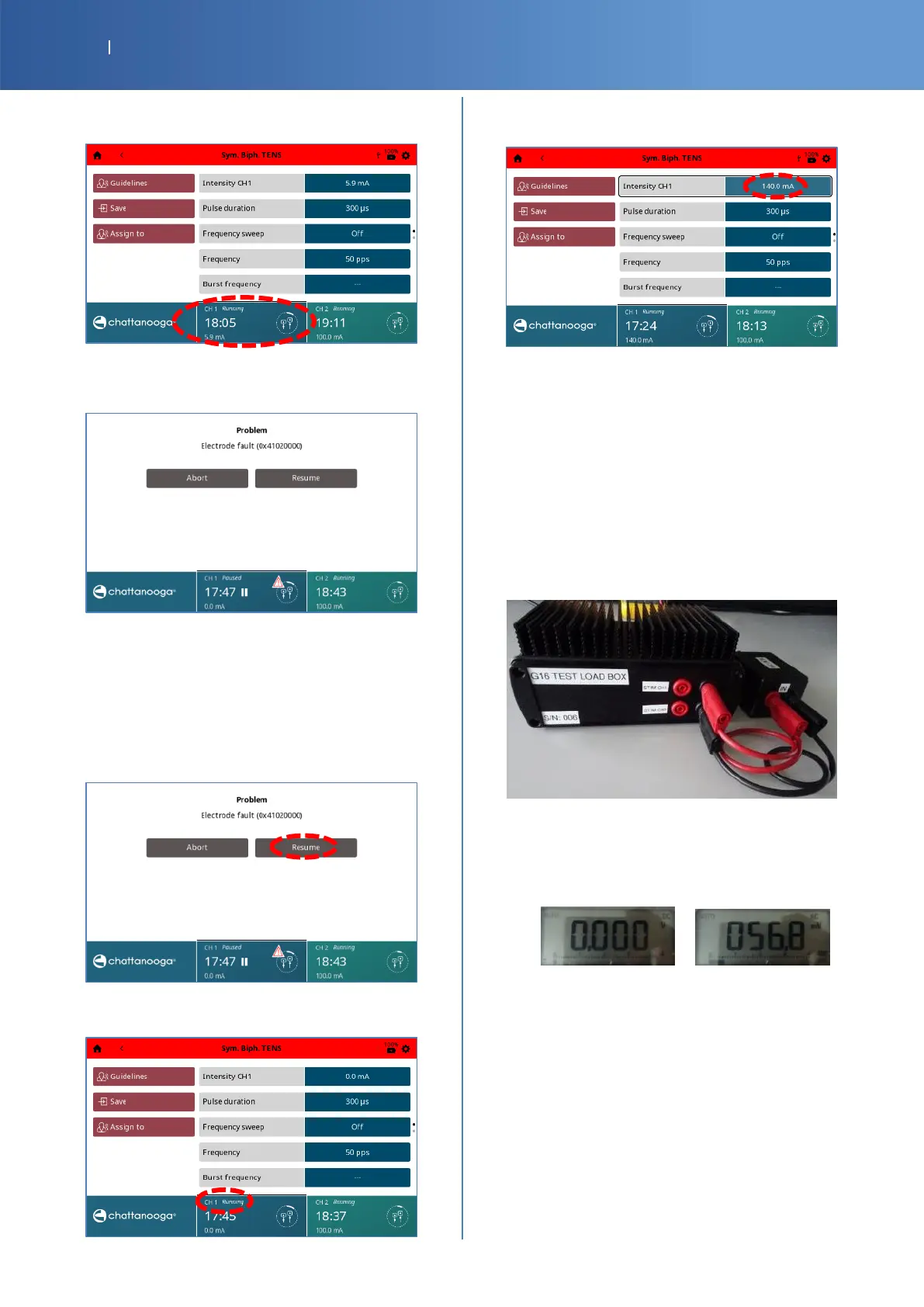

Simulation of Electrode fault on CH1
• Select CH1
• Remove the Electrotherapy connector 1 from the
device, the advice “Electrode fault
(0x41020000)” is displayed.
• Check Pass/Fail the tracker sheet §6 if “Electrode
fault (0x41020000)” is displayed.
Resumption of the Electrotherapy program on CH1
• Put back the Electrotherapy connector 1 into the
device.
• Press “Resume”.
• You should have the CH1 status channel
“Running”.
•
Press “Intensity” field and increase the value with
the knob until the maximum, 140mA.
• Check Pass/Fail the tracker sheet §7 if the program
is resumed on CH1 without error.
Auxiliary Leakage current
• Connect a red banana cable to the red connector IN
(MD box). After, connect the cable to the black
connector of STIM CH1 (G16 Test Load).
• Connect a black banana cable to the black
connector IN (MD box). After, connect the cable to
the black connector of STIM CH2 (G16 Test Load).
• Set the multimeter to V DC and V AC, then read the
values after stabilization.
Value of V DC Value of V AC
• Check Pass/Fail the tracker sheet §8 , if the values
are less than the reference
