| Intelect
®
Mobile 2 - Service Manual 56

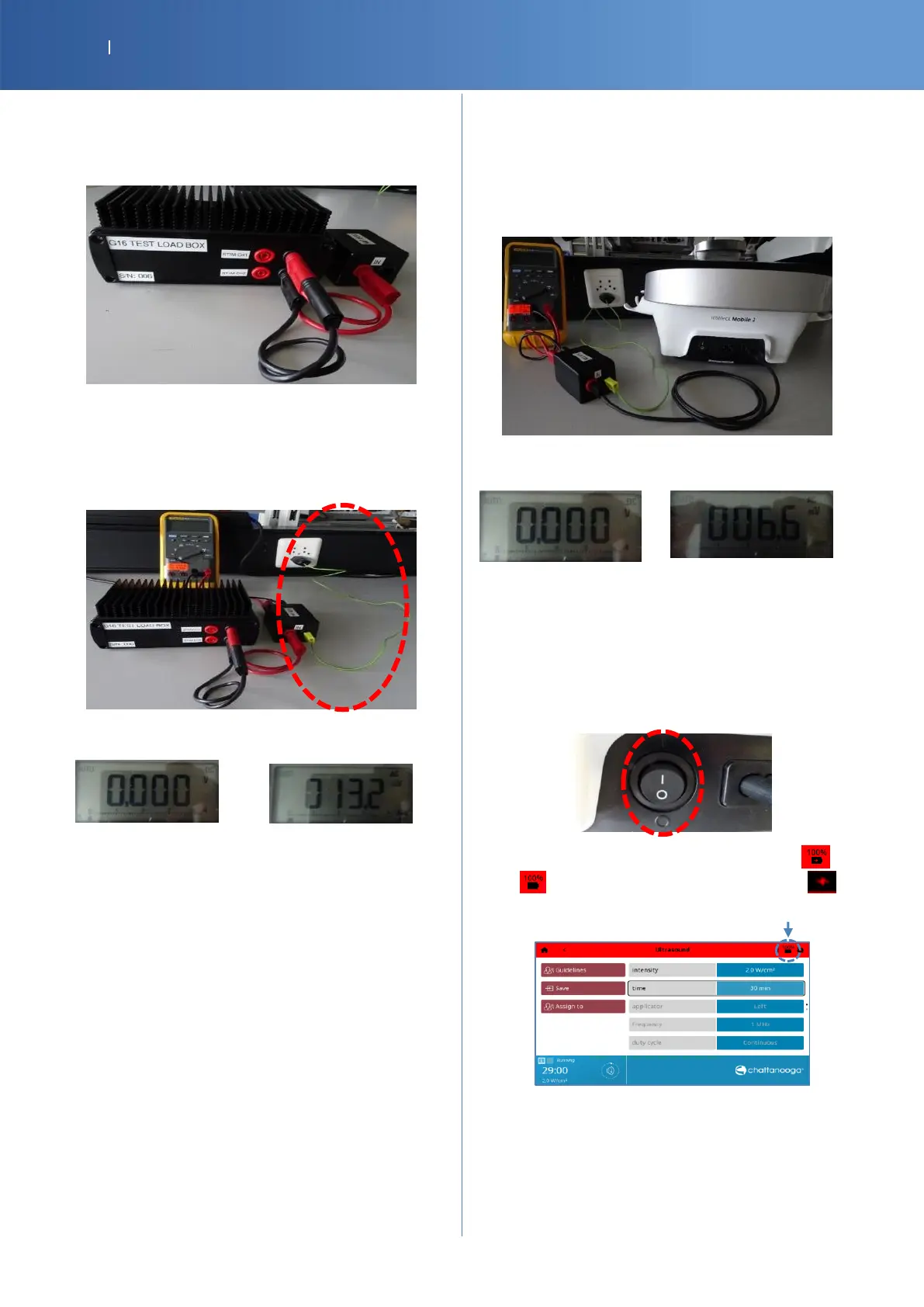

Total patient leakage
• Remove the black connector IN (MD Box). After,
connect it over the red connector, connected to the
black connector of STIM CH1 (G16 Test Load).
• Connect the banana connector of the “Banana wall
plug” to the black connector IN (MD box). After,
connect the wall plug to the wall. If you have a
ground banana connection on the table you can
use it, using a yellow banana cable.
• Set the multimeter to V DC and V AC, then read the
values after stabilization.
Value of V DC Value of V AC
• Remove the red and black cables on the G16 Test
Load. Then remove the red cable on the MD Box
• Check Pass/Fail the tracker sheet §9 , if the values
are less than the reference
Enclosure Leakage
• Use the “USB-Banana” cable to connect the USB of
the device and the red connector IN (MD box).
Note : Sometimes, when you plug the USB to the
device a warning with a sound appears, this is normal
behavior.
• Set the multimeter to V DC and V AC, then read
the values after stabilization.
Value of V DC Value of V AC
• Check Pass/Fail the tracker sheet §10 , if the
values are less than the reference
Battery detection (test optional)
• Switch OFF the power line.
• Verify that the battery logo change, before , after
(there is no more the symbol of charge )
• Check Pass/Fail the tracker sheet §11 if the battery is
detected.
To check the autonomy of the battery: “Battery Test” P32
