| Intelect
®
Mobile 2 - Service Manual 59

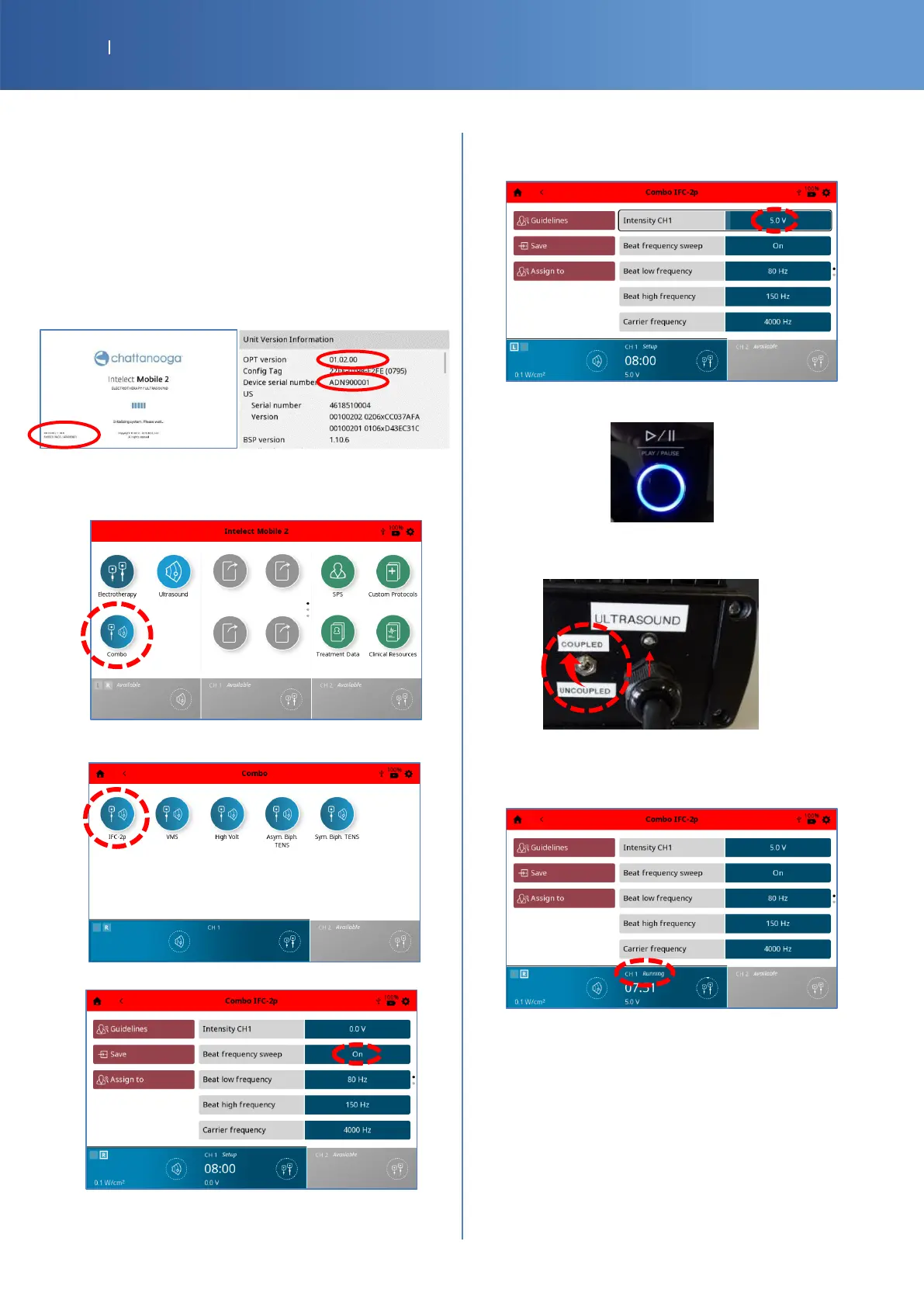

8.3. INTELECT MOBILE 2 COMBO
Use a test US applicator
The Stim cables must be connected on a load (1kHz)
Use the G16 test load box (PN 14-9706-2)
•
Print the tracker sheet (page 64)
•
Note on this tracker sheet the Serial number and the
Software version : §1 & 2 (on the boot screen or in
Settings /Display Unit Version Information (page 24))
Combo and User Interface
• Press the “Combo” icon.
• The following screen is displayed, then, press on
IFC-2p
• Press “Beat frequency sweep” to obtain ON.
• Select the field intensity and increase the value
with the knob until 5V, then
• Press the “Play” button.
• Wait 5 seconds and Set the G16 Test Load switch
ULTRASOUND to “COUPLED”
• You should have the CH1 status channel
“Running”.
