Chauvet DMX-55 DMX User Manual

DMX-55 User Manual 6 2006-01-11 11:59:07

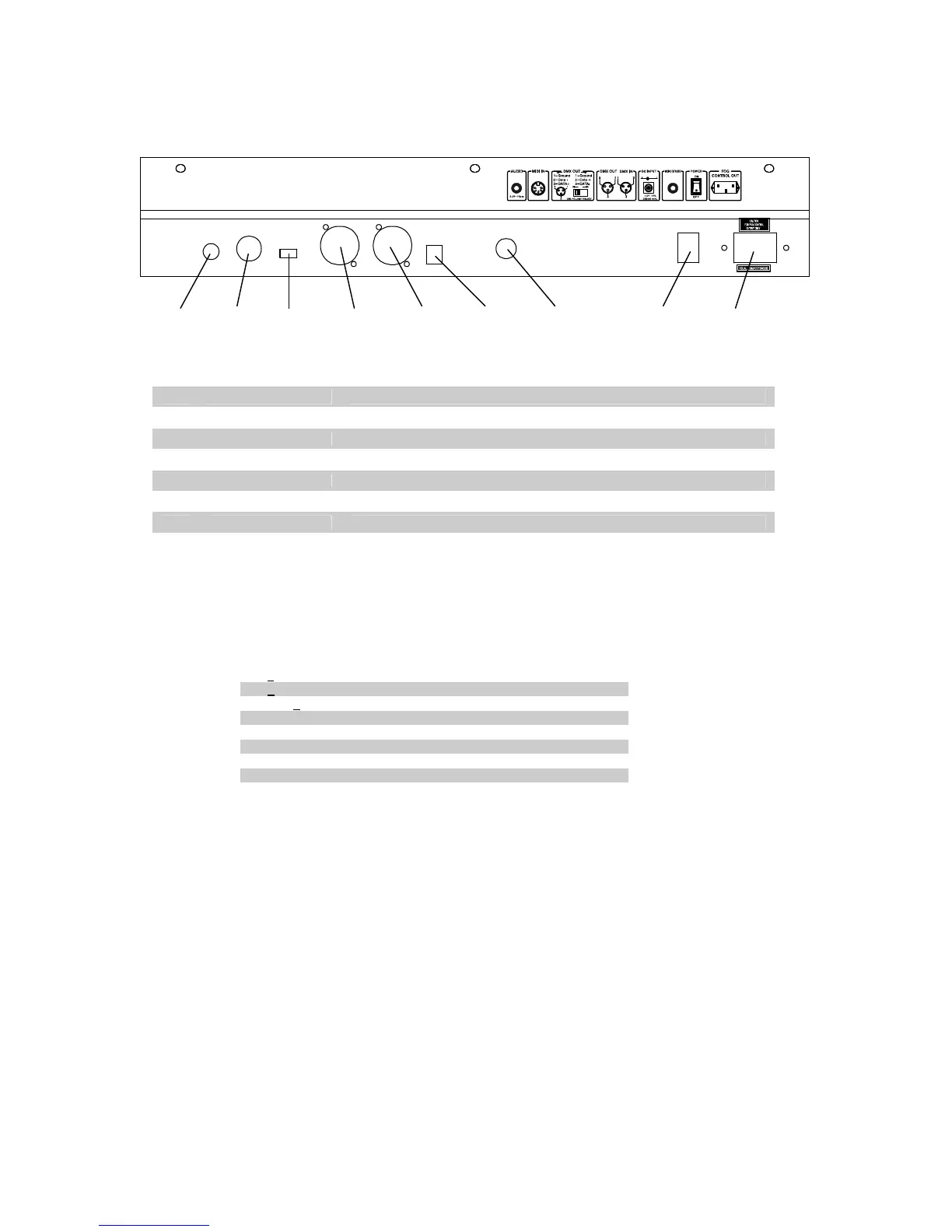

Connection Diagram (rear)
LCD Display Table of Definitions
Display Reference Definition
SN1
Scene 1
BK1
Bank 1
CHASE1
Chase 1 is activated
STEP 009
Step # 9 of a chase
DATA 184
DMX Value (000-255)
SP :1M54s
The current speed is 1 minute 54 seconds
TP:4.25s
Sampled time between the last two taps
ASS 04 05
Assign DMX channels 4 and 5
RES 10 13
Reverse DMX channels 10 and 13
Item Button or Fader Function
27 MIDI input port For external triggering of Banks and Chases using a MIDI device
28 DMX polarity switch May be used to correct signal polarity
29 DMX output connector DMX control signal
30 DC Input jack Main power feed
31 Strobe connector Chauvet Mono Strobe ¼” connector for built in strobe controller
32 ON/OFF power switch Turns the controller on and off
33 Fog connector Chauvet fog controller IEC connector
34 Audio input jack Audio input feed for music triggering
35 DMX input connector Used in data dumps between controllers
34
27
28
29
35
30
31
32
33

Chauvet DMX-55 DMX Specifications

Power

operating range	DC 9V-12V 500mA min
adapter	Provided

Operating Environment

maximum ambient temperature	45°C (113° F)

Weight and Dimensions

length	514 mm (20.25 in)
width	89 mm (3.5 in)
height	171 mm (6.75 in)
weight	2.7 Kg (6 lbs)
