– 2 –
1.0 INTRODUCTION
The DTS is supplied as a complete kit that includes:
(1) Tension meter with accumulator and AC adapter with country
adapters (EU, US, UK)
(1) Certicate of compliance with the order 2.1 under EN 10204
(1) Operating Instructions
(1) Carrying case
NOTE: Unpack the tension meter and inspect it for shipping damage. Notices of
defect must be led, in writing, at the latest within 10 days on receipt of the goods.

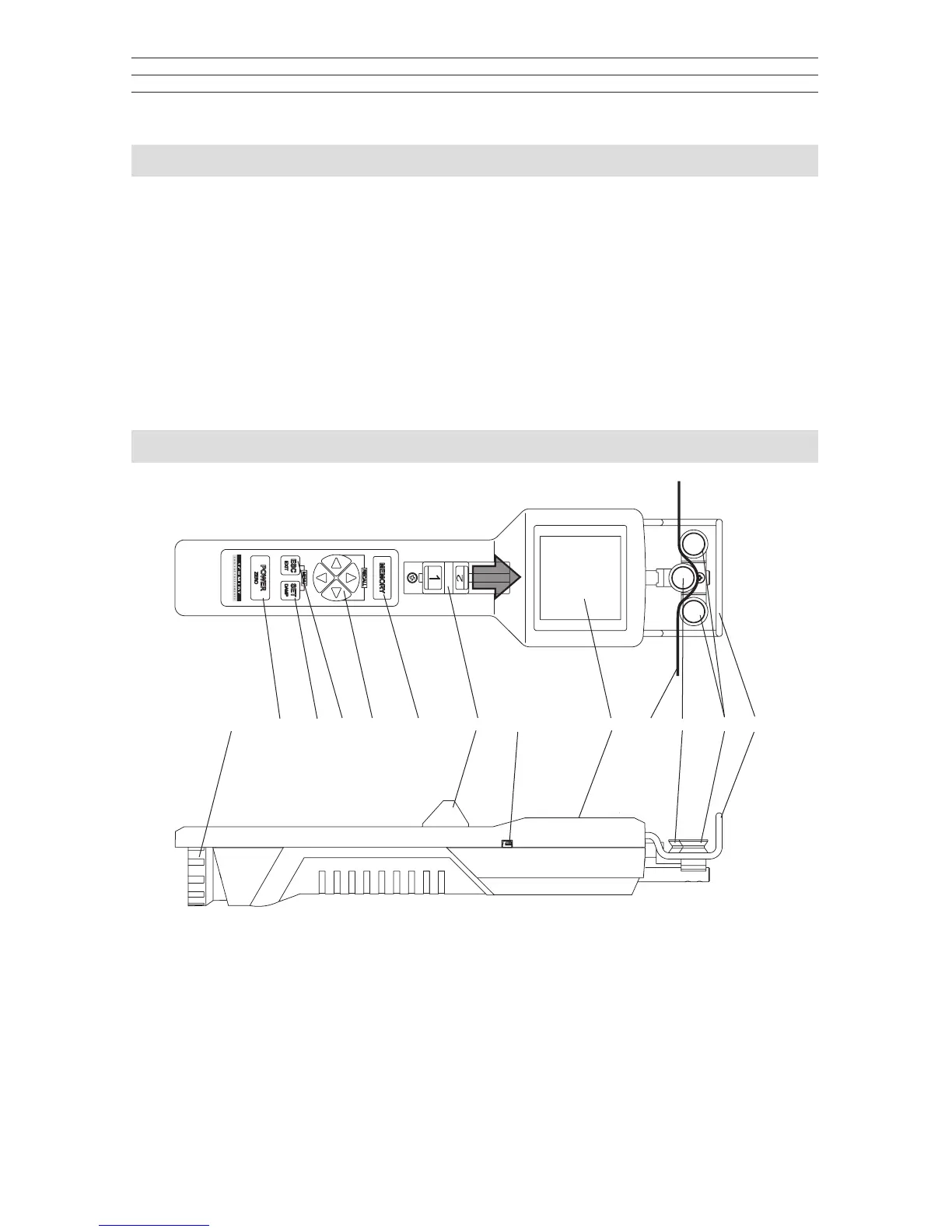

2.0 OVERVIEW OF OPERATING AND DISPLAY ELEMENTS
12345678910111213
1. Filament guide
2. Guide rollers
3. Measuring roller
4. Material to be measured
5. Display
6. USB interface / power connector
07. Thumbpiece
08. MEMORY key
09. Arrow key
10. ESC / EXIT key
11. SET / DAMP key
12. POWER / ZERO key
13. Adjustment wheel for material thickness compensator
(subject to model or measuring range, otherwise a cover cap is provided)
FIG. 1
