Graphic display
Adjusted material
diameter
Damping
Current reading
MIN.-alarm value
Tension range
Memory mode (data
stored in the memory)
Battery status indicator
Measurement unit
Alarm values
MIN/MAX Alarm
MAX.-alarm value
Measured values
as graph
Info on material
The Y-axis can be scaled with the and buttons.
3 Scalings: total measuring range, set limits range plus approx. 1/3 of
MAX.-alarm value and minus approx. 1/3 of MIN.-alarm value, set limits range.
The scaling is only possible, if limit values are entered and the damping is not
activated.
With the or button the X-axis can be scaled. The setting range is 0.5 to
60 sec.
The scaling can also be changed during the measurement, whereby values
already displayed are deleted when the X-axis is changed.

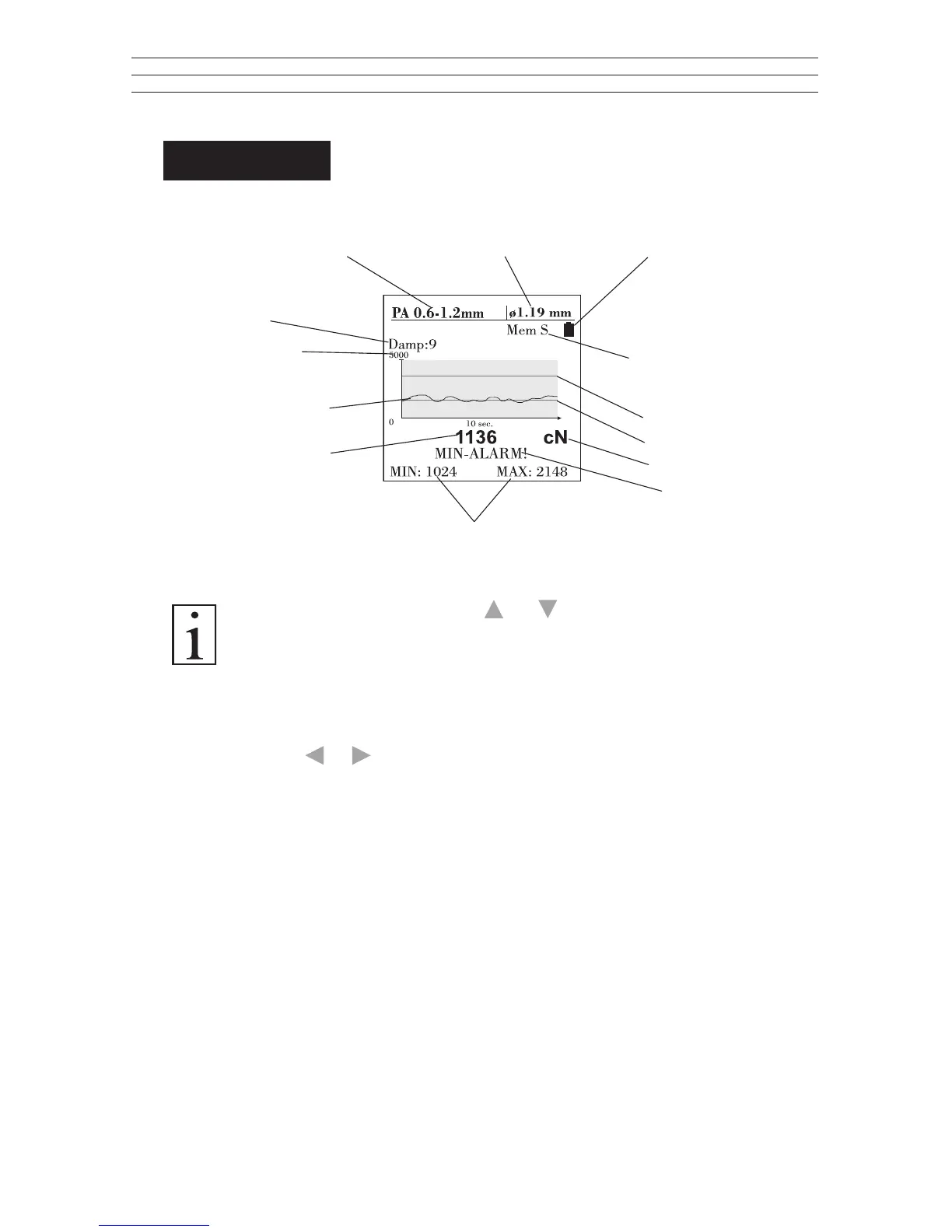

FIG. 4
