Front Panel LEDs

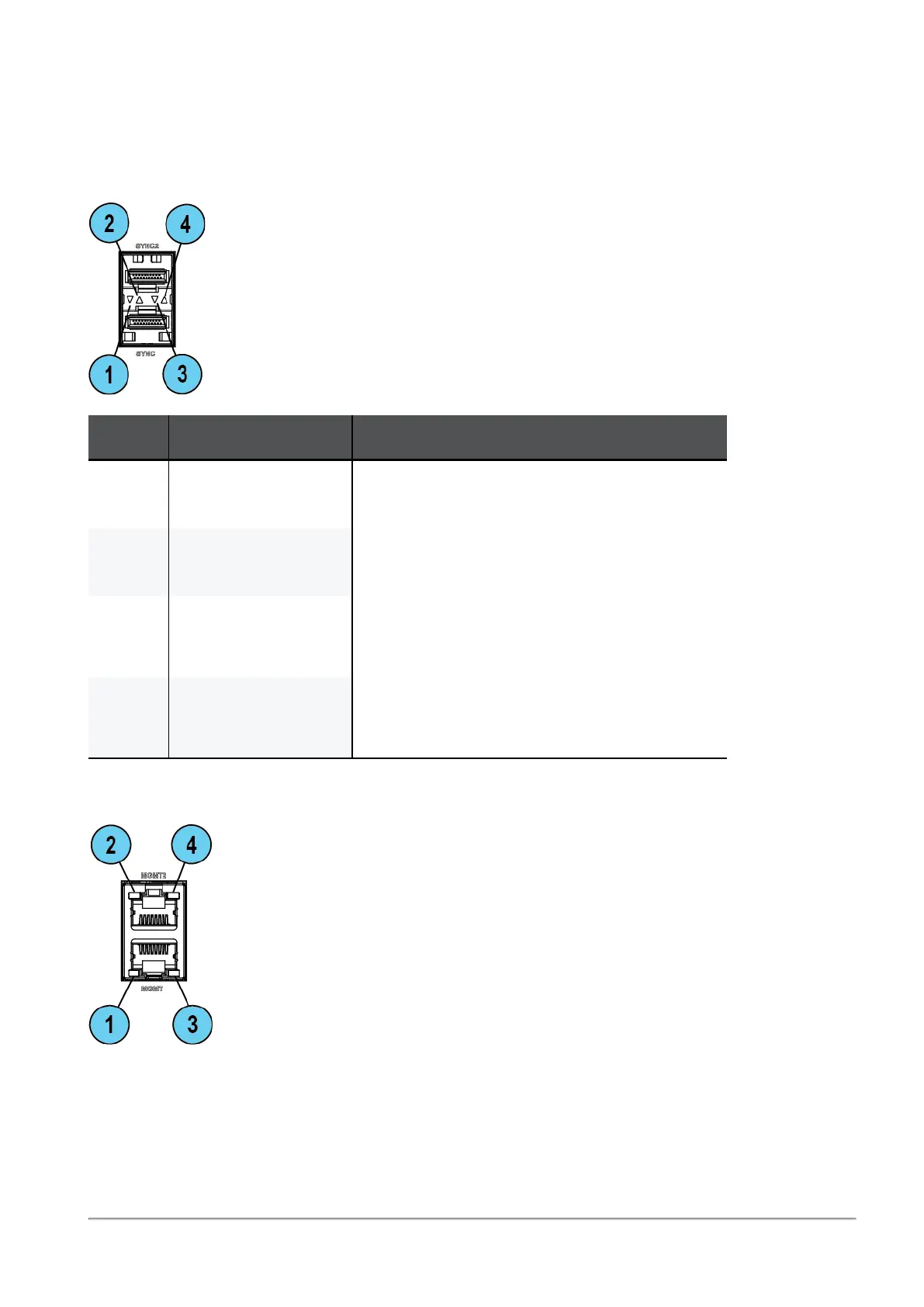

Synchronization Port LEDs
Item Component Description
1 Port activity LED
(bottom port SYNC)
n
Off - No activity
n
On (Green) - Link exists
n
Blinking (Green) - Activity
2 Port activity LED
(top port SYNC2)
3 Link Speed LED
(bottom port SYNC)
n
Off - 1 Gbit/s or lower data rate is
selected
n
On (Amber) - 10 Gbit/s data rate is
selected
n
On (Blue) - 25 Gbit/s data rate is
selected
4 Link Speed LED
(top port SYNC2)
Management Port LEDs
