4-port 12Gb/s SAS/ SATA Backplane - 80H10230101A0 User Manual
Table 8. HDD Status LED Color Code

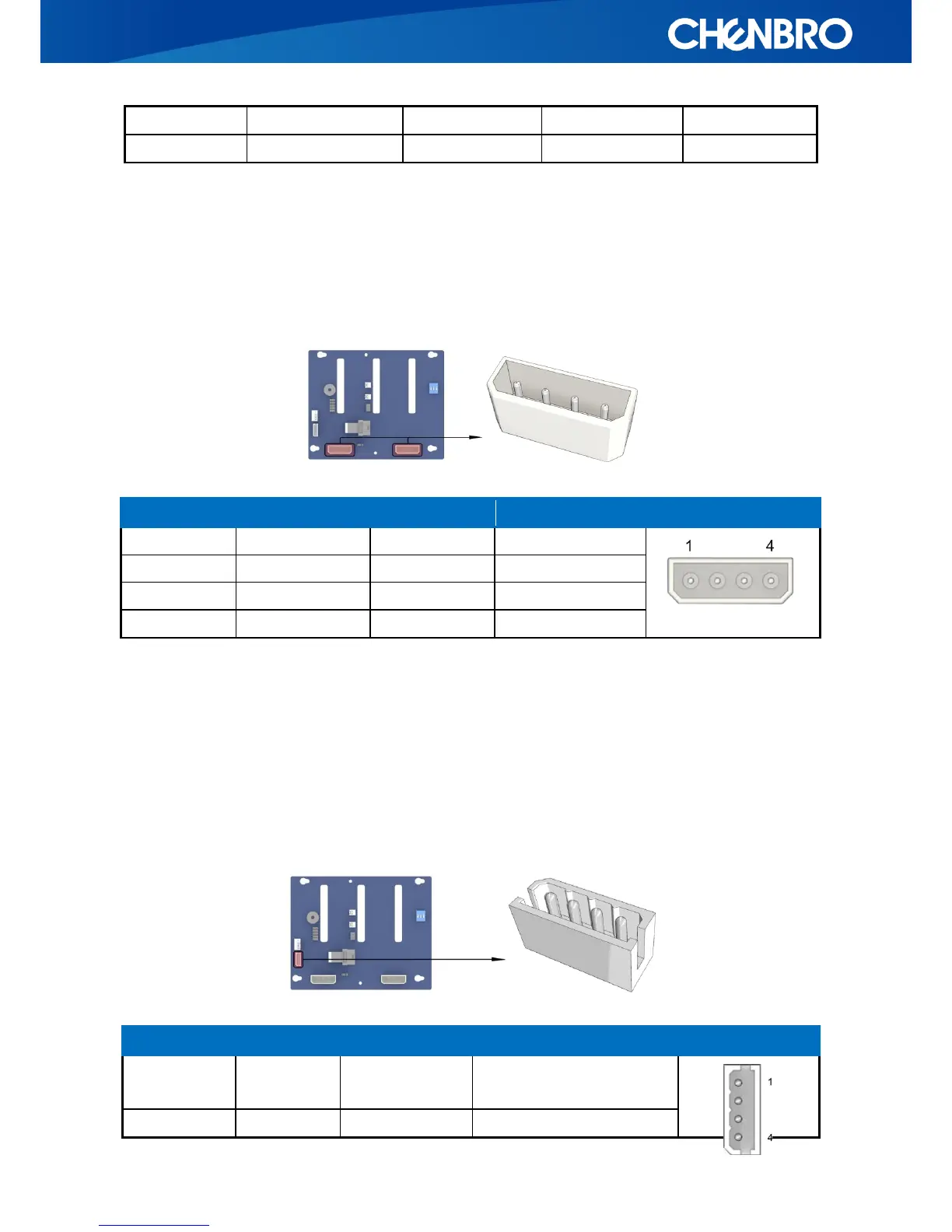

3.5 4-pin peripheral power connector (CN01and CN02)
These two connectors are used to power four 3.5” hard disks, connected to this backplane, and
each can ensure that all drives are supplied with stable power inputs. If the chassis fan is also
powered by fan header (JF01), this configuration is strongly recommended.
Pin Number
Pin Definition
Input/output
Description
1
12V
Input
Power +12V
2
GND
GND
Power GND
3
GND
GND
Power GND
4
5V
Input
Power +5V
Table 9. Pin assignment of Power connector
3.6 I2C Connector (JC01), IPMI Compliant
The motherboard can monitor HDD temperature and fan status through this connector. However,
the I2C connector on motherboard side is vendor dependent, so please contact our field
application engineers to fully utilize this feature.
Locate
On
Off
4Hz Blinking
SGPIO
Rebuild
On
Off
1Hz Blinking
SGPIO
PIN-Number
PIN-Define
Input/output
Description
1
SDA
I/O
I2C Data Signal
(Internal pull high +5V)
2
GND
GND
GND
