TOLERANCE NOTES
FABRICATED TOLERANCES
≥ 2 ft (610 mm) ± 0.250 in (6.4 mm)
< 2ft (610 mm) ± 0.125 in (3.2 mm)
MACHINED TOLERANCES
± 0.050 DECIMAL DIM (1 PLACE)
± 0.010 DECIMAL DIM (2 PLACES)
± 0.005 DECIMAL DIM (3 PLACES)
must be rated for a minimum of 50 volts and 10 Amps. To achieve higher relay contact
voltages, use iScan®3 Flame Scanner relay contacts to energize the coil of an interstitial relay.
Note 3 The 24 VDC return, “DC (-),” shall be used as the low side of the File Select relays.
Note 4 The 24 VDC return, “DC (-),” is the return for the 4–20 mA output loop(s). Input must be
isolated type. The maximum current loop resistance is 750 ohms.
Note 5 Connect the scanner Earth GND (Green/Yellow, 8, <H>) to EARTH GROUND. A short-BRAIDED
CONDUCTOR (alternately a short AWG #12 wire) is recommended.
Note 6 All shields are tied to Earth Ground in the Control Panel only.

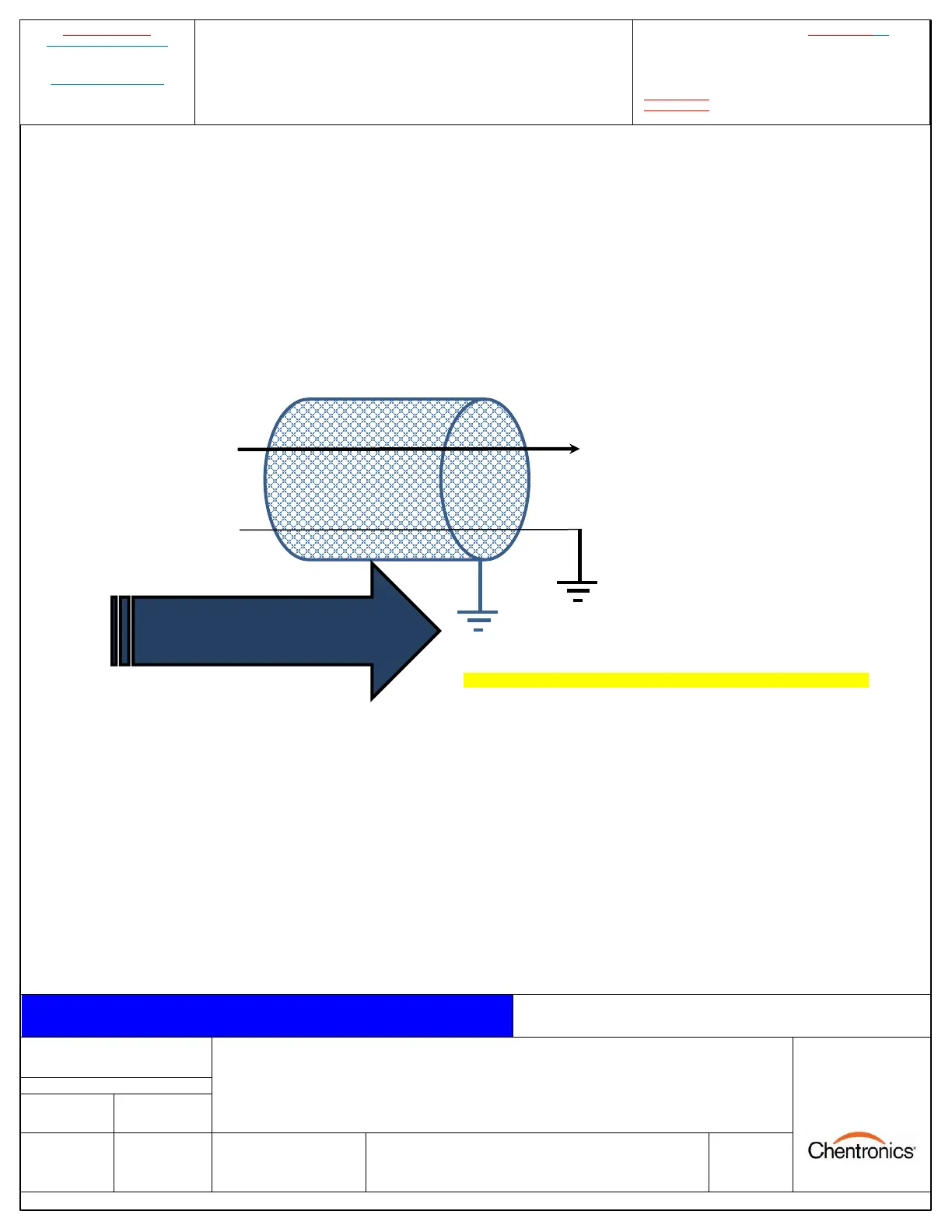

Figure 4: Earthing instructions
GREEN/YELLOW (8) <H> CONNECT TO EARTH
GROUND. (See section on grounding methods)
CONNECT ALL SHIELDS AT ONE END ONLY TO EARTH GROUND.
DO NOT GROUND SHIELDS AT THE LOCAL JUNCTION BOX.
Earth Ground
Located at CONTROL PANEL
To Next Page
