Cheyenne HAWK - Assembling and Disassembling the Handle and Drive

40 Cheyenne HAWK, HAWK SPIRIT & HAWK THUNDER
E Check if your tattooing machine has
become heavily contaminated by the
return flow of inks or bodily fluids.
In such cases, perform the steps
described in the chapter “7 Cleaning
and maintaining the tattooing
machine” on page46.
E Wipe down the connecting cables,
thedrive and the handle with a soft
cloth moistened with disinfectant.

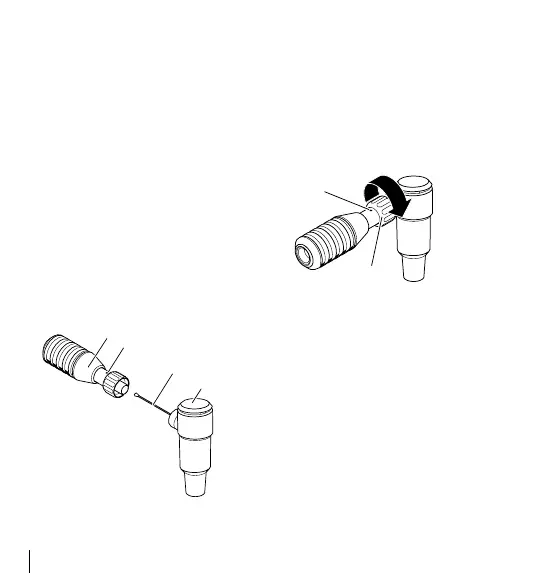

5.2 Assembling and disassembling
the handle and drive
Handles are available in dierent diam-
eters. The assembly procedure is the
same for each.
For assembly:
E Fit the piston (3) in the handle (1).
E Adjust the angle between the drive (4)
and index (2) so that your tattooing
machine is comfortable in your hand.
The index marks the position of
theupper and lower part of the safety
cartridge.
E Tighten the fixing nut (5) to theme-
chanical stop without changing the
adjusted angle.
E Ensure that the index (2) does not
turn while you turn the handle.
Tighten the fixing nut as necessary.
For disassembly:
E Unscrew the fixing nut.
E Remove the handle from the drive.
The piston comes out of the handle.
2
3
1
4
5
2
