CHIEF MI200T - Replacement of C Arms

24
Stretches types:
Short: C1, C3, C4, C5, C6, C7, C9, C10
Long: C2, C8
Long Stretches
Long Injector
Short Injector
Short Stretches
①
②

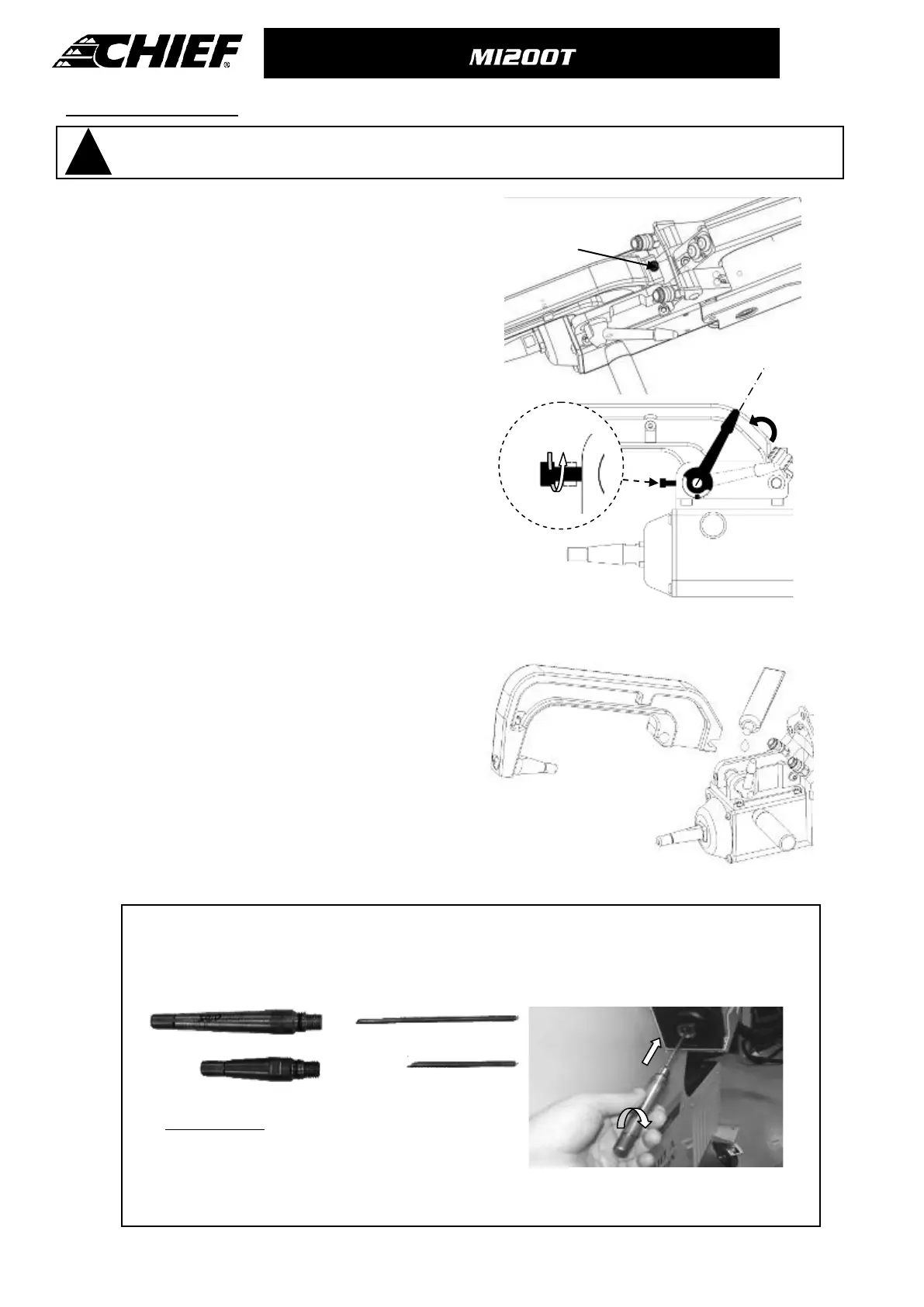

Replacement of C arms
Please read the following instructions carefully.
Incorrectly tightening or setting the C clamp arms can lead to the arm and clamp overheating and
causing damage. Damage caused by incorrect assembly are not covered under the warranty
Ⓐ
- Switch off the machine, or put the machine into
« clamp setting » mode.
- Unscrew screw (1) which holds the arm to the clamp.
Leave it on the arm to not lose it
Ⓑ
- Disconnect the cooling liquid pipes.
- Unscrew screw (2)
and loosen the lever (3) on the side
of the clamp.
Ⓒ
- Remove the clamp arm.
- Lubricate both a new arm and the support with contact
grease (ref.CEL050440).
Specific Installation for C2 and C8 arms
For these arms, the Stretches will also need to be changed. Unscrew the short stretches with a flat
spanner and remove the injector. Centre the injector along the axle of the clamp (Caution: beveled side
outside) and insert it manually(1)
Position the long stretches in front and screw it on to the clamp axle (maximum torque 15Nm) (2).

60°


!
