Adjustment of C arms
Ⓓ
- Position screw (4) to fix the arm on the
clamp. Tighten it in manually - do not overtighten.
- Tighten ring
(5) manually, then the tighten
(6) using the Allen key.
Ⓔ

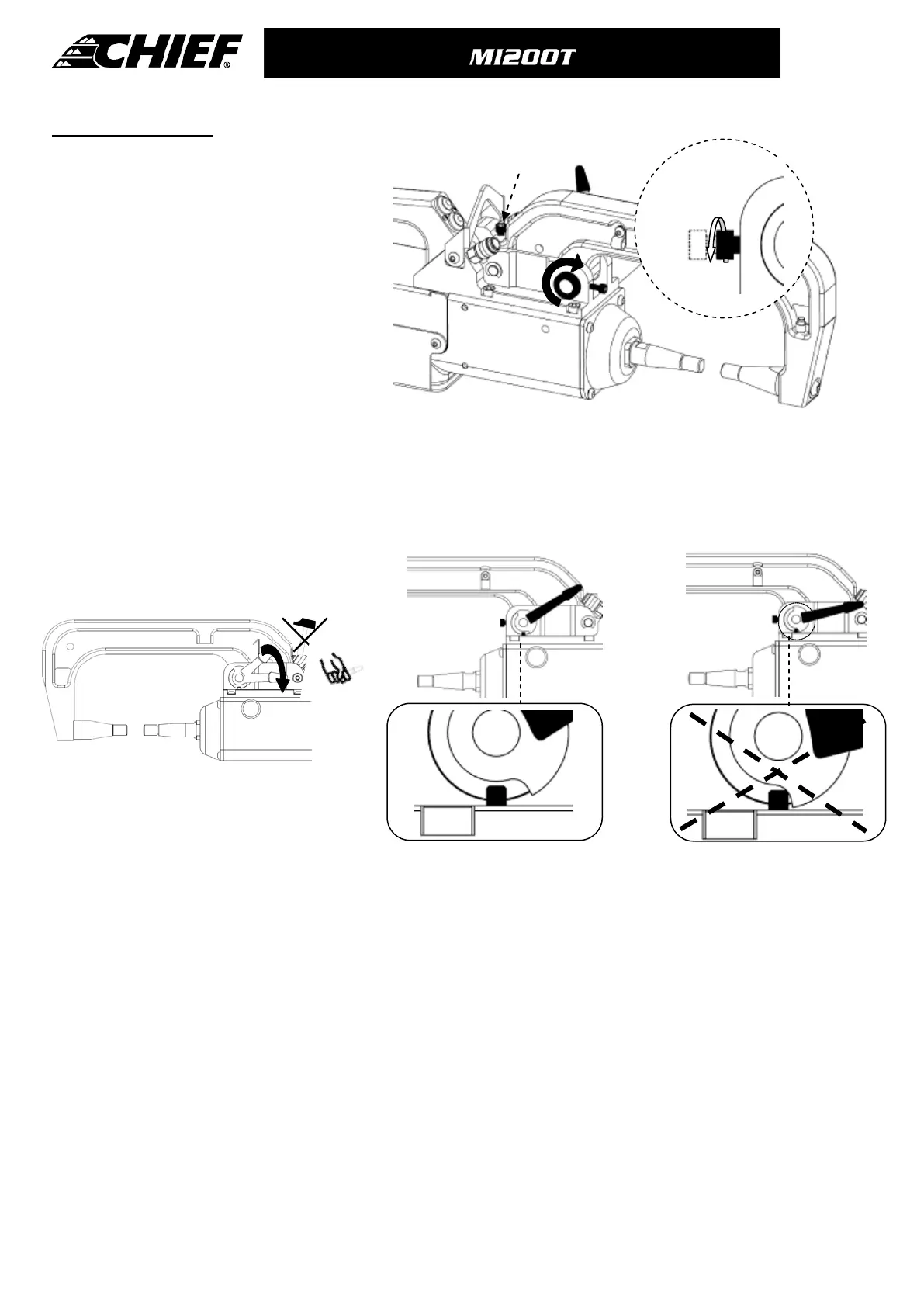

- Tighten the lever manually and check it is not end up against the joint stop (see diagram below).
If it is the case go back to step
Ⓓ.
Warning: Clamp and arm may be damaged if the lever is not tightened properly.
Ⓕ
- Check the cooling liquid level.
- Check screws and lever, incorrectly tightening can damage the material.
- Switch on the machine.
