R410A50Hz Universal Outdoor Series Technical Manual Floor & Ceiling Indoor Unit
112
GD Chigo Heating & Ventilation Equipment Co., Ltd.

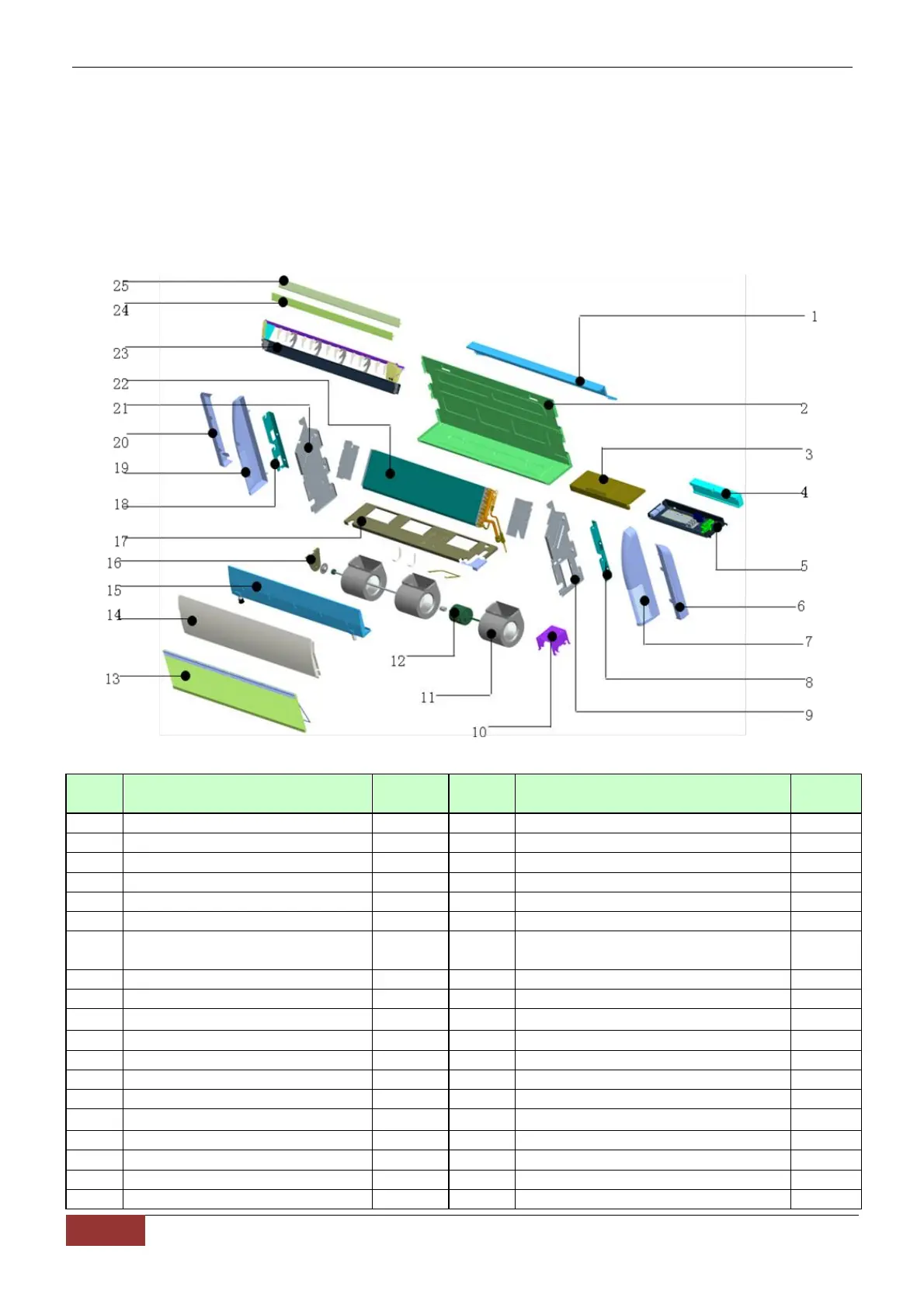

9.2 CUA-24HR1, CUA-36HR1
No.
Part Name
Quantity
No.
Part Name
Quantit
y
1
Rear cover
1
20
Right sealplate
1
2
Chassis assembly
1
21
Right separating board
1
3
E-part box cover
1
22
Evaporator component
1
4
E-part box mat
1
22.1
Left mounting plate of evaporator
1
5
Indoor PCB assembly
1
22.2
Shunt capillary assembly
1
5.1
E-part box
1
22.3
Distributor
1
5.2
Indoor PCB
1
22.4
Air inlet header pipe assembly of
evaporator
1
5.3
Fan capacitor
1
22.5
Single Connector
1
5.4
Transformer
1
22.6
Evaporator assembly
1
5.5
Temperature sensors（indoor )
1
22.7
Right mounting plate of evaporator
1
5.6
Terminal
1
22.8
Temperature sensors (evaporator )
1
6
Left sealplate
1
23
Air-out frame component
1
7
Left cover
1
23.1
Fixing board assembly for air-out frame
1
8
Left hoisting pate
1
23.2
Display film
1
9
Lelf separating board Ⅰ
1
23.3
Display lamp panel
1
10
Motor separating board
1
23.4
Vertical step motor
1
11
Wheel volute for slim type
3
23.5
Horizontal step motor
1
12
Indoor fan motor
1
23.6
End bearing of louver
2
13
Air inlet grille
2
23.7
Intermediate bearing of louver
8
