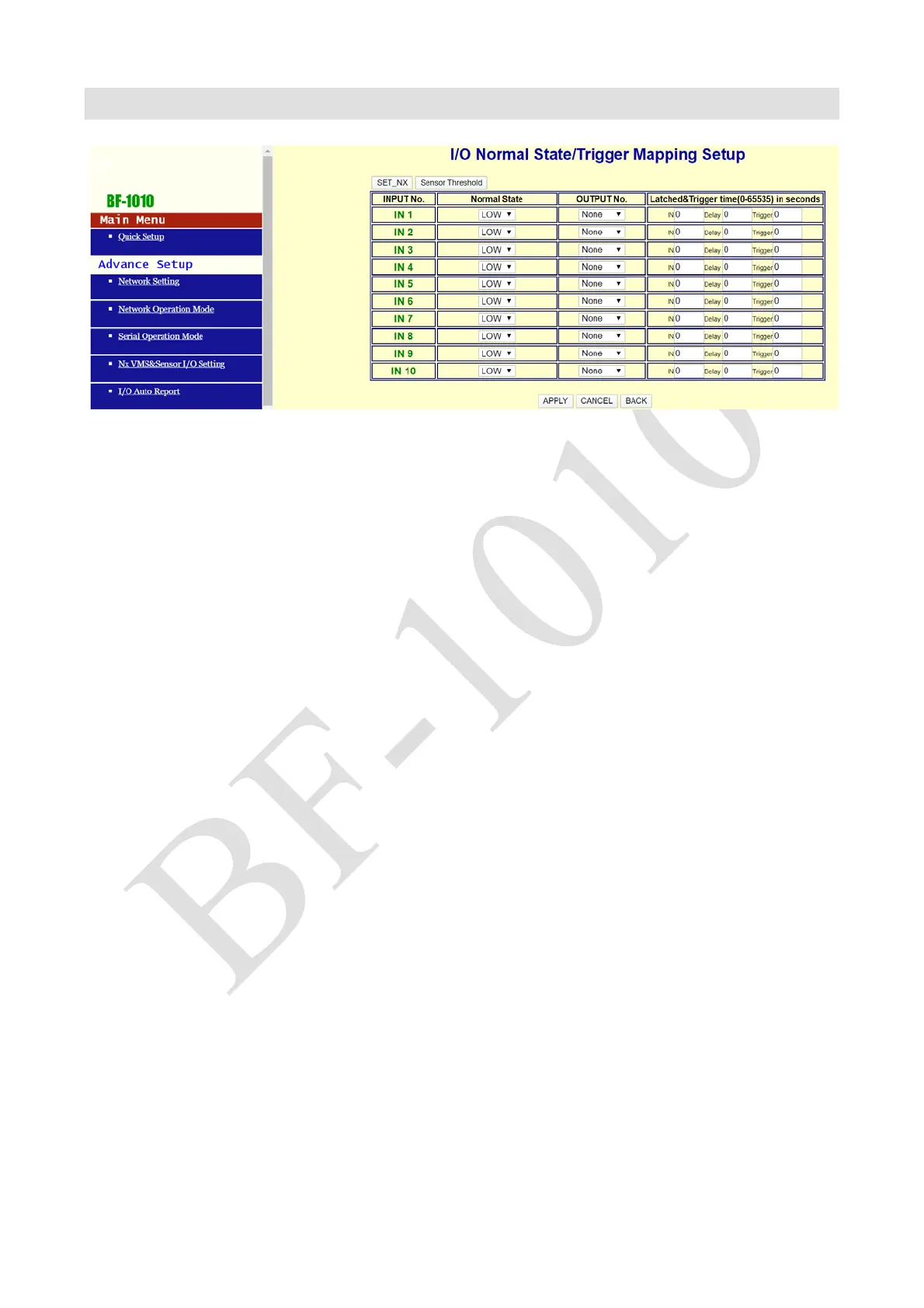

 I/O Normal State/Trigger Mapping Setup
This page can set which OUTPUT to be triggered according to the change of INPUT signal (LOW
and HIGH), and can set the duration of OUTPUT (Latch Time) to determine the length of the relay
trigger , if set to 0, the state of OUTPUT trigger can be released when INPUT status is restored to
normal.
 Function Description
INPUT No. :
It can set from IN1 ~ IN10
The drop-down menu provides two states, LOW and HIGH, which can be selected, the DEFULT is
LOW
OUTPUT No. :
In the drop-down menu, provide None and OUT 1 ~ OUT 10 can be selected, the default is None.
Trigger seconds when abnormal:
Set the duration of OUTPUT trigger, the setting range is 0 ~ 65535 seconds. the default is 0 seconds.
Once set to 0 seconds, once OUTPUT is triggered, it must wait until the state of IN becomes normal,
the triggered state will be released
