BF-1010 Instruction
－
Ⅰ
、
Hardware Introduction

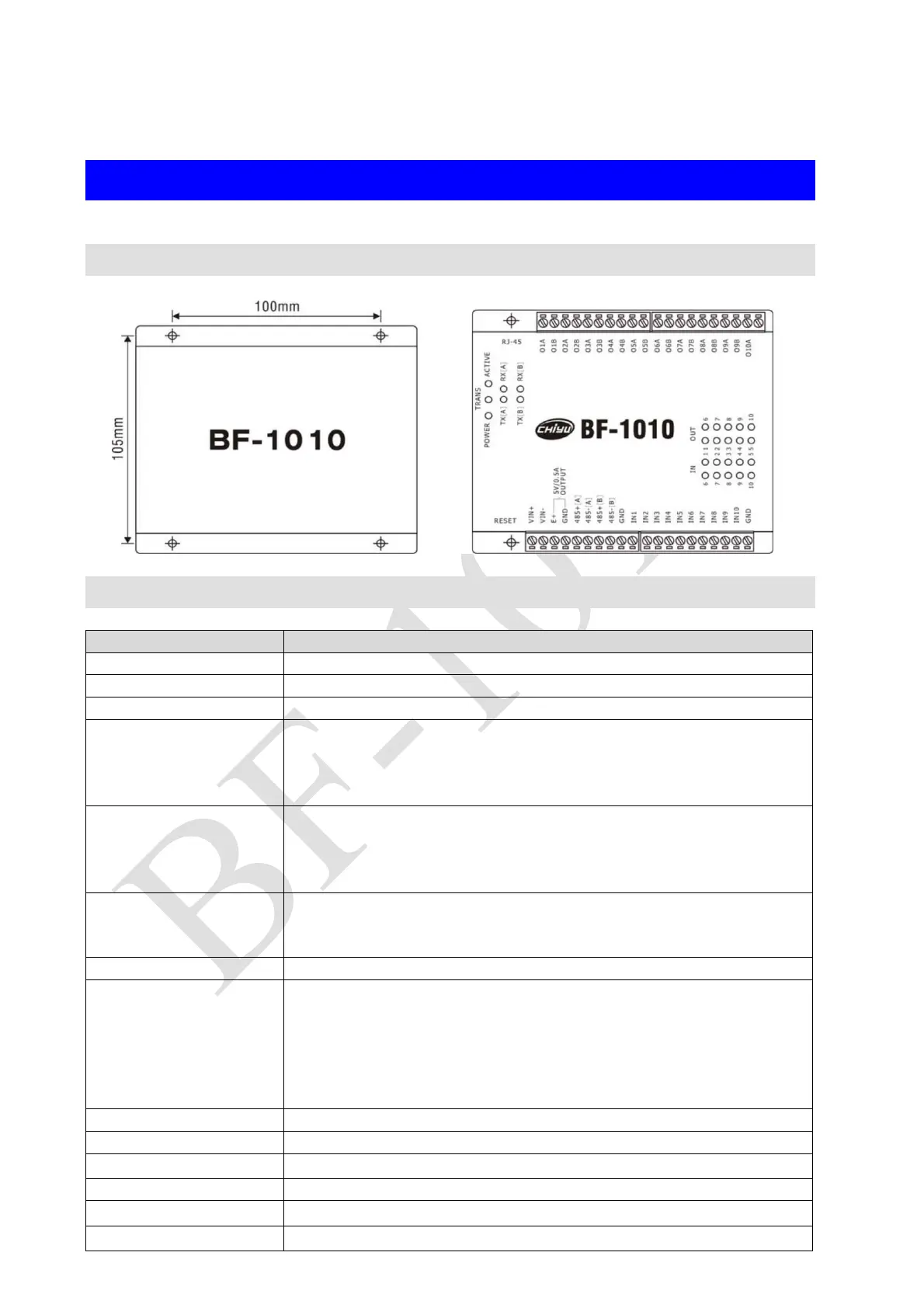

 Appearance
 Specifications
N
ame Specifications
CPU 16 Bits, 100MHZ
Memory 512KB Flash & 1MB SDRAM
Setting interface Web management interface
Input point 1. 10 groups of digital input points
2. Interconnection via terminal block
3. Photocoupler isolation: 2,500V (DC)
4. Voltage overload protection: 70V (DC)
Output point 1. 10 sets of digital output points
2. Use terminal block to interface;
3. Photocoupler isolation: 2,500V (DC)
4. Built-in relay (made in Japan): DC30V, 1A
Web interface 1. 1 RJ-45 ports
2. 10 / 100Base-T full / half duplex support
3. Automatic jumper detection
RS-485 interface 1. 2 groups of RS-485 / 2. Connect with terminal block
LED display 1. Power status light
2. Network status light
3. 2 groups of RS-485 status lights
4. 10 groups of digital input status status lights
5. 10 sets of digital output status lights
6. Extended interface data transmission status lights
Power supply DC 9~24V / 0.5A~1A
ESD
；
Contact Discharge 4KV Air Discharge 8KV
Operating temperature
0℃ ~ 65℃
Operating humidity 5 ~ 95%RH
Storage temperature
-20℃ ~ 85℃
Weight / Dimensions 525 g / 135X115X35 mm
