Multi-Channel Sync Hipot Tester 19020/19020-4/19021/19022/19022-4
Quick Start Guide
connected correctly or falls as the entire UUT may full of high voltage. See
section 3.2.
■ Connecting the test cable to high voltage output terminal
When the RTN/LOW test cable is connected, follow the steps below to
connect the high voltage output cable.
• Press STOP.
• Ensure the DANGER indicator is off.
• Short the test cable of RTN/LOW and high voltage output to make sure
there is no voltage output.
• Plug in the high voltage test cable to high voltage output terminal.
• Last connect the RTN/LOW test cable to the unit under test and then
connect high voltage test cable.
■ End the test
When the test is end or the Tester is not in use or is in use but needs to
leave it unattended for a while, it is necessary to toggle the power switch to
О (i.e. to shut off the power) as described in section 3.1.
■ Do not touch the hazard areas when the Tester is in test mode
When the Tester is in use, touching the object with high voltage such as UUT,
test cable, probe and output terminal is very dangerous.

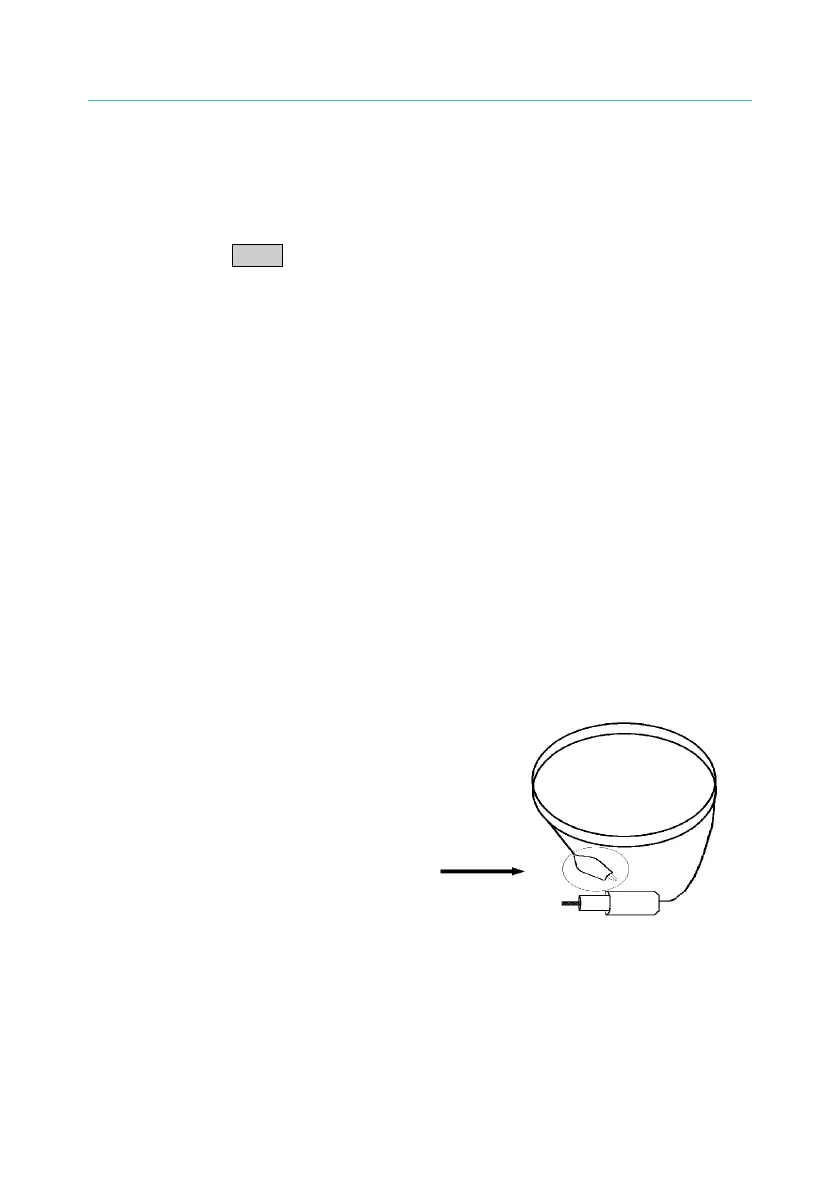

* Do not touch the alligator clip on the test cable as Figure 2-1
shows when the device is in test mode as the rubber
insulation is not enough on the alligator clip and touching it
may cause danger.
3
<<< 警告！當輸出端切斷時 >>>
Do not touch here during high voltage
output.
Fi
ure 2-1
■ Ensure the test is done
Sometimes users might need to touch the high voltage objects such as UUT,
high voltage test cable or output terminal etc. due to configuration or test
required change. In that case, please ensure the following:
•
The power switch is turned off.
• The UUT may full of high voltage when completing the Insulation
