Multi-Channel Sync Hipot Tester 19020/19020-4/19021/19022/19022-4
Quick Start Guide
3. Operation & Settings

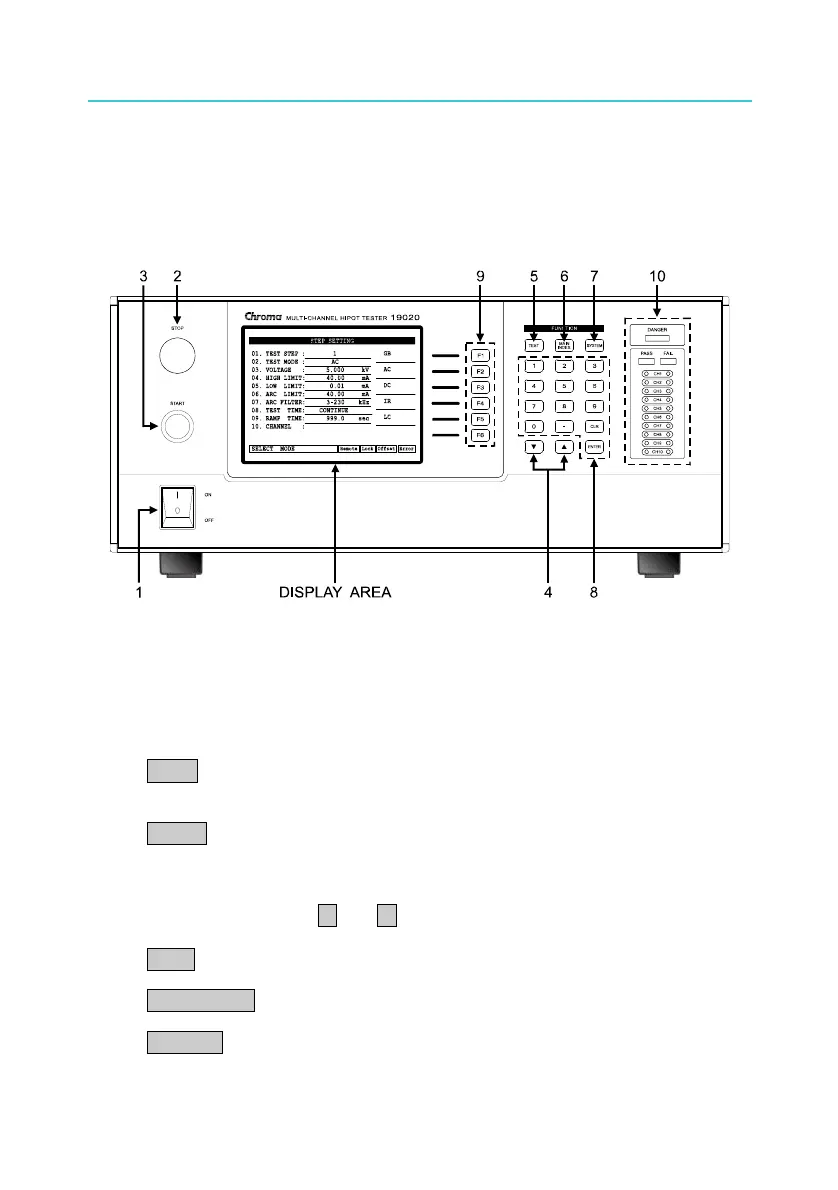

3.1 Front Panel
The front panel is divided into several easy-to-use areas. This section introduces
each control item and the information displayed on LCD.
3.1.1 Buttons
(1) Power Switch:
It is the AC power switch for this Hipot Tester.
Read Chapter 2 Precaution before Use in this guide
carefully before using this switch.
(2) STOP Key:
It is the reset key. When pressed the Hipot Tester
will cutoff output immediately or return to ready-
to-test state and clear all judgments.
(3) START Key:
It is the test activation key. When pressed, the Hipot
Tester is in test state, which means there is output
on test terminal and the judging functions are
activated at the same time.
(4)
Cursor Keys:
▲ and ▼ keys are used to move the reserved
cursor.
(5) TEST Key
Press this key under each major display mode can
return to the “TEST” main screen.
(6) MAIN INDEX Key
Press this key under each major display mode can
return to the “MAIN INDEX” main screen.
(7) SYSTEM Key
Press this key under each major display mode can
return to the “SYSTEM” main screen.
