Wound Component EST Scanner 19035/19035-M/19035-S
Quick Start Guide
inevitable, please install a
power filter.
3. The scanner should be
stored within the temperature
range of -10°C ~ +50°C. If
the unit is not going to be
used for a long time, please
store it in its original box or a
similar package and keep it
from direct sunlight and
humidity.

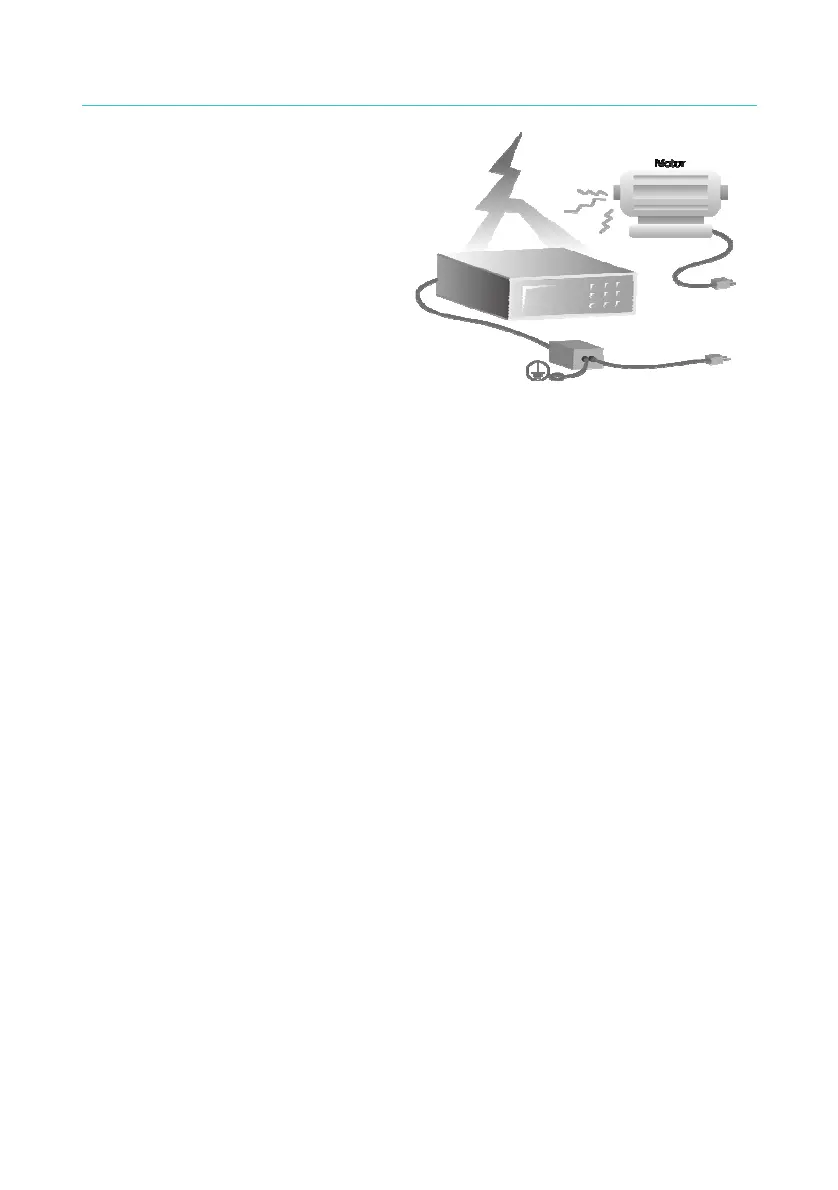

Noise
Power Filter
2. Precautions before Use
The Wound Component EST Scanner can output up to 6kV high voltage for
external test. Accidents may occur or even cause death if using this
Scanner incorrectly or in the wrong way. Thus for safety sake, be sure to
read the precautions in this chapter to avoid any accidents from happening.
1. Electric shock
To prevent the incident of electric shock from occurring, it is suggested
to wear the insulated rubber gloves before using the EST Scanner for
electricity related tasks.
2. Grounding
A safety ground terminal is located at the rear of the Scanner chassis;
please use a proper tool to ensure it is grounded properly. If not it
would be very dangerous when the power circuit or the connection
cable of any device shorts with ground terminal as the chassis may
contain high voltage. Anyone who touches the device in this case
may cause electric shock. Therefore, it is necessary to connect the
safety ground terminal to earth properly as Figure 2-1 shows.
