CIAT CONDENCIAT CL2 - Dimensions

NA 15.15 B EN - 4
11 - DIMENSIONS

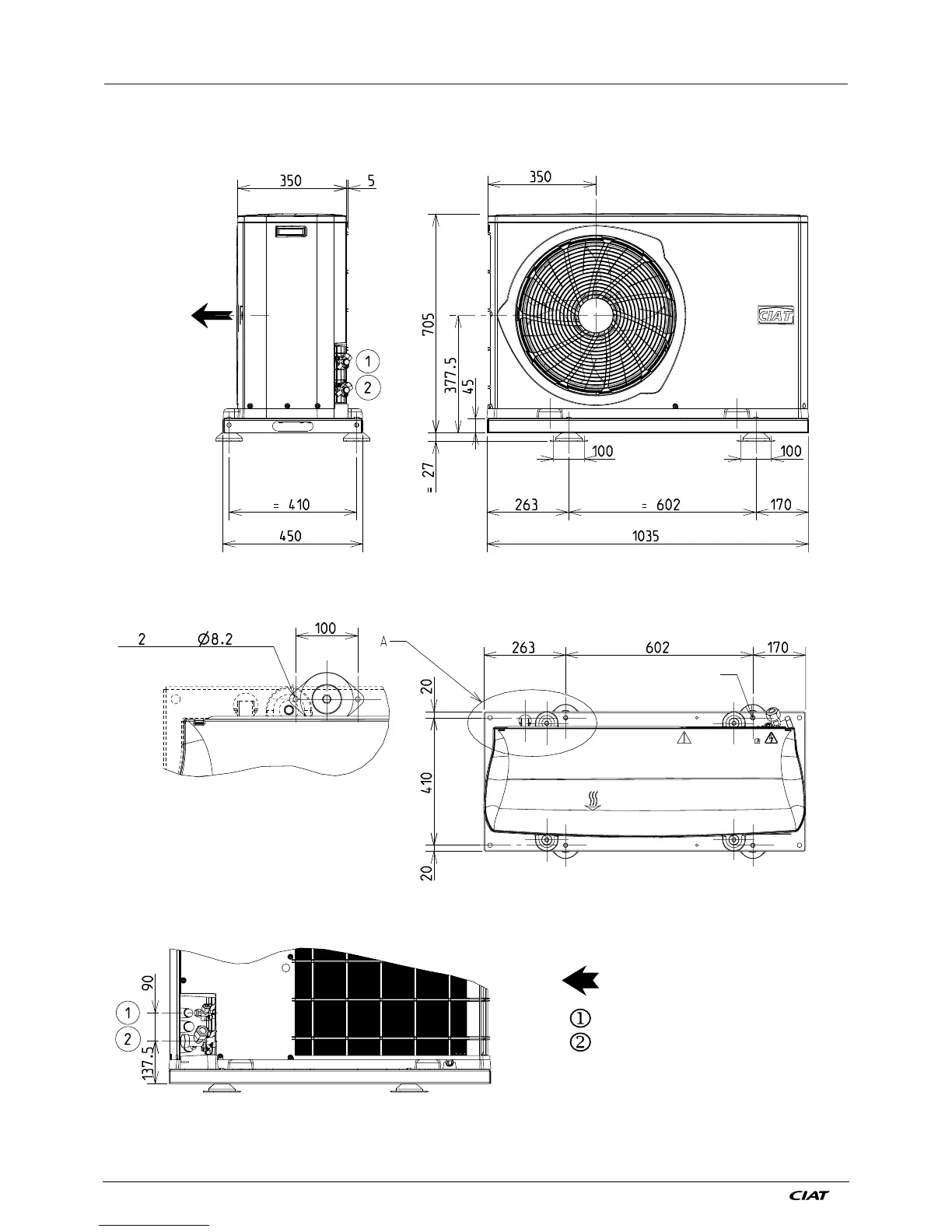

Condenciat Models CL2 28 and 35
External air flow
LIQUID Line
SUCTION Gas Line
Anti-vibration
mount spacing
holes
for fixing the
mounts to the floor
Detail A
Position of holes for fixing
the anti-vibration mounts to
the floor
Four fixing points
(HM8 x 55 screws)
Option Anti-
vibration mounts
Anti-vibration
mount spacing
