CIAT CONDENCIAT CL2 - Installation Guidelines

NA 15.15 B EN - 6
12 - INSTALLATION
200 mm
200 mm

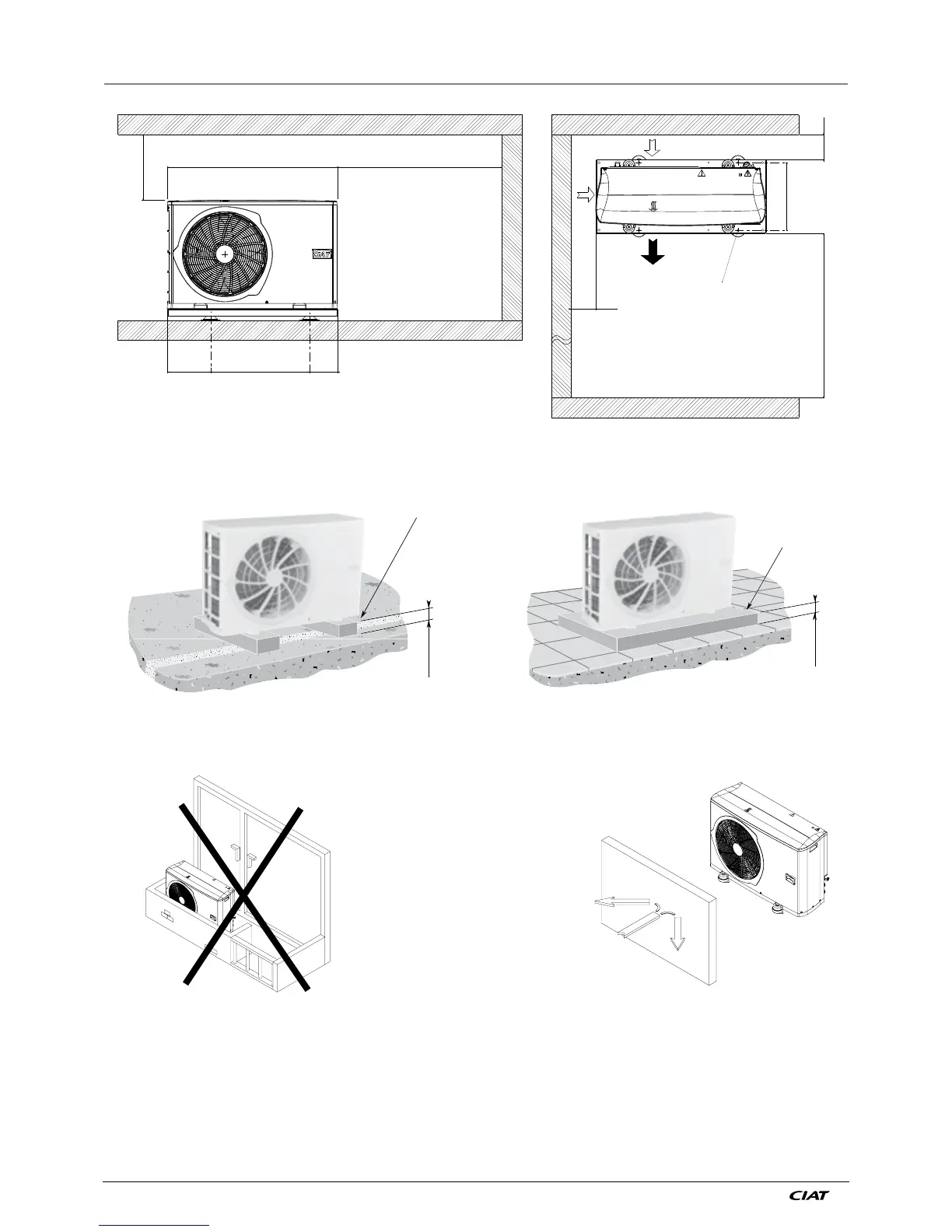

There must be no obstacles preventing free air circulation around the air heat exchanger.
Follow the minimum distances given above.
Avoid prevailing winds.
Installation on loose ground Installation on a concrete basement
Concrete pedestals
Minimum
4 mounting points
(M8 screws)
Minimum
Min.
Min.
Min.
Concrete pedestal
400
1035 1000
263 602 170
150
1501500
410
