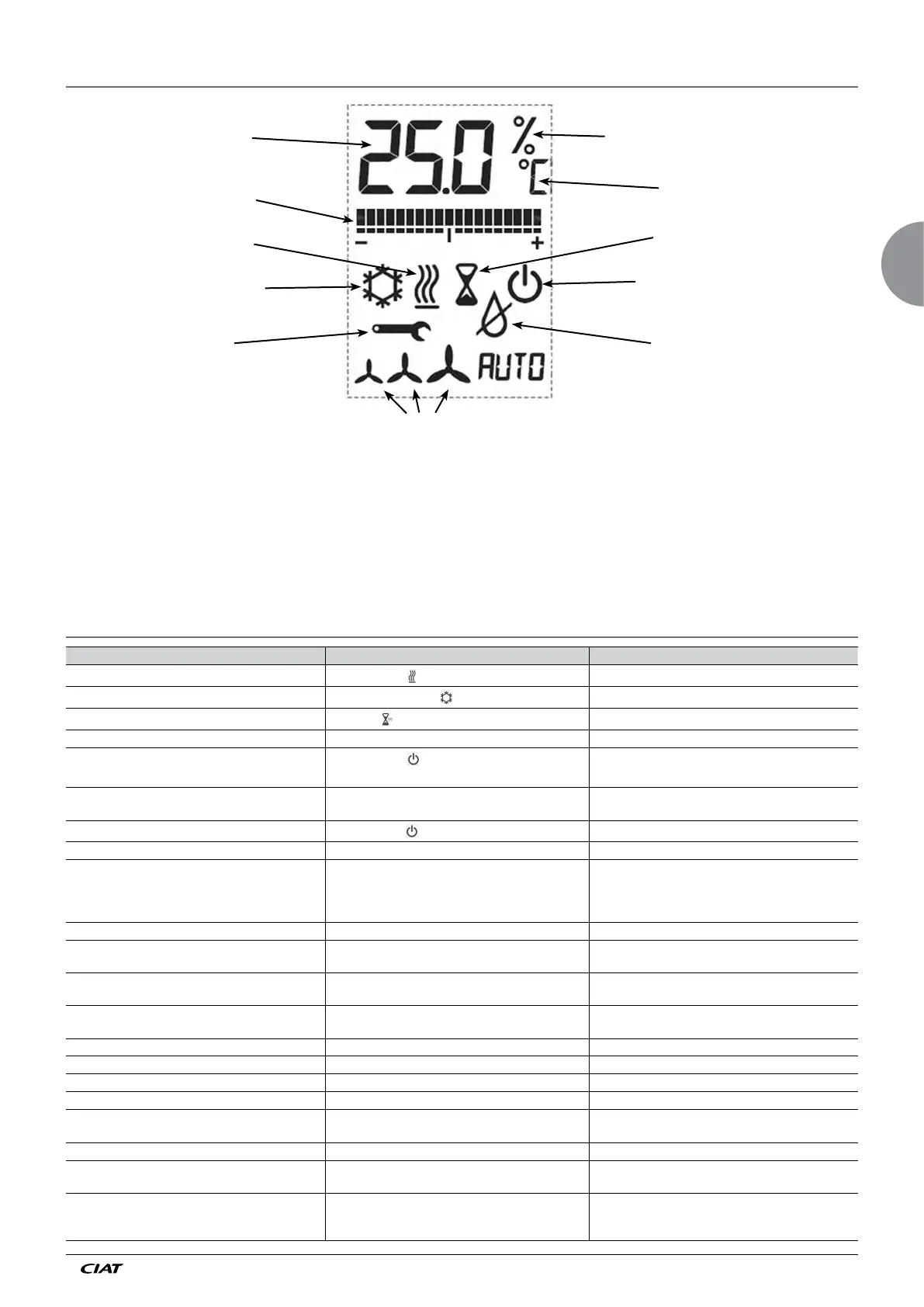

2 - CLOSE-UP OF DISPLAY TERMINAL SCREENS
Display of temperature measured in
room
Bar graph of setpoint offset
Heating active
Cooling active
Alarm:
Flashing spanner= Alarm switches off the unit
Fixed spanner = Alarm does not switch off the
unit
Displays the parameter values in % from the
controller set-up menu
Temperature unit
Delayed comfort mode
Off for Economy/Standby/or
Frost protection modes,
depending on set-up
Dehumidification mode
or
Condensate pump fault if flashing
3 manual ventilation speeds +
Automatic position
Special display:
---:
Stop on window contact
Fro:
Stop on Frost protection device
Cnf:
KNX Configuration Menu
Add
x
:
Controller performing automatic Master/Slave configuration
Lrn:
Controller in Configuration mode on a KNX bus (Learning mode for ETS)
del:
Controller performing automatic Master/slave deconfiguration
e
Err:
Error occurred during Master/Slave configuration
3 - MEANING OF SYMBOLS
Symbols Display version Dial version
Heating
Heating symbol
fixed
Heating LED fixed
Refrigeration
Air conditioning symbol
fixed
Air conditioning LED fixed
Delayed comfort
Hourglass
+ ventilation status
One ventilation LED lit (according to user
Comfort not delayed Ventilation only status
Reduced (Standby, eco, frost protection) set via KNX
or standby button on terminal
Standby symbol
No ventilation indication
All ventilation LEDs off
Frost protection by window contact Three dashes "---" in place of temperature
No ventilation indication
All ventilation LEDs off
Standby or eco by presence contact or clock contact
Standby symbol
No ventilation indication
All ventilation LEDs off
Setpoint adjustment Depends on set-up
Ventilation 1, 2 or 3 ventilation symbols displayed simultaneously
to indicate LS, MS or HS.
If auto is selected, the AUTO symbol appears in
addition to the ventilation symbols
If AUTO selected, the LED for current speed is lit.
If AUTO is off, the speed indicator gives the manual
speed selected.
Dehumidification function Fixed water drop Air conditioning LED flashing
Indoor environment sensor fault if indoor environment
sensor assigned priority
Adjustable spanner fixed No particular indication
Return sensor fault if return sensor assigned priority Adjustable spanner fixed No particular indication
Simultaneous fault on indoor environment and return
sensors
Adjustable spanner flashing Heating + air conditioning LEDs flashing simultaneously
Safety sensor fault, “anti-condensation” Adjustable spanner flashing Heating + air conditioning LEDs flashing simultaneously
Condensate drain pump alarm Flashing water drop Heating + air conditioning LEDs flashing simultaneously
Fan unit motor assembly alarm Adjustable spanner flashing Heating + air conditioning LEDs flashing simultaneously
General alarm Adjustable spanner flashing Heating + air conditioning LEDs flashing simultaneously
Frost protection alarm in fresh air application
(antifreeze thermostat)
Letters "Fro" in place of temperature Heating + air conditioning LEDs flashing simultaneously
Filter needs replacing Adjustable spanner fixed No particular indication
Device designated as Master or Slave (P00 ≠ 0 ) but
has not yet been configured
Adjustable spanner flashing Heating + air conditioning LEDs flashing simultaneously
Generally speaking:
Alarm not disabling V3000 operation
Alarm stopping V3000 operation
Adjustable spanner fixed
Adjustable spanner flashing
No particular indication
Heating + air conditioning LEDs flashing simultaneously
EN
EN - 3 EN7515935-00
