TIG (GTAW) Welding 7-4 0-5492
NOTE!
If the TIG torch has a trigger switch or a remote TIG torch current control tted then it will require to be connected to the 8
pin socket. (Refer to section 4.02.12 Remote Control Socket for further information)..
Art # A-13440
240VAC
10A
Mains Supply
Negative Welding Terminal (-)
TIG Torch
Positive Welding Terminal (+)
Mig Torch Polarity Lead not connected
Work Lead
Shielding Gas Cylinder
Shielding Gas Regulator/Flowmeter

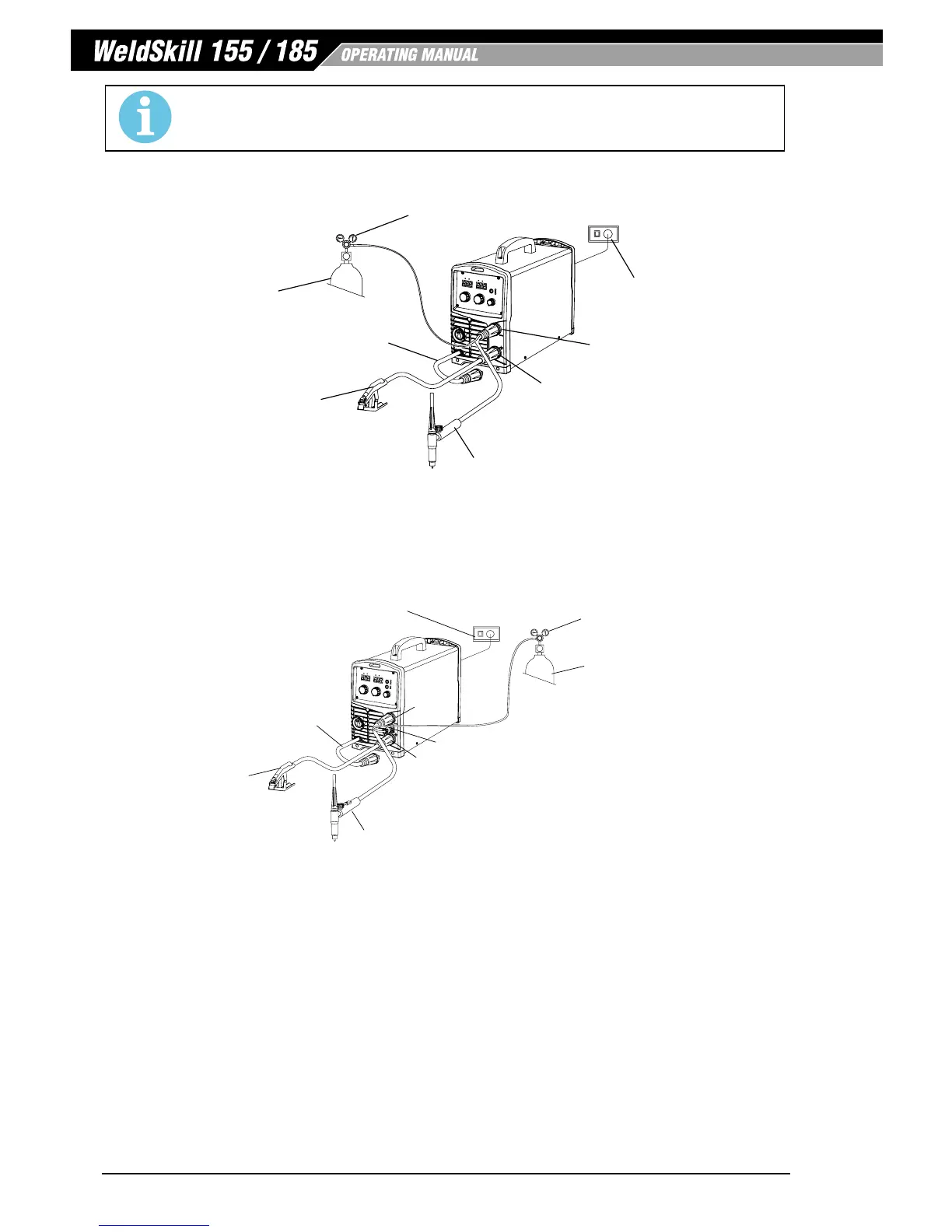

Figure 7-3: Setup For Lift TIG (GTAW) Welding for WeldSkill 155
Art # A-13439
240VAC 10A
Mains Supply
Negative Welding
Terminal (-)
TIG Torch
Positive Welding Terminal (+)
Mig Torch Polarity Lead not connected
Work Lead
Shielding Gas Cylinder
Shielding Gas Regulator/Flowmeter
8 Pin Socket
Figure 7-4: Setup For Lift TIG (GTAW) Welding for WeldSkill 185
